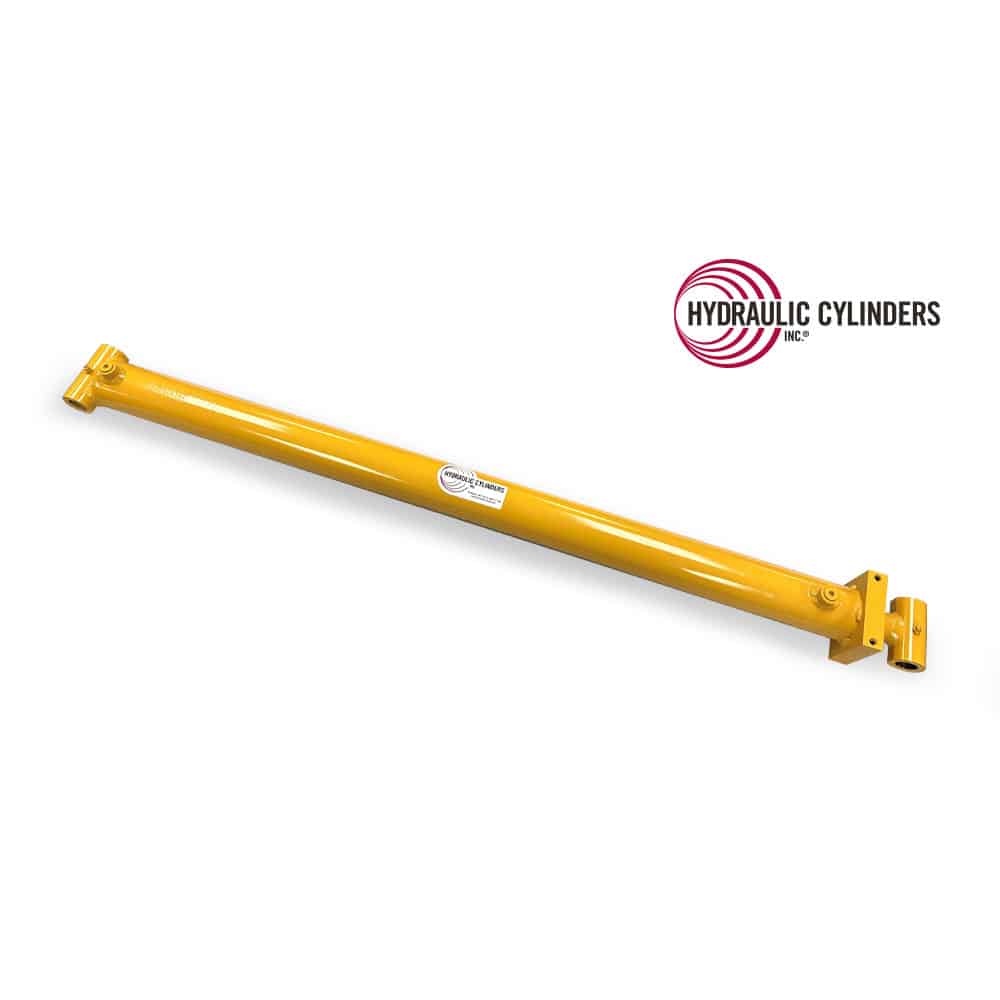

Replacement Hydraulic Stakedown Cylinder for Vermeer (PN: 296358164) Horizontal Direction Drill Models D20x22, D24x40, D24x40, D60x90
$1,070.00
Specifications for 2210277446
| SKU | 2210277446 |
|---|---|
| Weight | 58.0 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 40.00″ |
| Closed | 48.00″ |
| Open Extended Length | 88.00″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 1.00″ |
| Base Mount Width | 3.90″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 3.40″ |
| Extend Port/Plunger | -6 JIC |
| Retract Port/Plunger | -6 JIC |
Description
This replacement stakedown cylinder (PN: 296358164) fits several Vermeer horizontal directional drills, including the D20x22 Series II Navigator, D24x40 Series II Navigator, D24x40 S3 Navigator HDD, and D60x90 Navigator. These machines are used in trenchless utility work such as fiber, gas, and water line installation. The cylinder supports both large aggressive and rotary stakedown functions depending on the unit, helping secure the drill during operation. It meets or exceeds OEM specifications and is designed for direct compatibility with the original system.
2.50″
1.50″
40.00″
48.00″
88.00″
3000
Cross-Tube
1.00″
3.90″
Cross-Tube
1.00″
3.40″
-6 JIC
-6 JIC
