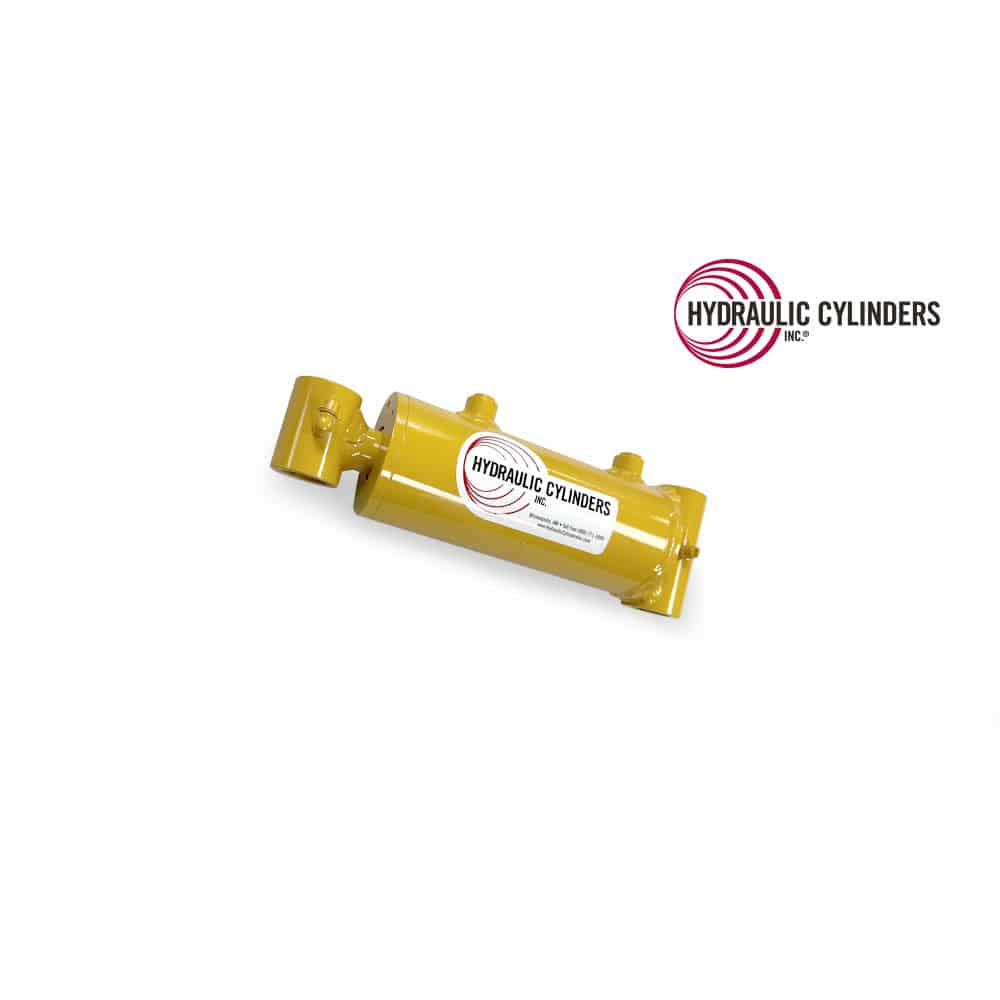

Replacement Hydraulic Rotation Cylinder for Vermeer (PN: 296325759) Horizontal Directional Drill Model D24x40 S3 Navigator
$825.00
Specifications for 2209877179
| Category | Replacement Welded Rod Hydraulic Cylinders » Other » Horizontal Directional Drill |
|---|---|
| Fits Manufacturer | Vermeer Corp |
| Model | Vermeer Corp D24x40 S3 Navigator HDD |
| Function | Vise Rotation |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 2209877179 |
|---|---|
| Weight | 13.0 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.00″ |
| Stroke | 3.00″ |
| Closed | 9.25″ |
| Open Extended Length | 12.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 1.00″ |
| Base Mount Width | 3.25″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 2.00″ |
| Extend Port/Plunger | -4 SAE ORB |
| Retract Port/Plunger | -4 SAE ORB |
Description
This replacement vise rotation cylinder (PN: 296325759) is designed for the Vermeer D24x40 S3 Navigator HDD, a horizontal directional drill commonly used for utility installations in tight urban or suburban job sites. The cylinder controls the rotational movement of the vise system, which secures and turns drill rods during operation. Built to meet or exceed OEM specifications, this component ensures consistent performance and reliable rod handling throughout the drilling process.
2.50″
1.00″
3.00″
9.25″
12.25″
3000
Cross-Tube
1.00″
3.25″
Cross-Tube
1.00″
2.00″
-4 SAE ORB
-4 SAE ORB
