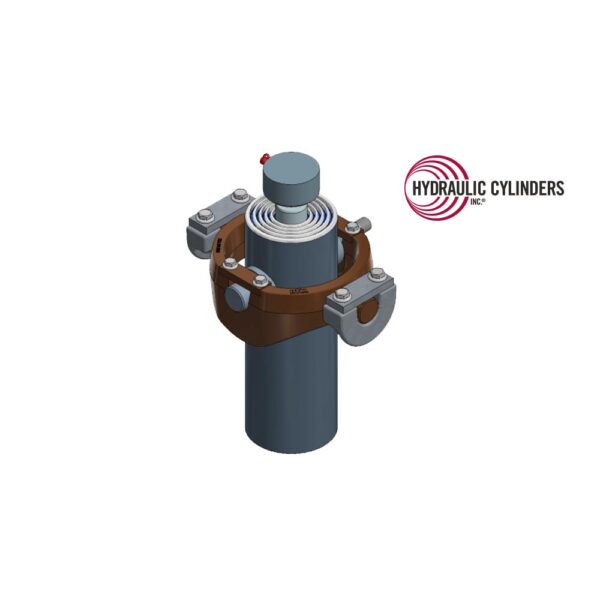

71418297 (Hyva) Replacement SAT Underbody Dump Hoist Cylinder

  • 71437691 (Hyva) Replacement SAT Underbody Dump Hoist Cylinder

SKUULB 110-5-1040-K169-40-1/2-HC
CategoriesReplacement Telescopic Hydraulic Cylinders, Single-Acting Telescopic Cylinders, Trunnion Cylinders
ManufacturerMiscellaneous Manufacturers
FunctionDump Hoist / Body Raise / Tipping
TypeUnderbody Dump

71418297 (Hyva) Replacement SAT Underbody Dump Hoist Cylinder Product Data

Weight76 lbs
Base End Mount Type

Trunnion

Closed

15.95″

Open Extended Length

56.89″

Rod End Mount Type

Ball Mount

Tele Largest Stage OD

110 mm (4.33)”

Telescopic Number of Stages

5

Telescopic Stroke

1040 mm (40.94)”

Trunnion Closed

6.65

Trunnion Open

47.60

Trunnion Pin Dia

1.57

Trunnion Pin Length

1.57

Trunnion Width

9.06

Description

The following cylinders are compatible replacements for replacement part number ULB 110-5-1040-K169-40-1/2-HC.

Reference Part NumberHCI Part NumberReference NameEquipment ManufacturerEquipment ModelEquipment TypeIndustryReplacement NameCylinder TypeCylinder Function
71418297ULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
71418297ULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
ULB 110-5-1040-K169-40-1/2″-HCULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
ULB 110-5-1040-K169-40-1/2″-HCULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
ULB 110-5-1040-K169-40-1/2-HCULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
ULB 110-5-1040-K169-40-1/2-HCULB 110-5-1040-K169-40-1/2-HCHyvaMiscellaneous ManufacturersDumpTruck EquipmentHyvaSATUnderbody Dump Hoist
