Custom-made telescopic cylinders deliver the strength and durability needed for optimal performance in mobile applications that require long working strokes in a retracted length. Built to your equipment’s specifications, custom telescopic cylinders supplied by HCI are designed to tolerate precise speed and force requirements, providing efficiency, stability, and reliability for your fleet.

Ready to get started? Fill out our custom hydraulic telescoping cylinder request form, or contact us with any questions. A highly trained and knowledgeable member of our team will be in touch to begin your order.

HCI Delivers Your Best Custom-Made Telescopic Cylinders

Whether you’re looking for low-maintenance custom single-acting telescopic cylinders or need precision double-acting telescopic cylinders built to your specifications, HCI has you covered. We will discuss your machinery’s parameters, establish your goals, and design, engineer, and deliver the exact custom telescopic cylinders you require.

Our design team is comprised of hydraulic engineers and certified technicians dedicated to creating flexible and durable custom telescopic cylinders that can tolerate high pressures, rugged environments, and more. Call 888-771-1894 to speak with a representative directly about your options.

Custom Telescopic Hydraulic Cylinder Capabilities

  • Maximum diameter size up to 12”
  • Minimum stage size down to ¾”
  • Single- and double-acting telescopic types
  • Hydraulic pressures up to 2,000 psi
  • Special applications up to 3,000 psi
  • Up to 5 stages available

Common Mounting Options

  • Clevis
  • Clevis-threaded
  • Cross tube
  • Drill thru based mount
  • Drill thru rod end
  • Flange
  • Foot (Light-Duty)
  • Foot (Heavy-Duty)
  • Lug
  • Spherical base end
  • Spherical rod end
  • Threaded base (Female)
  • Threaded base (Male)
  • Threaded rod end (Female)
  • Threaded rod end (Male)
  • Trunnion

Design Considerations for Custom Telescopic Hydraulic Cylinders

Many design considerations go into manufacturing a custom hydraulic telescoping cylinder, so we created a comprehensive Guide to Buying Telescopic Cylinders to simplify your purchasing process. Here, we break down the most pressing factors that impact engineering custom cylinders, including:

  • When to choose a custom option vs. a standard telescopic
  • The difference between single-acting and double-acting models
  • How to determine the right hydraulic cylinder design for your equipment
  • And much more!


Custom Telescopic Cylinder Parts & Components

Custom Telescopic Hydraulic Cylinders

How to Measure a Hydraulic Cylinder

This video presents a quick and easy guide for understanding how to measure various components on your hydraulic cylinder to ensure your custom order matches every specification. Learn how to measure bore, rod, and stroke dimensions, along with open and closed length, mounts, and ports.

Create Your Custom Hydraulic Telescoping Cylinder Today

As your full-line hydraulic cylinder replacement supplier, Hydraulic Cylinders, Inc. is ready to deliver fully custom hydraulic telescoping cylinder solutions designed to your specifications. Our engineers and network of certified welders and machinists look forward to working with you to build your next custom-made hydraulic cylinder. Our library of resources—including blog posts, cylinder calculation app, and more—is at your disposal to make your ordering process as fast and stress-free as possible.

Contact us or fill out our custom telescopic hydraulic cylinder request form, included below, today.

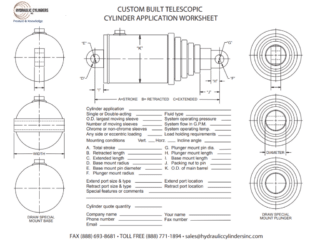

Custom Telescopic Hydraulic Cylinder Request Form

  • Your Information

  • Basic Cylinder Information

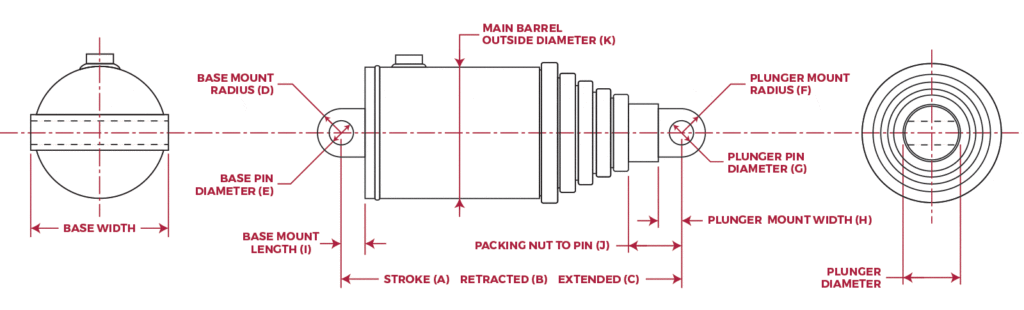

  • Cylinder Dimensions

  • Additional Information
