Standard and Custom Tie-Rod Cylinders

Hydraulic Cylinders, Inc. offers standard tie-rod hydraulic cylinders and made-to-order NFPA hydraulic and pneumatic cylinders for industrial equipment and machinery.

Choose from preconfigured hydraulic cylinders for common applications or custom NFPA designs with specific bore sizes, strokes, mounting styles, and operating requirements.

Our Hydraulic Cylinder Specialists® can help you select the right cylinder, identify a replacement, or configure a custom solution.

HCI Tie-Rod Cylinder FAQs

A tie-rod hydraulic cylinder uses external threaded rods to secure the cylinder end caps to the barrel. This construction provides dependable performance and allows the cylinder to be disassembled for maintenance or repair.

Tie-rod cylinders are commonly used in industrial machinery, manufacturing equipment, and hydraulic power systems. HCI offers both standard tie-rod hydraulic cylinders and custom NFPA tie-rod cylinders to meet different application requirements.

Standard tie-rod hydraulic cylinders are available in predefined bore sizes, strokes, mounting configurations, and pressure ratings. They are a practical choice when an existing configuration meets your equipment requirements.

Custom NFPA tie-rod cylinders are made to order with specific dimensions, mounting styles, and operating features. These cylinders are ideal for OEM equipment, specialized machinery, and replacement applications requiring NFPA dimensional compatibility.

NFPA tie-rod cylinders follow standardized mounting and dimensional guidelines designed to support interchangeability between compatible cylinder models. However, matching NFPA specifications alone does not guarantee a direct replacement.

You should verify bore, stroke, rod diameter, mounting dimensions, port locations, and operating pressure. HCI’s NFPA cylinder configuration guide explains the specifications and options to consider when selecting a replacement.

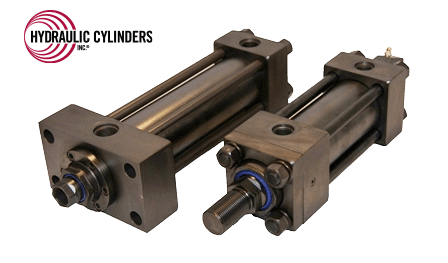

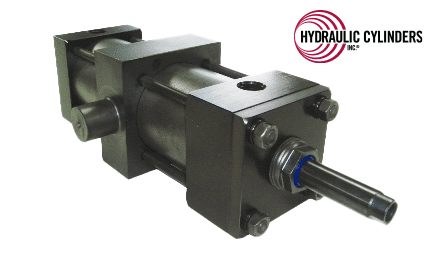

Pressure ratings vary by cylinder type and series. HCI’s custom NFPA Series 5 standard-duty hydraulic cylinders support applications up to 1,000 PSI, depending on bore size. Series 6 heavy-duty hydraulic cylinders feature a nominal pressure rating of 3,000 PSI.

Standard tie-rod cylinders are also available in different pressure ratings. Always verify the selected cylinder’s specifications against your hydraulic system requirements.

Hydraulic tie-rod cylinders use pressurized hydraulic fluid to generate linear force for lifting, pushing, pulling, and positioning heavy loads. Pneumatic tie-rod cylinders use compressed air and are commonly found in automation, packaging, clamping, and repetitive-motion applications.

HCI offers standard hydraulic tie-rod cylinders along with custom NFPA hydraulic and pneumatic cylinders. Learn more about selecting the correct NFPA cylinder for your application.

Yes. HCI can help identify replacement cylinders using an existing manufacturer’s part number, cylinder specifications, or equipment information.

Our Hydraulic Cylinder Specialists® can determine whether a standard tie-rod cylinder meets your requirements or whether a custom NFPA configuration is needed. Review our hydraulic cylinder FAQs for additional information on identifying and measuring replacement cylinders.

Start with the cylinder’s bore diameter, stroke length, rod diameter, operating pressure, mounting style, and port configuration. These specifications help determine whether a standard cylinder will work or a custom design is required.

For custom NFPA applications, additional options may include cushioning, seals, rod ends, and other operating features. Our NFPA tie-rod cylinder configuration guide walks through the selection process.

Yes. HCI offers five custom NFPA tie-rod cylinder series for hydraulic and pneumatic applications.

Select the appropriate series and use the online configuration form to specify bore, stroke, rod size, mounting style, and available options. Once submitted, our Hydraulic Cylinder Specialists® will review your requirements and prepare a quote.

Why Choose HCI for Tie-Rod Cylinders?

Whether you need a standard hydraulic cylinder or a custom NFPA configuration, HCI helps you find the right solution for your equipment.

Our Hydraulic Cylinder Specialists® can assist with product selection, part number cross-referencing, and custom cylinder specifications.

From common replacement applications to specialized industrial requirements, HCI offers the product options and technical support to get your equipment working.
