Description

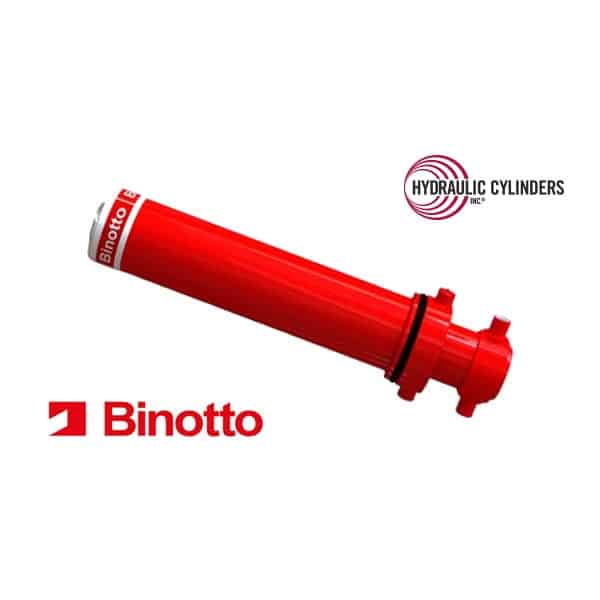

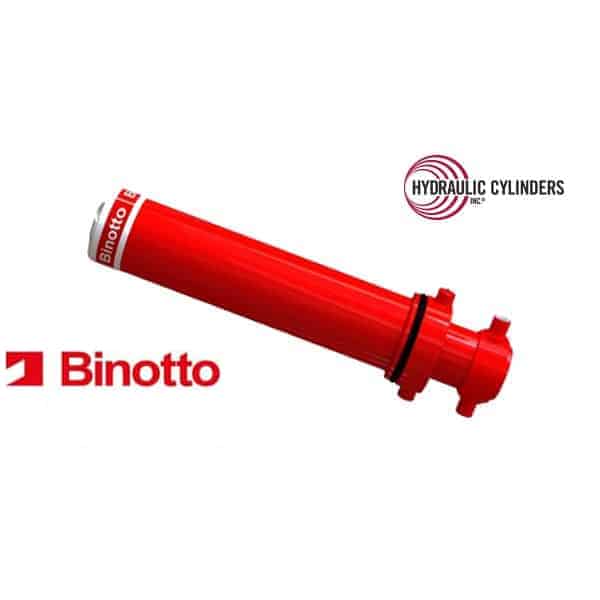

ANT 5.5-3-130 AV01 Binotto SAT Telescopic Cylinder
ANT 5.5-3-130 AV01 Binotto SAT Telescopic Cylinders
Call For Availabilty

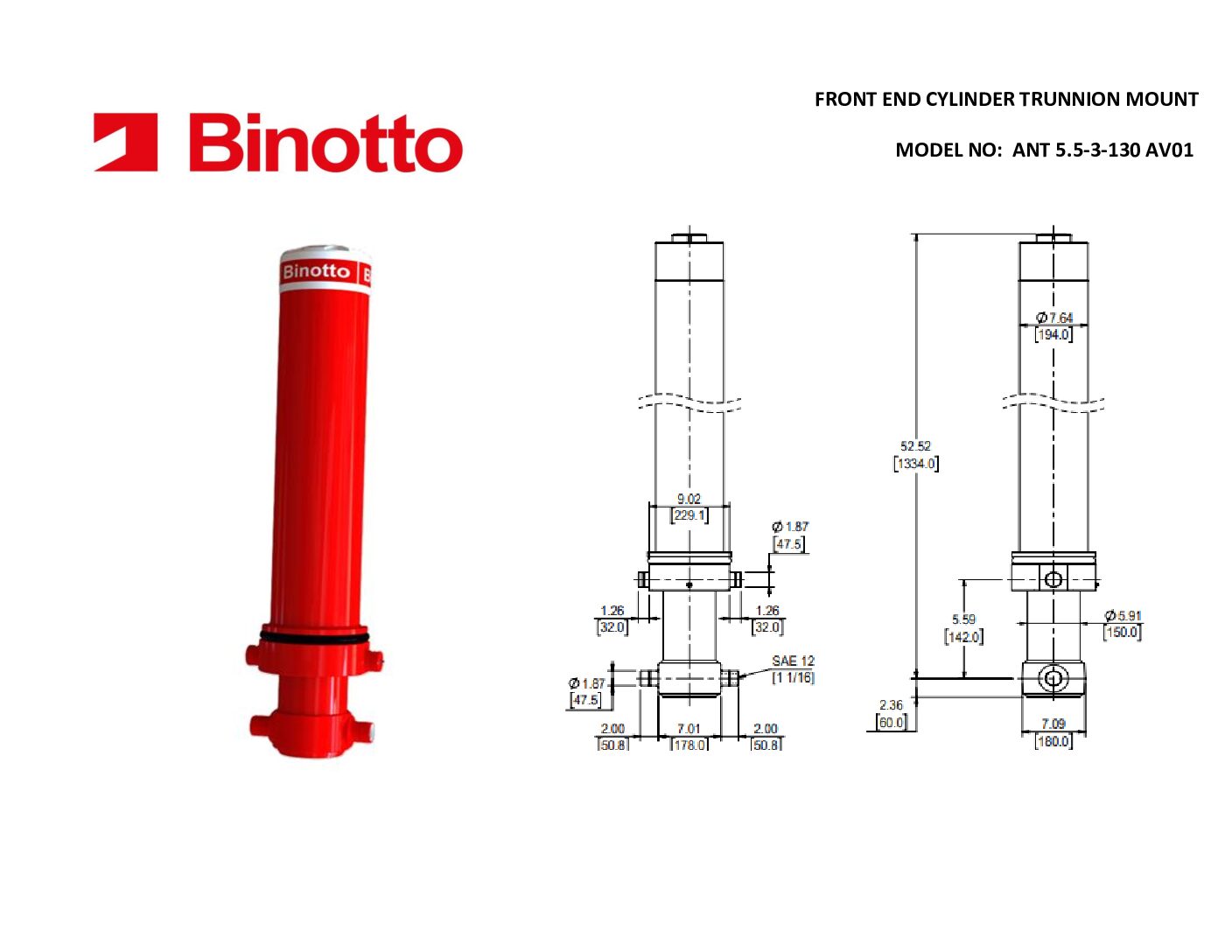

Specifications for ANT 5.5-3-130 AV01
| Category | Replacement Telescopic Hydraulic Cylinders |
|---|---|
| Features | Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT) |
| SKU | ANT 5.5-3-130 AV01 |
|---|---|
| Stroke | 125.39″ |
| Closed | 52.52″ |
| Open Extended Length | 177.91″ |
| Base End Mount Type | Trunnion |
| Rod End Mount Type | Trunnion |
| Trunnion Closed | 5.59 |
| Trunnion Open | 130.98 |
| Trunnion Width | 9.75 |
| Trunnion Pin Dia | 1.87 |
| Trunnion Pin Length | 2.00 |
