Description

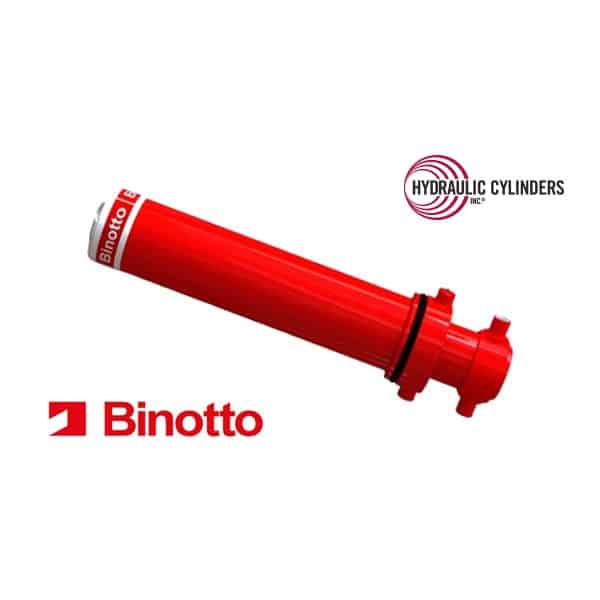

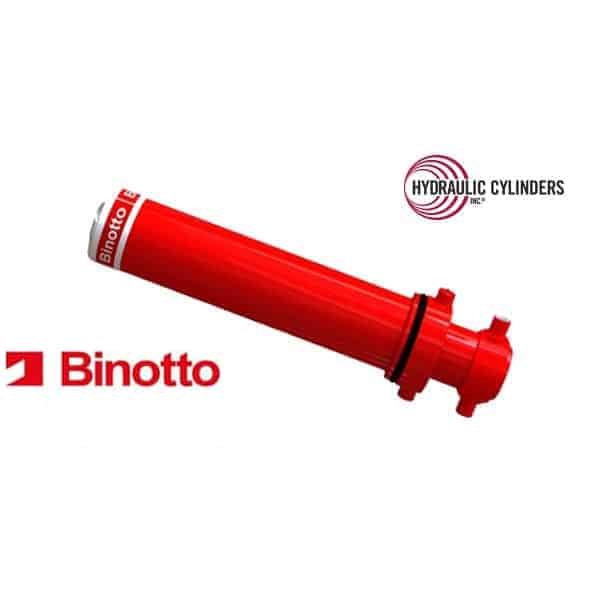

B3C 4.5-3-110-AV01 Binotto SAT Telescopic Cylinder
B3C 4.5-3-110-AV01 Binotto SAT Telescopic Cylinder
Call For Availabilty

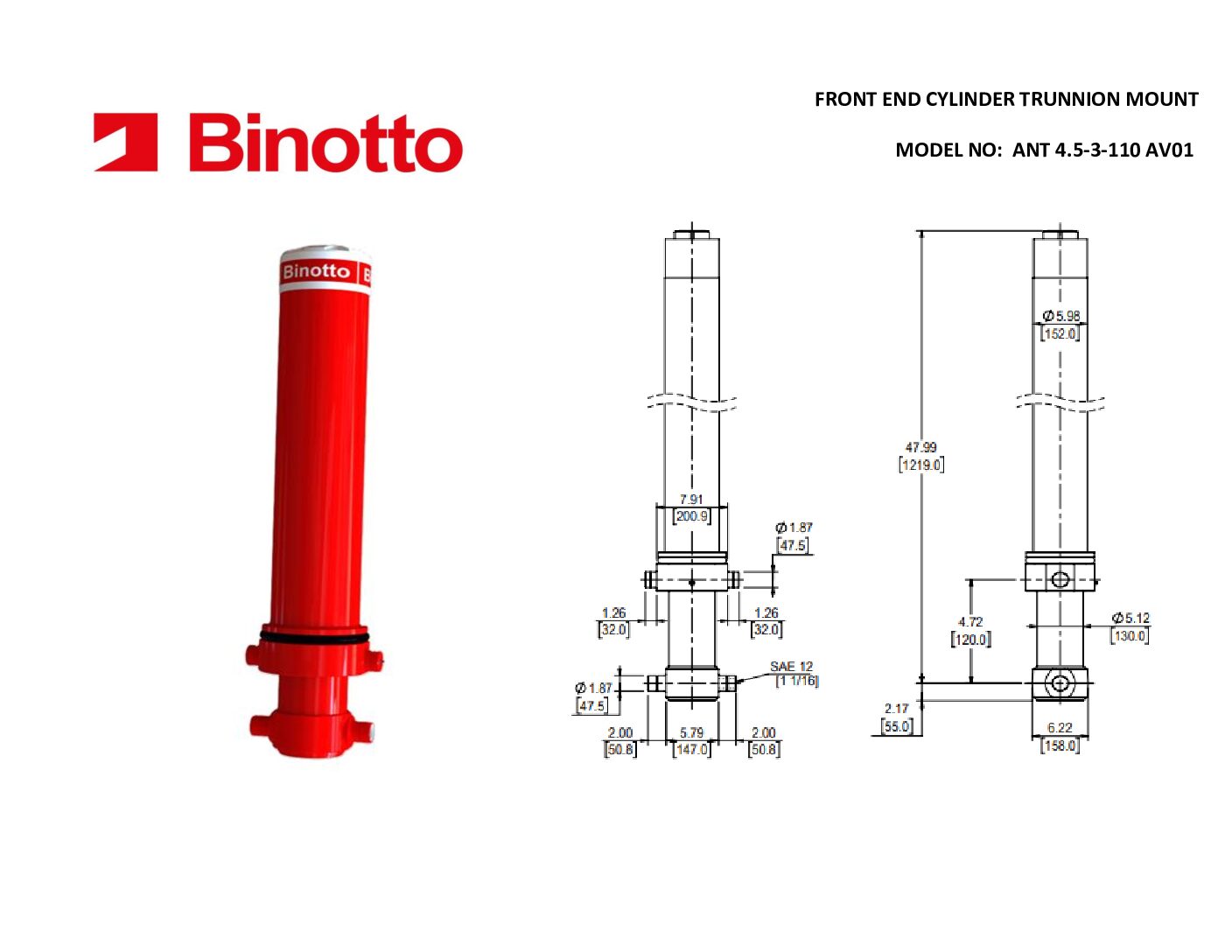

Specifications for B3C 4.5-3-110-AV01
| Category | Replacement Telescopic Hydraulic Cylinders |
|---|
| SKU | B3C 4.5-3-110-AV01 |
|---|---|
| Stroke | 111.65″ |
| Closed | 49.13″ |
| Open Extended Length | 160.78″ |
| Base End Mount Type | Trunnion |
| Rod End Mount Type | Trunnion |
| Trunnion Closed | 5.25 |
| Trunnion Open | 116.90 |
| Trunnion Width | 9.75 |
| Trunnion Pin Dia | 1.87 |
| Trunnion Pin Length | 2.00 |
