70525435 (Hyva) Replacement SAT Dump Hoist Cylinders

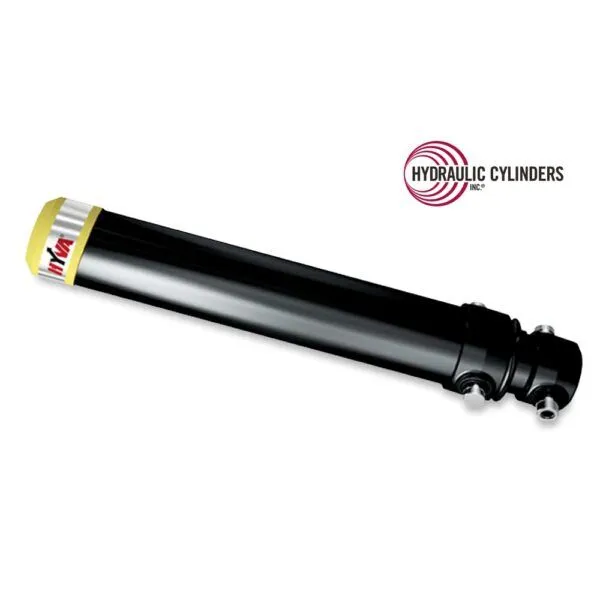

Replacement SAT Dump Hoist Cylinder

Call For Availabilty

Specifications for FC A6.5-5-216-K8-HC

CategoryReplacement Telescopic Hydraulic Cylinders » Dump (Telescopic) » Dump Trucks/Trailers/Hoists
Fits Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC A6.5-5-216-K8-HC
Weight 520 lbs
Base End Mount Type

Trunnion
Closed

57.99″
Extend Port/Plunger

-16 SAE ORB Out Base Trunnion
Open Extended Length

273.69″
Rod End Mount Type

Trunnion
Tele Largest Stage OD

7″
Telescopic Stages

5
Telescopic Stroke

216″
Trunnion Closed

7.62
Trunnion Pin Dia

2.25
Trunnion Pin Length

2
Trunnion Width

11.94

Description

70525433 FC A6.5-5-216-K8-HC Hyva replacement SAT dump hoist cylinders include trunnion mounts for efficient dump hoist, body raise, and tipping functions.

Base End Mount Type:

Trunnion

Closed:

57.99″

Closed (in):

57.99

Extend Port/Plunger:

-16 SAE ORB Out Base Trunnion

Open Extended Length:

273.69″

Open Extended Length (in):

273.69

Rod End Mount Type:

Trunnion

Tele Largest Stage OD:

7″

Tele Largest Stage OD (in):

7

Telescopic Stages:

5

Telescopic Stroke:

216″

Telescopic Stroke (in):

216

Trunnion Closed:

7.62

Trunnion Pin Dia:

2.25

Trunnion Pin Length:

2

Trunnion Width:

11.94

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
1156048 FC 6.5-5-216 Mcneilus (Street Smart Parts) Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0036 FC 6.5-5-216 Lanau Lanau — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.55-3001-205 FC 6.5-5-216 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.55-3001-216 FC 6.5-5-216 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70525435 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71505416 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
AK6.5-5-216 FC 6.5-5-216 AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
D-PM0652045VM0429 FC 6.5-5-216 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 149-5-05475-594a-k0194 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 6.5-5-216 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A149-5-05475-599-K0194-HC FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A6.5-5-216-K8-HC FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-149-5-05475-594a-k0194 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-6.5-5-216 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC149-5-05475-594a-k0194 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC6.5-5-216 FC 6.5-5-216 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC-01431 FC 6.5-5-216 Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group — — Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01430-01 FC 6.5-5-216 Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01430-01 FC 6.5-5-216 Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01430-02 FC 6.5-5-216 Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert 2000 With Helping Hand Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01431 FC 6.5-5-216 Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group — — Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M204-6.5-5 FC 6.5-5-216 Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M204-6.5-5 FC 6.5-5-216 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0652045VM0298 FC 6.5-5-216 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0652045VM0438 FC 6.5-5-216 Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0652045VM0438 FC 6.5-5-216 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hyva telescopic cylinders include a 12-month limited warranty from the date of first use (typically the vehicle registration date), covering defects in materials and workmanship.

Exclusions & Conditions:

  • Warranty does not cover fitting/removal costs, downtime, lost profits, or incidental damages.
  • Coverage excludes misuse, improper maintenance, or unauthorized modifications.
  • Hyva reserves the right to repair, replace components, or replace the entire unit at their discretion.

Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
