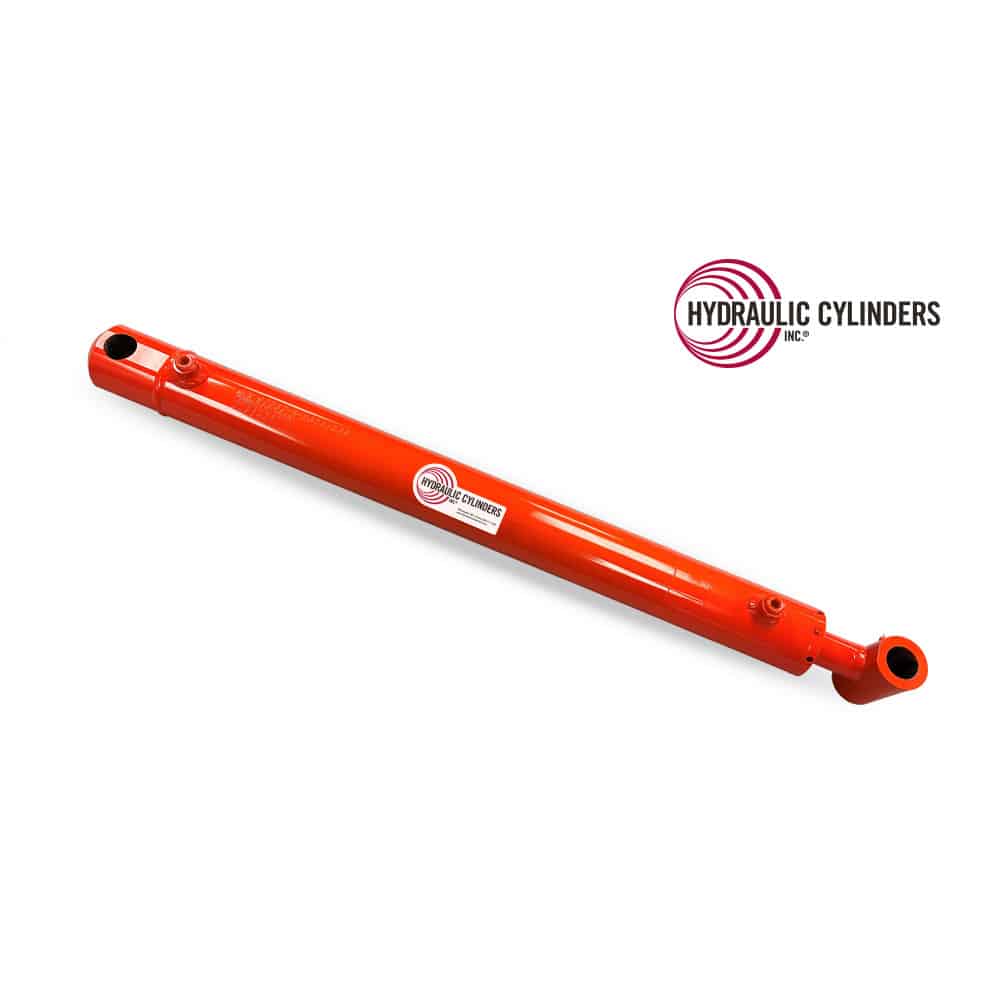

Replacement Hydraulic Bucket Tilt Cylinder for Kubota (PN: 7J417-64013) Tractor Loader Models M5000-M7000 Series with Front Loader Attachment LA1153S

Kubota Replacement Bucket Tilt Cylinder 7J417-64013, Models LA1153S, M5040DT Tractor with LA1153S Front End Loader Attachment, M5040DT-1 Tractor with LA1153S Front End Loader Attachment, M5040DTC Tractor with LA1153S Front End Loader Attachment, M5040DTC-1 Tractor with LA1153S Front End Loader Attachment, M5040F Tractor with LA1153S Front End Loader Attachment, M5040F-1 with LA1153S Front End Loader Attachment, M5040FC with LA1153S Front End Loader Attachment, M5040FC-1 with LA1153S Front End Loader Attachment, M5040HD with LA1153S Front End Loader Attachment, M5040HD-1 with LA1153S Front End Loader Attachment, M5040HDC with LA1153S Front End Loader Attachment, M5040HDC-1 with LA1153S Front End Loader Attachment, M5140DT with LA1153S Front End Loader Attachment, M5140DTC with LA1153S Front End Loader Attachment, M5140F with LA1153S Front End Loader Attachment, M5140FC with LA1153S Front End Loader Attachment, M5140HD with LA1153S Front End Loader Attachment, M5140HDC with LA1153S Front End Loader Attachment, M6040DT with LA1153S Front End Loader Attachment, M6040DT-1 with LA1153S Front End Loader Attachment, M6040DTC with LA1153S Front End Loader Attachment, M6040DTC-1 with LA1153S Front End Loader Attachment, M6040F with LA1153S Front End Loader Attachment, M6040F-1 with LA1153S Front End Loader Attachment, M6040FC with LA1153S Front End Loader Attachment, M6040FC-1 with LA1153S Front End Loader Attachment, M6040HD with LA1153S Front End Loader Attachment, M6040HD-1 with LA1153S Front End Loader Attachment, M6040HDC with LA1153S Front End Loader Attachment, M6040HDC-1 with LA1153S Front End Loader Attachment, M7040DT with LA1153S Front End Loader Attachment, M7040DT-1 with LA1153S Front End Loader Attachment, M7040DTC with LA1153S Front End Loader Attachment, M7040DTC-1 with LA1153S Front End Loader Attachment, M7040F with LA1153S Front End Loader Attachment, M7040F-1 with LA1153S Front End Loader Attachment, M7040FC with LA1153S Front End Loader Attachment, M7040FC-1 with LA1153S Front End Loader Attachment, M7040HD with LA1153S Front End Loader Attachment, M7040HD-1 with LA1153S Front End Loader Attachment, M7040HDC with LA1153S Front End Loader Attachment, M7040HDC-1 with LA1153S Front End Loader Attachment, M7040HDC-LTD with LA1153S Front End Loader Attachment, M7040SU with LA1153S Front End Loader Attachment, M7040SUD with LA1153S Front End Loader Attachment, M7040SUH with LA1153S Front End Loader Attachment, M7040SUHD with LA1153S Front End Loader Attachment
  • Kubota Replacement Bucket Tilt Cylinder 7J417-64013, Models LA1153S, M5040DT Tractor with LA1153S Front End Loader Attachment, M5040DT-1 Tractor with LA1153S Front End Loader Attachment, M5040DTC Tractor with LA1153S Front End Loader Attachment, M5040DTC-1 Tractor with LA1153S Front End Loader Attachment, M5040F Tractor with LA1153S Front End Loader Attachment, M5040F-1 with LA1153S Front End Loader Attachment, M5040FC with LA1153S Front End Loader Attachment, M5040FC-1 with LA1153S Front End Loader Attachment, M5040HD with LA1153S Front End Loader Attachment, M5040HD-1 with LA1153S Front End Loader Attachment, M5040HDC with LA1153S Front End Loader Attachment, M5040HDC-1 with LA1153S Front End Loader Attachment, M5140DT with LA1153S Front End Loader Attachment, M5140DTC with LA1153S Front End Loader Attachment, M5140F with LA1153S Front End Loader Attachment, M5140FC with LA1153S Front End Loader Attachment, M5140HD with LA1153S Front End Loader Attachment, M5140HDC with LA1153S Front End Loader Attachment, M6040DT with LA1153S Front End Loader Attachment, M6040DT-1 with LA1153S Front End Loader Attachment, M6040DTC with LA1153S Front End Loader Attachment, M6040DTC-1 with LA1153S Front End Loader Attachment, M6040F with LA1153S Front End Loader Attachment, M6040F-1 with LA1153S Front End Loader Attachment, M6040FC with LA1153S Front End Loader Attachment, M6040FC-1 with LA1153S Front End Loader Attachment, M6040HD with LA1153S Front End Loader Attachment, M6040HD-1 with LA1153S Front End Loader Attachment, M6040HDC with LA1153S Front End Loader Attachment, M6040HDC-1 with LA1153S Front End Loader Attachment, M7040DT with LA1153S Front End Loader Attachment, M7040DT-1 with LA1153S Front End Loader Attachment, M7040DTC with LA1153S Front End Loader Attachment, M7040DTC-1 with LA1153S Front End Loader Attachment, M7040F with LA1153S Front End Loader Attachment, M7040F-1 with LA1153S Front End Loader Attachment, M7040FC with LA1153S Front End Loader Attachment, M7040FC-1 with LA1153S Front End Loader Attachment, M7040HD with LA1153S Front End Loader Attachment, M7040HD-1 with LA1153S Front End Loader Attachment, M7040HDC with LA1153S Front End Loader Attachment, M7040HDC-1 with LA1153S Front End Loader Attachment, M7040HDC-LTD with LA1153S Front End Loader Attachment, M7040SU with LA1153S Front End Loader Attachment, M7040SUD with LA1153S Front End Loader Attachment, M7040SUH with LA1153S Front End Loader Attachment, M7040SUHD with LA1153S Front End Loader Attachment
  • Kubota Replacement Bucket Tilt Cylinder 7J417-64013, Models LA1153S, M5040DT Tractor with LA1153S Front End Loader Attachment, M5040DT-1 Tractor with LA1153S Front End Loader Attachment, M5040DTC Tractor with LA1153S Front End Loader Attachment, M5040DTC-1 Tractor with LA1153S Front End Loader Attachment, M5040F Tractor with LA1153S Front End Loader Attachment, M5040F-1 with LA1153S Front End Loader Attachment, M5040FC with LA1153S Front End Loader Attachment, M5040FC-1 with LA1153S Front End Loader Attachment, M5040HD with LA1153S Front End Loader Attachment, M5040HD-1 with LA1153S Front End Loader Attachment, M5040HDC with LA1153S Front End Loader Attachment, M5040HDC-1 with LA1153S Front End Loader Attachment, M5140DT with LA1153S Front End Loader Attachment, M5140DTC with LA1153S Front End Loader Attachment, M5140F with LA1153S Front End Loader Attachment, M5140FC with LA1153S Front End Loader Attachment, M5140HD with LA1153S Front End Loader Attachment, M5140HDC with LA1153S Front End Loader Attachment, M6040DT with LA1153S Front End Loader Attachment, M6040DT-1 with LA1153S Front End Loader Attachment, M6040DTC with LA1153S Front End Loader Attachment, M6040DTC-1 with LA1153S Front End Loader Attachment, M6040F with LA1153S Front End Loader Attachment, M6040F-1 with LA1153S Front End Loader Attachment, M6040FC with LA1153S Front End Loader Attachment, M6040FC-1 with LA1153S Front End Loader Attachment, M6040HD with LA1153S Front End Loader Attachment, M6040HD-1 with LA1153S Front End Loader Attachment, M6040HDC with LA1153S Front End Loader Attachment, M6040HDC-1 with LA1153S Front End Loader Attachment, M7040DT with LA1153S Front End Loader Attachment, M7040DT-1 with LA1153S Front End Loader Attachment, M7040DTC with LA1153S Front End Loader Attachment, M7040DTC-1 with LA1153S Front End Loader Attachment, M7040F with LA1153S Front End Loader Attachment, M7040F-1 with LA1153S Front End Loader Attachment, M7040FC with LA1153S Front End Loader Attachment, M7040FC-1 with LA1153S Front End Loader Attachment, M7040HD with LA1153S Front End Loader Attachment, M7040HD-1 with LA1153S Front End Loader Attachment, M7040HDC with LA1153S Front End Loader Attachment, M7040HDC-1 with LA1153S Front End Loader Attachment, M7040HDC-LTD with LA1153S Front End Loader Attachment, M7040SU with LA1153S Front End Loader Attachment, M7040SUD with LA1153S Front End Loader Attachment, M7040SUH with LA1153S Front End Loader Attachment, M7040SUHD with LA1153S Front End Loader Attachment

$1,120.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 2196426378

CategoryReplacement Welded Rod Hydraulic Cylinders » Attachments & Implements » Tractor Attachment
Fits Manufacturer Kubota Hydraulic Cylinders
Models Kubota LA1153S, Kubota M5040DT, Kubota M5040DT-1, Kubota M5040DTC, Kubota M5040DTC-1, Kubota M5040F, Kubota M5040F-1, Kubota M5040FC, Kubota M5040FC-1, Kubota M5040HD, Kubota M5040HD-1, Kubota M5040HDC, Kubota M5040HDC-1, Kubota M5140DT, Kubota M5140DTC, Kubota M5140F, Kubota M5140FC, Kubota M5140HD, Kubota M5140HDC, Kubota M6040DT, Kubota M6040DT-1, Kubota M6040DTC, Kubota M6040DTC-1, Kubota M6040F, Kubota M6040F-1, Kubota M6040FC, Kubota M6040FC-1, Kubota M6040HD, Kubota M6040HD-1, Kubota M6040HDC, Kubota M6040HDC-1, Kubota M7040DT, Kubota M7040DT-1, Kubota M7040DTC, Kubota M7040DTC-1, Kubota M7040F, Kubota M7040F-1, Kubota M7040FC, Kubota M7040FC-1, Kubota M7040HD, Kubota M7040HD-1, Kubota M7040HDC, Kubota M7040HDC-1, Kubota M7040HDC-LTD, Kubota M7040SU, Kubota M7040SUD, Kubota M7040SUH, Kubota M7040SUHD
Function Loader Bucket Tilt Dump
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 2196426378
Weight 38.0 lbs
Bore

60mm
Rod

35mm
Stroke

22.438″
Closed

32.10″
Open Extended Length

54.538″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

30mm
Base Mount Width

2.61″
Rod End Mount Type

Cross-Tube
Rod Pin Size

30mm
Rod Mount Width

2.50″
Extend Port/Plunger

.375 NPT
Retract Port/Plunger

.375 NPT
Old OEM PNs

7J417-64010, 7J417-64014, 7J417-64050, 7J417-64060, 7J417-64100

Description

This replacement hydraulic bucket tilt cylinder for Kubota OEM part 7J417-64013 fits a wide range of M-series tractors and the LA1153S loader. Built to match OEM specifications, it restores bucket tilt control with smooth, reliable performance. A direct replacement part for worn or damaged cylinders, offering dependable operation in tough agricultural and loader applications.

Bore:

60mm

Rod:

35mm

Stroke:

22.438″

Closed:

32.10″

Open Extended Length:

54.538″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

30mm

Base Mount Width:

2.61″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

30mm

Rod Mount Width:

2.50″

Extend Port/Plunger:

.375 NPT

Retract Port/Plunger:

.375 NPT

Old OEM PNs:

7J417-64010, 7J417-64014, 7J417-64050, 7J417-64060, 7J417-64100

    Extended Model List

  • LA1153S
  • M5040DT w/ LA1153S
  • M5040DT-1 w/ LA1153S
  • M5040DTC w/ LA1153S
  • M5040DTC-1 w/ LA1153S
  • M5040F w/ LA1153S
  • M5040F-1 w/ LA1153S
  • M5040FC w/ LA1153S
  • M5040FC-1 w/ LA1153S
  • M5040HD w/ LA1153S
  • M5040HD-1 w/ LA1153S
  • M5040HDC w/ LA1153S
  • M5040HDC-1 w/ LA1153S
  • M5140DT w/ LA1153S
  • M5140DTC w/ LA1153S
  • M5140F w/ LA1153S
  • M5140FC w/ LA1153S
  • M5140HD w/ LA1153S
  • M5140HDC w/ LA1153S
  • M6040DT w/ LA1153S
  • M6040DT-1 w/ LA1153S
  • M6040DTC w/ LA1153S
  • M6040DTC-1 w/ LA1153S
  • M6040F w/ LA1153S
  • M6040F-1 w/ LA1153S
  • M6040FC w/ LA1153S
  • M6040FC-1 w/ LA1153S
  • M6040HD w/ LA1153S
  • M6040HD-1 w/ LA1153S
  • M6040HDC w/ LA1153S
  • M6040HDC-1 w/ LA1153S
  • M7040DT w/ LA1153S
  • M7040DT-1 w/ LA1153S
  • M7040DTC w/ LA1153S
  • M7040DTC-1 w/ LA1153S
  • M7040F w/ LA1153S
  • M7040F-1 w/ LA1153S
  • M7040FC w/ LA1153S
  • M7040FC-1 w/ LA1153S
  • M7040HD w/ LA1153S
  • M7040HD-1 w/ LA1153S
  • M7040HDC w/ LA1153S
  • M7040HDC-1 w/ LA1153S
  • M7040HDC-LTD w/ LA1153S
  • M7040SU w/ LA1153S
  • M7040SUD w/ LA1153S
  • M7040SUH w/ LA1153S
  • M7040SUHD w/ LA1153S
