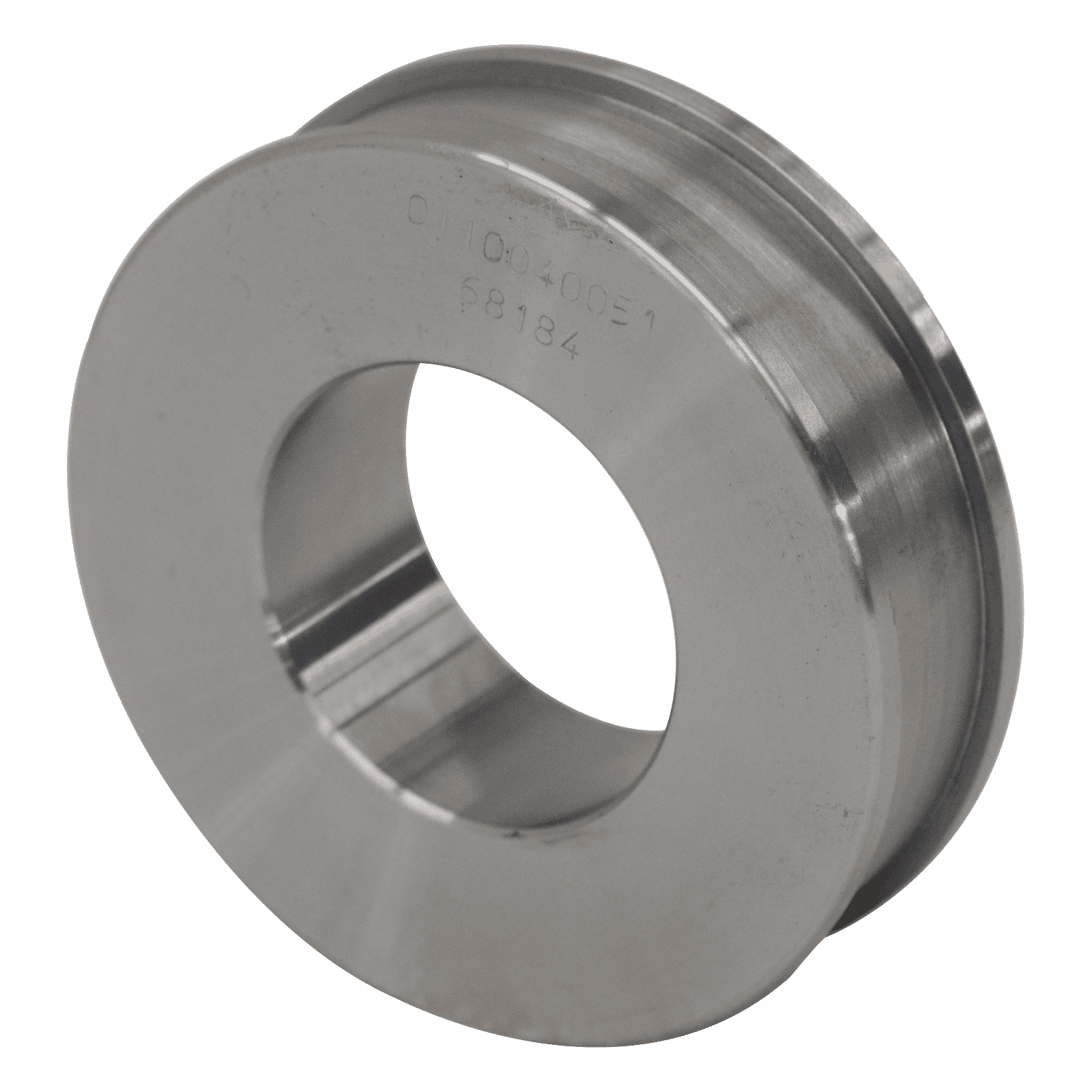

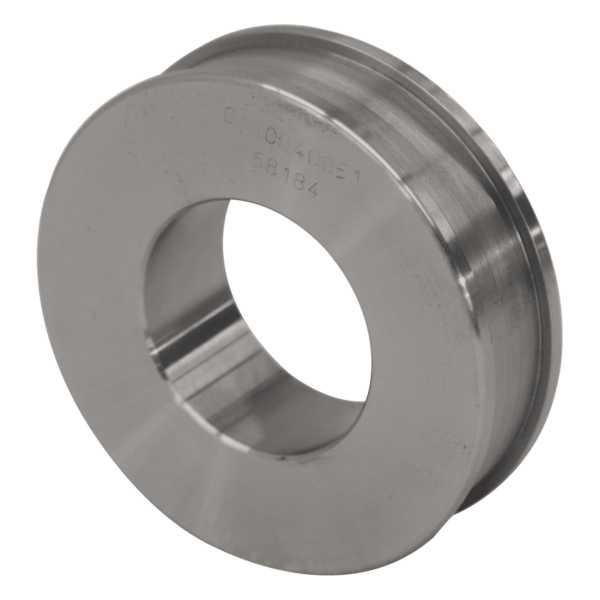

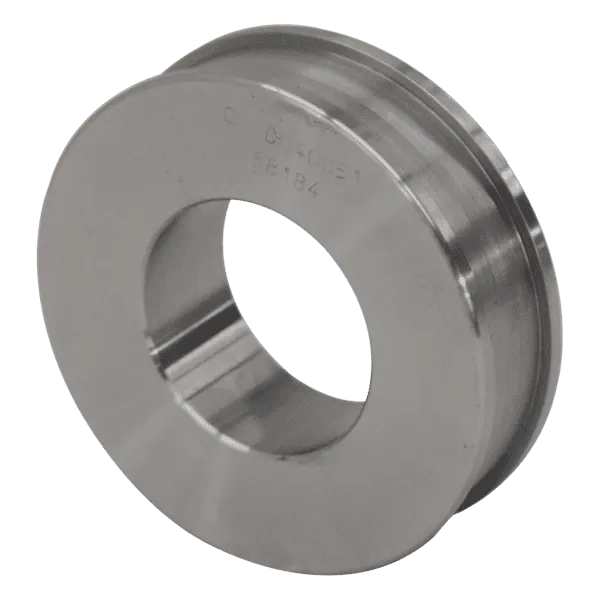

Piston

  • S42MB-5-60 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder

$37.54$80.00

$40.00 (SKU: 0110020048)
$37.54 (SKU: 0110025052)
$57.00 (SKU: 0110030057)
$71.00 (SKU: 0110035042)
$80.00 (SKU: 0110040051)
Categories Cylinder Piston, Displacement Cylinder Components, Hydraulic Cylinder Seal Kits & Component Parts

Product Variations

SKUABCDSeal Kit SKUWeld SizeList Price
01100200480.500.750.8761.9501180200481/4"$40.00
01100250520.500.751.1262.4501180250521/4"$37.54
01100300570.751.121.5012.9501180300575/16"$57.00
01100350420.751.121.7513.4501180350423/8"$71.00
01100400510.751.122.5013.9501180400513/8"$80.00

Description

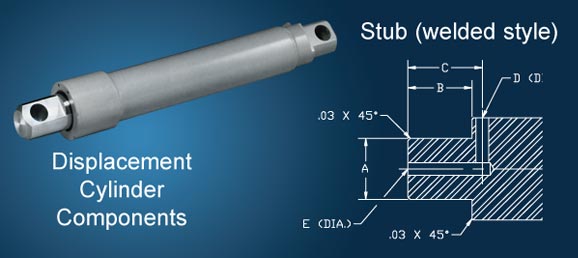

Stub (Welded Style) Machining Info

Stub (Welded Style) Machining Info

Piston Number A +.001″ -.001″ B C D Dia. Drill X Depth E Dia. Drill X Depth
0110020048 0.874 1.12 1.31 0.25 X 0.75 0.25 X 1.44
0110025052 1.124 1.12 1.38 0.31 X 1.00 0.31 X 1.50
0110030057 1.499 1.56 1.81 0.31 X 1.25 0.31 X 2.00
0110035042 1.749 1.62 1.88 0.38 X 1.50 0.38 X 2.00
0110040051 2.499 1.62 1.88 0.38 X 1.75 0.38 X 2.00

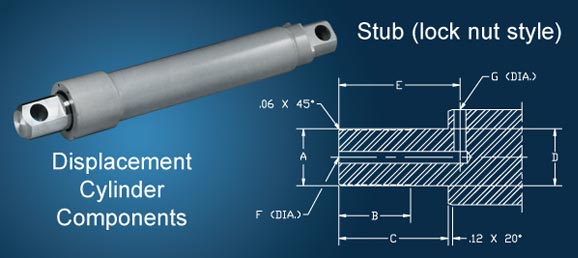

Stub (Lock Nut Style) Machining Info

Stub (Lock Nut Style) Machining Info

Piston Number A UN-THD B C D +.001 -.001 E F Dia. Drill X Depth G Dia. Drill X Depth Lock Nut Number
0110020048 7/8″-14 1.25 1.88 0.874 2.12 0.25 X 2.25 0.25 X 0.75 4508814100
0110025052 1-1/8″-12 1.44 2.06 1.124 2.38 0.31 X 2.56 0.31 X 1.00 4511212119
0110030057 1-1/2″-12 1.88 2.88 1.499 3.19 0.31 X 3.38 0.31 X 1.25 4515012162
0110035042 1-3/4″-12 1.75 2.75 1.749 3.06 0.38 X 3.31 0.31 X 1.50 4517512150
