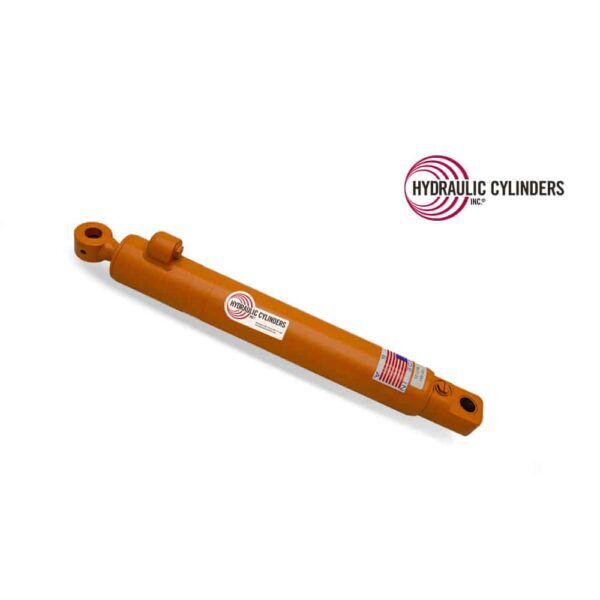

Replacement Hydraulic Arm Cylinder for Case (PN: 110294A1) Backhoe Loader 580K, 580 Super K (580SK)

Replacement arm cylinder for Case 580K, 580 Super K Backhoe Loaders, OEM 110294A1
  • Replacement arm cylinder for Case 580K, 580 Super K Backhoe Loaders, OEM 110294A1
  • Backhoe Loader Backhoe Arm

$2,108.00

In Stock

Fast Ship What's This?

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-110294A1

CategoryReplacement Welded Hydraulic Cylinders » Loader » Tractor/Backhoe Loader
Fits Manufacturer Replacement Case® Hydraulic Cylinders and Parts
Models Case 580 Super K, Case 580K
Function Arm Crowd Dipper Dipperstick Dip Stick Ditching
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-110294A1
Weight 188.0 lbs
Bore

5.00″
Rod

2.50″
Stroke

22.938″
Base End Mount Type

Drilled Thru Lug
Rod End Mount Type

Drilled Thru Lug
Old OEM PNs

1340984C1, 1542663C1, 1542912C1, G110683
12 Month Warranty
Made in USA

Description

Replacement Arm Cylinder Case 110294A1 drives the dipper crowd action on your backhoe loader. Moreover, this cylinder takes on the dipper stick job on Case work-site backhoes. This direct-fit cylinder steps in for OEM 110294A1. It also covers older 1542663C1, 1542912C1, 1340984C1, and G110683. Therefore, it lines up with Case’s tough work standards. It fits the 580K and 580 Super K backhoe loaders.

This double-acting welded rod cylinder uses solid components. This means it stands up to backhoe stick duty in tough digging. With a 5.00 bore and 2.50 rod, it handles dipper loads on trench and ditch work. What’s more, that covers trenches, ditches, and dipper crowd cycles. Furthermore, it ships FASTSHIP—order before 12:00 PM CST for same-day shipping. The full list of matching models with serial number ranges sits below.

Performance-built and warranty-backed. Once installed, get your equipment back to work without delay. Demolish Downtime.

Bore:

5.00″

Rod:

2.50″

Stroke:

22.938″

Base End Mount Type:

Drilled Thru Lug

Rod End Mount Type:

Drilled Thru Lug

Old OEM PNs:

1340984C1, 1542663C1, 1542912C1, G110683

Compatible Models:

  • Case 580K
  • Case 580 Super K (580SK)

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

12 Month Warranty

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
