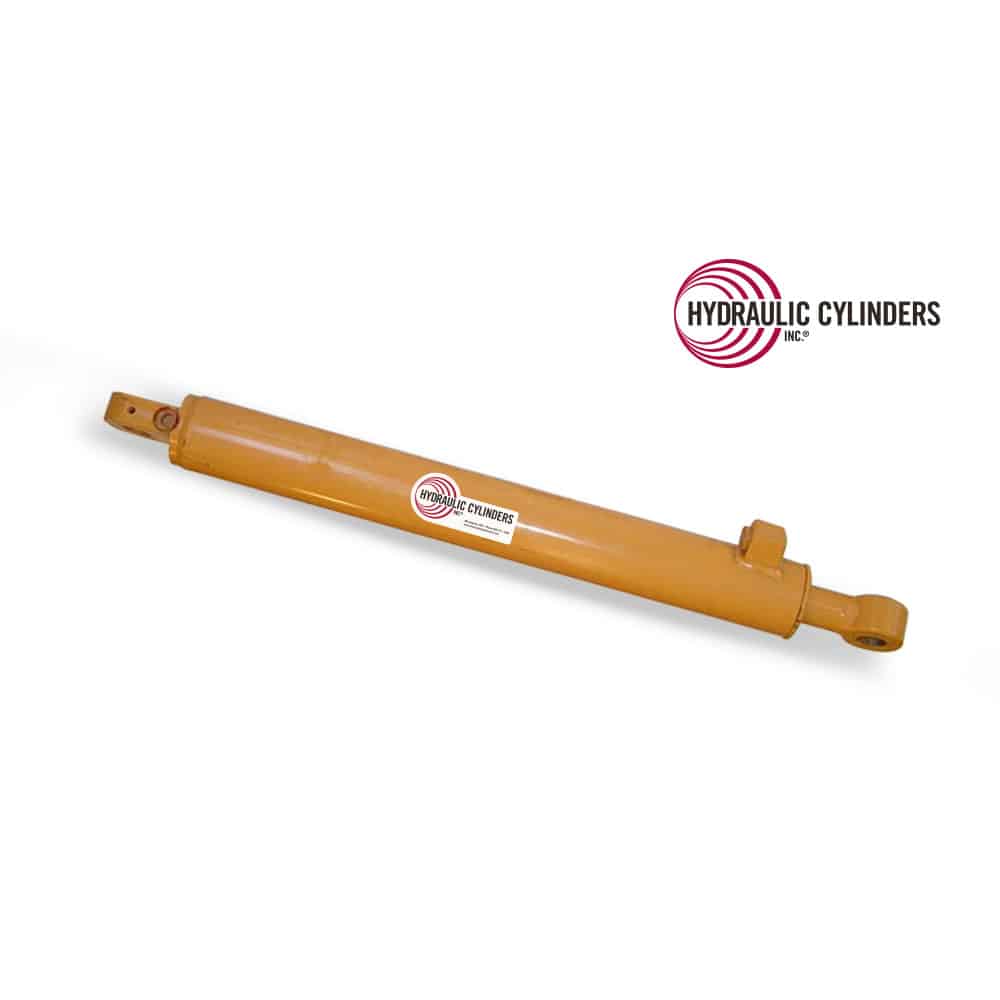

Replacement Hydraulic Bucket Cylinder for Case (PN: G103503) Backhoe Loader Models 480D, 480E, 480F, 480LL, Loader Attachment 26D
$1,286.00
Specifications for HCI-G103503
| Category | Replacement Welded Rod Hydraulic Cylinders » Attachments & Implements » Backhoe Loader Attachment |
|---|---|
| Fits Manufacturer | Case |
| Models | Case 26D, Case 480D, Case 480E, Case 480E LL, Case 480F, Case 480LL |
| Function | Backhoe Bucket |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | HCI-G103503 |
|---|---|
| Weight | 83.0 lbs |
| Bore | 3.25″ |
|---|---|
| Rod | 2.00″ |
| Stroke | 26.313″ |
Description
This replacement bucket cylinder (PN: G103503) fits Case 26D backhoe loader attachments, 480D, 480E, and 480F loader backhoes, and 480E LL and 480F LL landscape loaders. Engineered to meet OEM standards, it delivers consistent hydraulic function for bucket movements, providing a dependable replacement for worn or damaged cylinders.
3.25″
2.00″
26.313″
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
