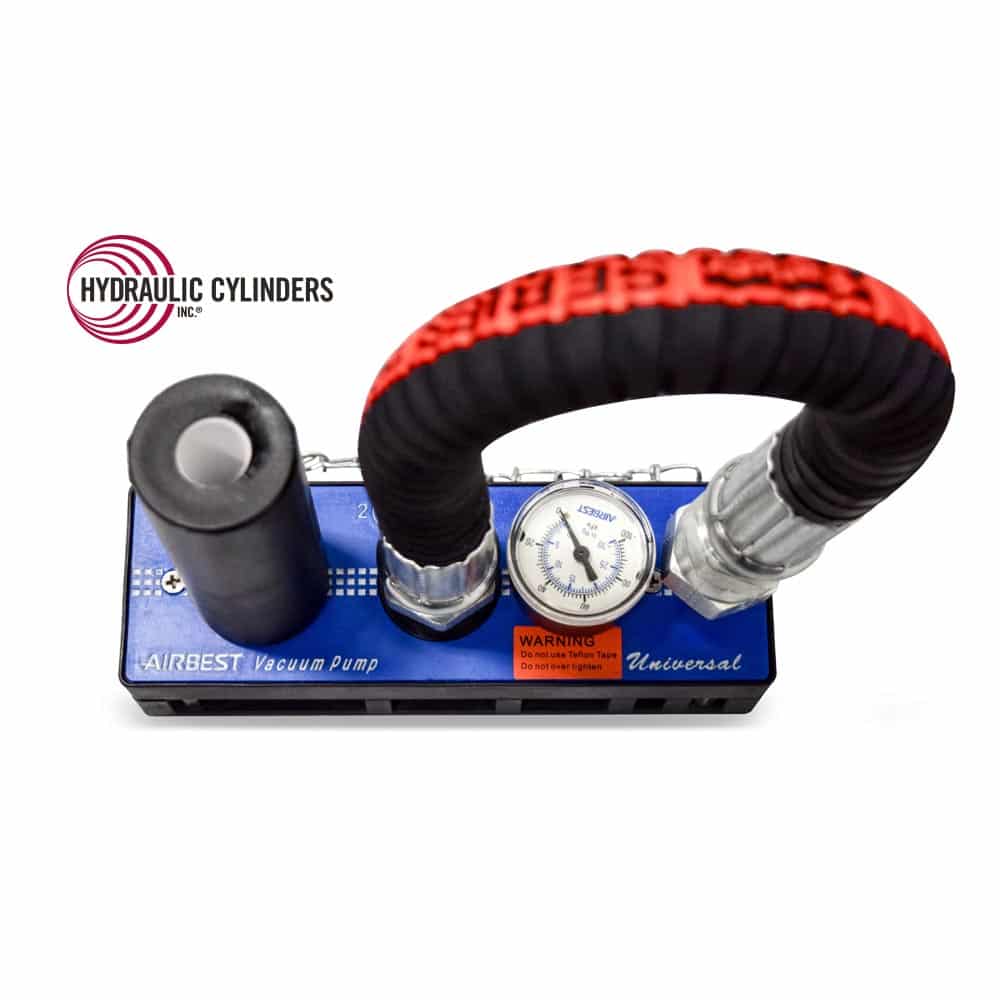

Frustrated by all the oil that flows out while working on hydraulic and lubrication systems? The patent pending Mighty Tankholder SS
is the first, and only tool, specifically designed to prevent or limit fluid loss during service and maintenance work.
Service, maintenance and assembly work on:
- Industrial & mobile hydraulic systems.
- Lubrication systems.
- Other fluid systems.
Use to prevent drainage during:
- Replacement of hoses, fittings, or adapters.
- Replacement of components for repair, including; pumps, motors, & valves.
- Removal of parts of components, including; spools cartridges and plugs.
In a hydraulic system there are many pathways back to the reservoir. A few examples are shown in the diagram above: pump suction line, motor case drain line, and valve return line. When these pathways are disconnected for service work, fluid in the reservoir often drains out due to gravity. If the Mighty Tankholder SS
is used, it creates a vacuum force that holds the fluid in the tank and prevents drainage.
Simple to use!
- Remove the breather cap from the reservoir, connect the proper adapter, then connect the hose of the Mighty Tankholder SS to the adapter.
- Connect compressed air (80 psi, 6.5CFM recommend) to the Mighty Tankholder SS. The gauge will show the vacuum pressure rise and stabilize.
- Proceed with service work. (before resuming normal system operation, reverse the process.)
