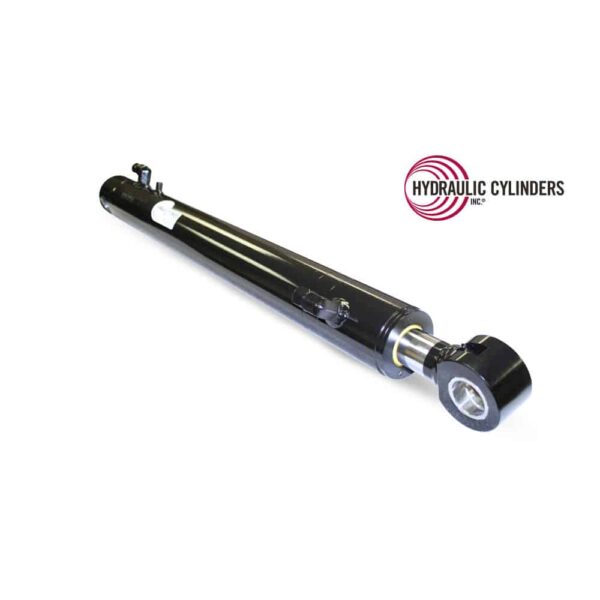

Replacement Hydraulic Arm Cylinder for Bobcat (PN: 7177224) Excavator Models 335, 435
Specifications for 1866781625
| Category | Replacement Welded Rod Hydraulic Cylinders » Excavator » Compact/Mini Excavator |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 335, Bobcat 435 |
| Function | Arm Crowd Dipper Dipperstick Dip Stick Ditching |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1866781625 |
|---|---|
| Weight | 100 lbs |
| Bore | 3.25″ |
|---|---|
| Rod | 2.00″ |
| Stroke | 26.00″ |
| Closed | 39.875″ |
| Open Extended Length | 65.875″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.75″ |
| Base Mount Width | 3.875″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.75″ |
| Rod Mount Width | 2.417″ |
| Extend Port/Plunger | -10 JIC 90D |
| Retract Port/Plunger | -10 JIC 90D |
Description
The Replacement Hydraulic Arm Cylinder for Bobcat 335 and 435 excavators restores smooth and reliable arm control for digging and lifting tasks. Made in the USA from all-steel components, this double-acting welded rod cylinder is built to last in tough job site conditions. It meets OEM specifications and replaces part number 7177224 for a direct, accurate fit.
Designed for heavy-duty work, this cylinder delivers consistent performance and durability without compromise. Performance-Built and Warranty-Backed to keep your Bobcat operating at peak productivity. Demolish Downtime.
3.25″
2.00″
26.00″
39.875″
65.875″
3000
Drilled Thru Base
1.75″
3.875″
Cross-Tube
1.75″
2.417″
-10 JIC 90D
-10 JIC 90D
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
