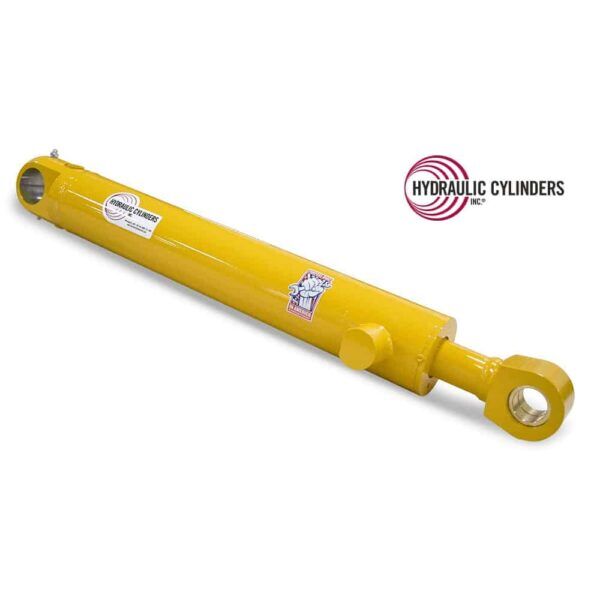

Replacement Hydraulic LH / RH Bucket Tilt Dump Cylinder for John Deere (PN: AH210329 LH / AH211461 RH) Skid Steer Models 280, 332, CT332
$1,550.00
Specifications for 1163271398
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | John Deere |
| Models | John Deere 280, John Deere 332, John Deere CT332 |
| Function | Bucket Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1163271398 |
|---|---|
| Weight | 67 lbs |
| Bore | 80mm |
|---|---|
| Rod | 45mm |
| Stroke | 18.125″ |
| Closed | 30.50″ |
| Open Extended Length | 48.625″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Lug |
| Base Pin Size | 62mm |
| Base Mount Width | 2.375″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 35mm |
| Rod Mount Width | 2.375″ |
| Extend Port/Plunger | -10 SAE ORB |
| Retract Port/Plunger | -10 SAE ORB |
Description
This replacement bucket cylinder for John Deere 280/332 restores bucket tilt and dump on skid steers and compact track loaders. It fits 280 and 332 skid steers, plus the CT332 track loader. One universal build replaces both the left (AH210329) and right (AH211461) hydraulic cylinders. The welded rod, double-acting design delivers smooth and steady bucket control.
This Performance-Built cylinder meets OEM requirements and handles high-pressure work with ease. It includes full Warranty-Backed protection and qualifies for FASTSHIP (same-day shipping) when you order before 12:00 CST. Demolish downtime with a direct-fit part that keeps your loader moving.
80mm
45mm
18.125″
30.50″
48.625″
3000
Drilled Thru Lug
62mm
2.375″
Cross-Tube
35mm
2.375″
-10 SAE ORB
-10 SAE ORB
