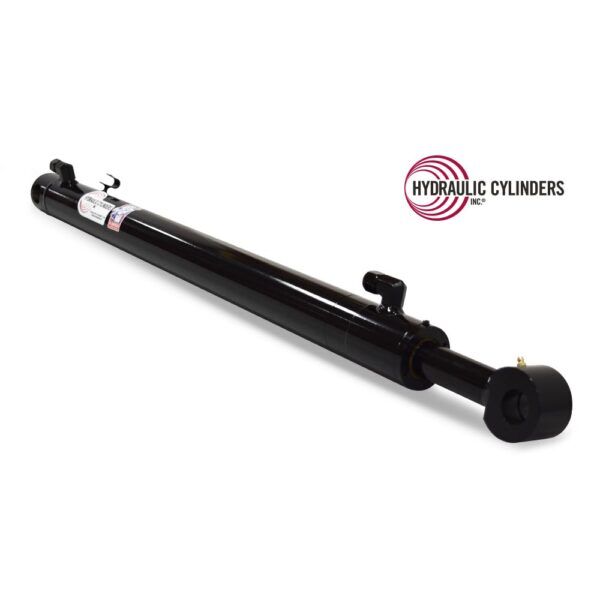

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 6812504) Skid Steer Model 763
$885.00
Specifications for 1003522009
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Model | Bobcat 763 |
| Function | Boom Arm Lift |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1003522009 |
|---|---|
| Weight | 57 lbs |
| Bore | 2.25″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 27.875″ |
| Closed | 41.563″ |
| Open Extended Length | 69.438″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 2.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 1.875″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -8 JIC |
| Old OEM PNs | 6589259 |
Description
Replacement hydraulic lift cylinder Bobcat 763 restores boom arm performance on Bobcat skid steer model 763. It replaces OEM part number 6812504 and installs easily as a direct-fit solution. Built from all-steel components and made in the USA, this double-acting rod cylinder delivers strong, reliable power for demanding lift tasks.
Engineered for the boom arm lift function, it provides smooth motion in both directions under pressure. Whether you’re raising attachments or handling heavy loads, this cylinder keeps your 763 operating with consistency and control.
Performance-built and warranty-backed for long-term use. FASTSHIP available — order by 12:00 CST for same-day shipping. Demolish Downtime with a boom cylinder that works hard every day.
2.25″
1.50″
27.875″
41.563″
69.438″
3000
Drilled Thru Base
1.25″
2.75″
Cross-Tube
1.25″
1.875″
-8 JIC
-8 JIC
6589259
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
