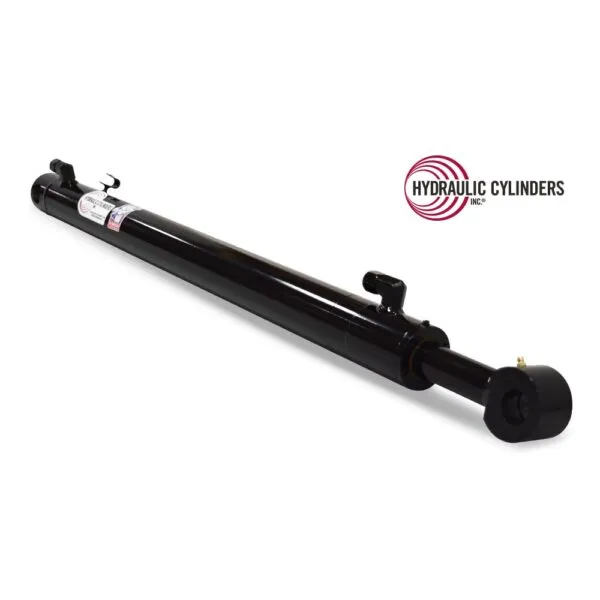

Replacement Hydraulic Boom Arm Lift Cylinder for Bobcat (PN: 6811994) Skid Steer Models 763, S150, S160, T180
$1,150.00
Specifications for 1003294360
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 763, Bobcat S150, Bobcat S160, Bobcat T180 |
| Function | Boom Arm Lift |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1003294360 |
|---|---|
| Weight | 52 lbs |
| Bore | 2.25″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 27.875″ |
| Closed | 41.563″ |
| Open Extended Length | 69.438″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 2.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 1.875″ |
| Extend Port/Plunger | -6 JIC |
| Retract Port/Plunger | -6 JIC |
| Old OEM PNs | 6809207 |
Description
Replacement hydraulic lift cylinder Bobcat 763–T180 restores arm lift performance on Bobcat models 763, S150, S160, and T180. It replaces OEM part number 6811994 and installs easily as a direct-fit welded cylinder. Made from all-steel components and built in the USA, this cylinder delivers long-lasting lift power for worksite demands.
Built for the boom arm lift function, it maintains smooth, controlled movement when raising and lowering loader arms. The double-acting rod design applies pressure in both directions for dependable response. Whether lifting heavy loads or operating attachments, this cylinder performs with strength and consistency.
Performance-built and warranty-backed for trusted results. FASTSHIP available — order by 12:00 CST for same-day shipping. Demolish Downtime with a replacement you can count on.
2.25″
1.50″
27.875″
41.563″
69.438″
3000
Drilled Thru Base
1.25″
2.75″
Cross-Tube
1.25″
1.875″
-6 JIC
-6 JIC
6809207
