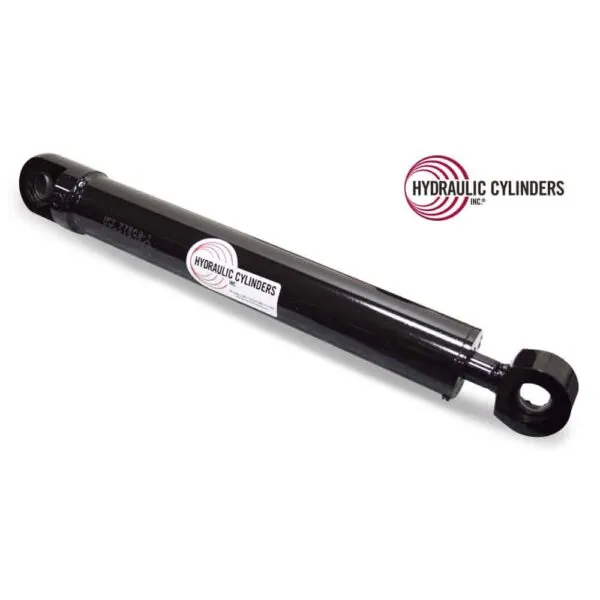

Replacement Hydraulic Thumb/Bucket Clamp Cylinder for John Deere and Hitachi (PN: AH216639) Excavator Models 26-30 Series, ZX26-ZX35 Series, 110TLB
$1,400.00
Specifications for 1596187568
| SKU | 1596187568 |
|---|---|
| Weight | 26 lbs |
| Bore | 2.00″ |
|---|---|
| Rod | 1.00″ |
| Stroke | 13.43″ |
| Closed | 21.09″ |
| Open Extended Length | 34.52″ |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 1.00″ |
| Base Mount Width | 1.25″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 1.375″ |
| Extend Port/Plunger | M14x1.5 |
| Retract Port/Plunger | M14x1.5 |
Description
Replacement Thumb Cylinder for Hitachi and John Deere compact excavators. This welded, double-acting rod cylinder is built to replace OEM part number AH216639 and delivers reliable clamp force for machines equipped with a hydraulic thumb or bucket clamp. Designed for consistent performance, it supports smooth material handling in tight spaces and rugged field conditions.
The cylinder fits a wide range of John Deere mini excavators from the 26G up to the 35 P-Tier series, including ZTS, D-series, G-series, and Gen A models. It also fits the John Deere 110TLB backhoe loader, as well as Hitachi ZX26U-5N, ZX30U-5N, and ZX35U-5N excavators. A full list of compatible models is provided below to ensure proper fitment.
Performance-built and warranty-backed, this replacement thumb cylinder meets or exceeds OEM standards for durability and hydraulic function. It is FASTSHIP eligible—order by 12:00 PM CST for same-day shipping. Keep your machine working at full capacity—Demolish Downtime.
2.00″
1.00″
13.43″
21.09″
34.52″
Spherical Bearing
1.00″
1.25″
Spherical Bearing
1.00″
1.375″
M14x1.5
M14x1.5
Compatible Models:
John Deere Excavators:
- 26G
- 26 P-Tier, Gen A
- 27 ZTS
- 27C ZTS
- 27D
- 30G
- 30 P-Tier, Gen A
- 35 ZTS
- 35C ZTS
- 35D
- 35G
- 35 P-Tier, Gen A
John Deere Backhoe Loaders:
- 110TLB (or 110)
Hitachi Excavators:
- ZX26U-5N
- ZX30U-5N
- ZX35U-5N
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
