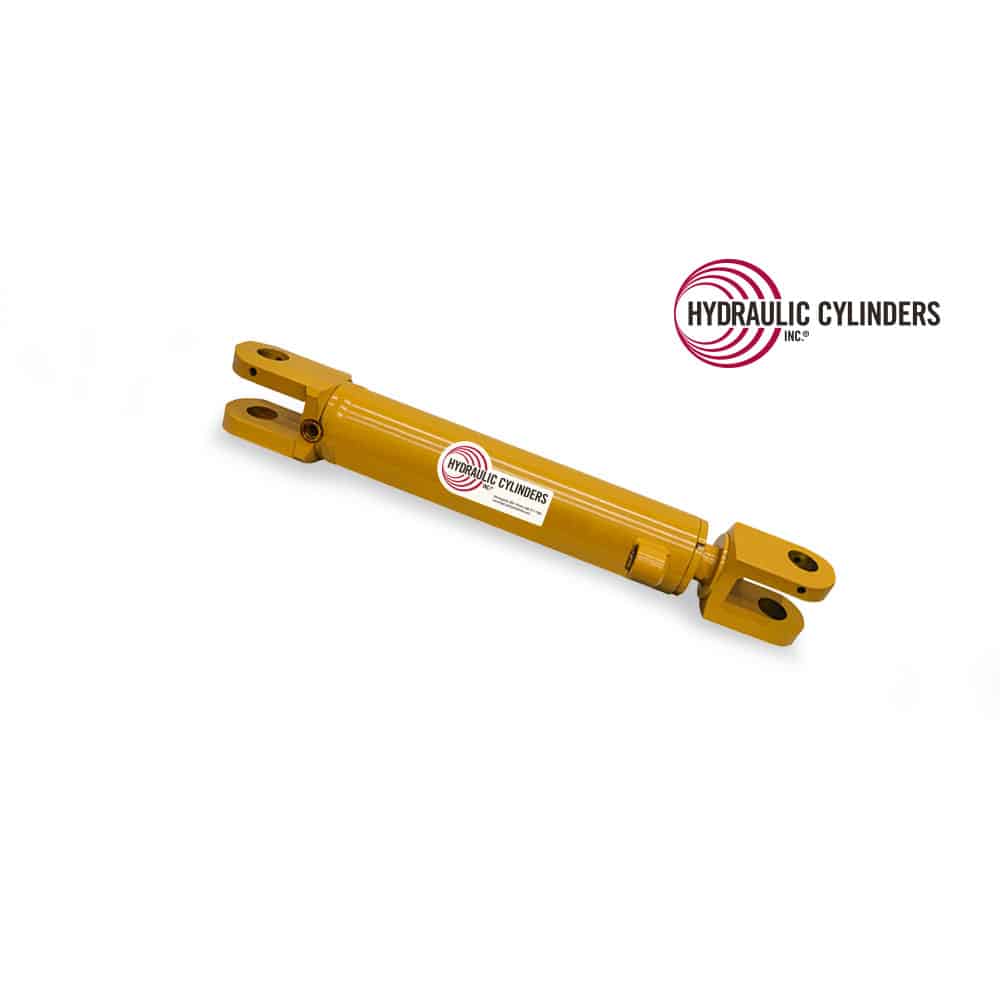

Replacement Hydraulic Blade Lift Cylinder for John Deere (PN: AH168543) Skidder Models 740G, 748G

$1,649.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-AH168543

CategoryReplacement Welded Rod Hydraulic Cylinders » Other » Skidder
Fits Manufacturer John Deere
Models John Deer 748G-2, John Deere 740G, John Deere 748G, John Deere 748G-3
Function Blade Lift
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-AH168543
Weight 106.0 lbs

Bore

100mm

Rod

56mm

Old OEM PNs

AH135330, AH150114

Description

This replacement lift cylinder (PN: AH168543) fits the front blade on high-capacity John Deere skidders, including the 740G and 748G series. It manages the blade’s vertical motion, providing lift and control for clearing, grading, and machine stabilization. Built to meet or exceed OEM specifications, it’s designed for reliable performance in demanding logging environments.

Bore:

100mm

Rod:

56mm

Old OEM PNs:

AH135330, AH150114

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
