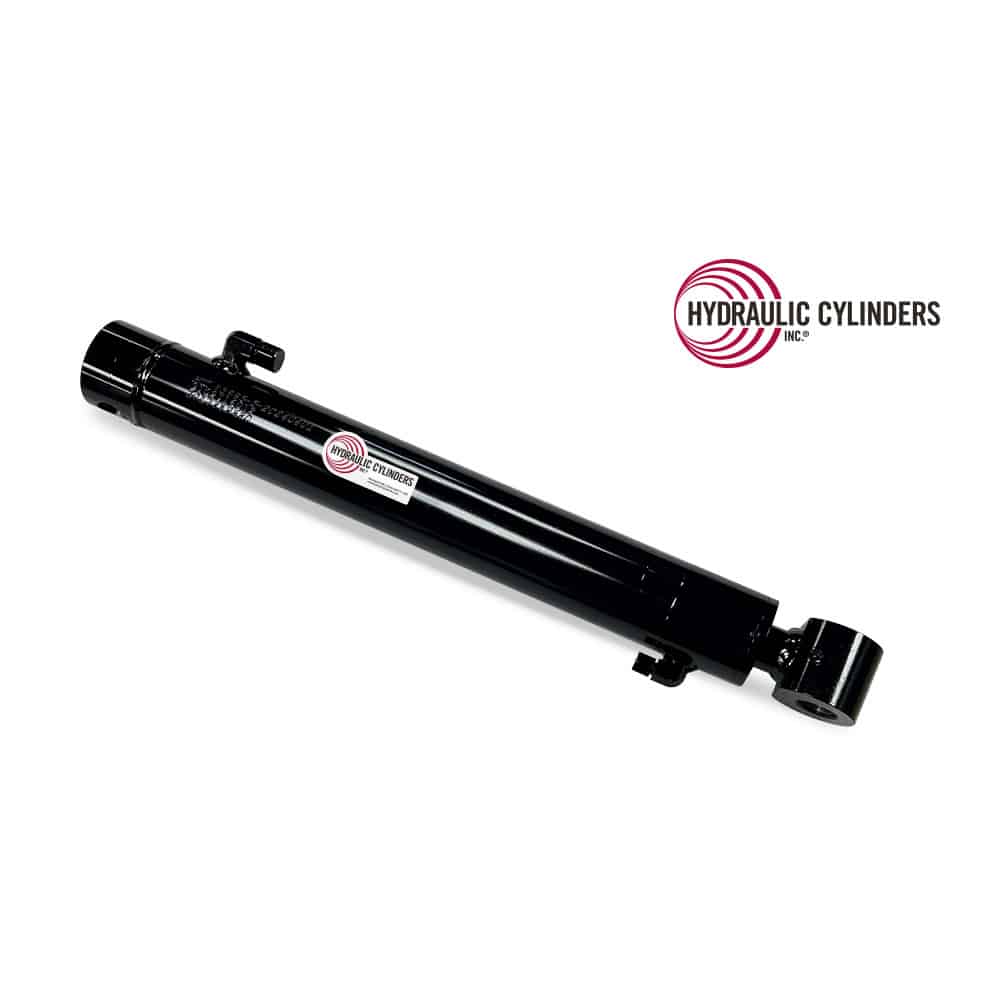

Replacement Hydraulic Boom Cylinder for Bobcat (PN: 7168435) Excavator Models DX19, E16, E19, E20, E20z, E20e, 324
$1,150.00
Specifications for 2017359680
| Category | Replacement Welded Rod Hydraulic Cylinders » Excavator » Compact/Mini Excavator |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 324, Bobcat DX19, Bobcat E16, Bobcat E19, Bobcat E20, Bobcat E20e, Bobcat E20z |
| Function | Boom |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 2017359680 |
|---|---|
| Weight | 53 lbs |
| Bore | 2.75″ |
|---|---|
| Rod | 1.625″ |
| Stroke | 17.50″ |
| Closed | 26.688″ |
| Open Extended Length | 44.188″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.17″ |
| Base Mount Width | 3.25″ |
| Rod End Mount Type | Drilled Thru Lug |
| Rod Pin Size | 1.17″ |
| Rod Mount Width | 2.625″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -6 JIC |
Description
The Replacement Hydraulic Boom Cylinder for Bobcat excavator models DX19, E16, E19, E20, E20e, E20z, and 324 (OEM Part Number 7168435) delivers strong lifting power for the boom function. This double-acting welded rod cylinder matches OEM specs for stroke, pressure, and mounting points. It provides a direct-fit installation and consistent performance under heavy use.
Built in the USA from all-steel components, this aftermarket boom cylinder offers outstanding durability and reliability. It handles the daily stress of digging, lifting, and material handling. The cylinder gives smooth, responsive control of your excavator’s boom movement. High-quality seals help reduce leaks and extend service life.
FASTSHIP eligible—order by 12:00 PM CST for same-day shipping. Performance-Built and Warranty-Backed to keep your Bobcat excavator working at its best. Demolish Downtime.
2.75″
1.625″
17.50″
26.688″
44.188″
3000
Drilled Thru Base
1.17″
3.25″
Drilled Thru Lug
1.17″
2.625″
-8 JIC
-6 JIC
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
