S63DC-97-111 (Commercial / Parker) Replacement SAT Dump Hoist Cylinders

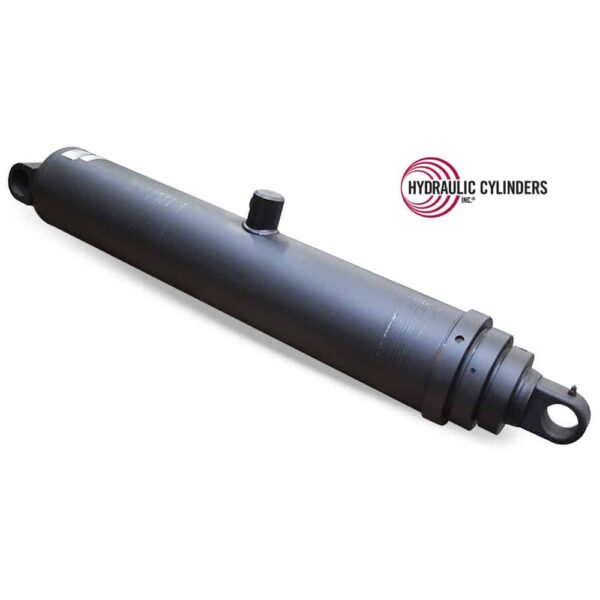

Heil Replacement SAT Dump Hoist Cylinder

$2,236.00

Fast Ship What's This?

Specifications for 3771413309

CategoryReplacement Telescopic Hydraulic Cylinders » Dump (Telescopic) » Dump Trucks/Trailers/Hoists
Fits Manufacturer Commercial/Parker
Function Dump Hoist / Body Raise / Tipping
Features Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU 3771413309
Weight 315 lbs
Base End Mount Type

Cross-Tube
Base Mount Width

7.00″
Base Pin Size

2.00″
Closed

49.93″
Extend Port/Plunger

1.00" NPT
Open Extended Length

160.93″
Retract Port/Plunger

1.00" NPT
Rod End Mount Type

Drilled Thru Lug
Rod Mount Width

2.00″
Rod Pin Size

2.00″
Tele Largest Stage OD

6″
Telescopic Stages

3
Telescopic Stroke

111″

Description

S63DC-97-111 single-acting telescopic cylinder replacements for 3771413309 Commercial Parker cylinders perform dump hoist, body raise & tipping functions.

Base End Mount Type:

Cross-Tube

Base Mount Width:

7.00″

Base Pin Size:

2.00″

Closed:

49.93″

Closed (in):

49.93

Extend Port/Plunger:

1.00" NPT

Open Extended Length:

160.93″

Open Extended Length (in):

160.93

Retract Port/Plunger:

1.00" NPT

Rod End Mount Type:

Drilled Thru Lug

Rod Mount Width:

2.00″

Rod Pin Size:

2.00″

Tele Largest Stage OD:

6″

Tele Largest Stage OD (in):

6

Telescopic Stages:

3

Telescopic Stroke:

111″

Telescopic Stroke (in):

111

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
001682 3771413309 J Craft J Craft — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
058003440 3771413309 Edbro, acquired by JOST World Nov-11-2012 Edbro, acquired by JOST World Nov-11-2012 — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
15-01-0108 3771413309 Lanau Lanau — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
15-01-0128 3771413309 Lanau Lanau — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1604432 3771413309 Ox Bodies / Tbei Inc Ox Bodies / Tbei Inc — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1HSAT000250017 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30097-63-111 3771413309 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30347-63-111 3771413309 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413028 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413046 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413051 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413072 3771413309 Commercial / Parker Columbia Body — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413076 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413077 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413091 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413125 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413172 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413193 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413263 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413281 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413307 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413309 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-111 3771413309 Ox Bodies / Tbei Inc Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-136-114 3771413309 Custom Hoist Anthony / Midwest Body R63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-136-114 3771413309 Custom Hoist Anthony / Midwest Body T63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-180-111S 3771413309 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-184-111 3771413309 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-2-111S 3771413309 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-8-111 3771413309 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70347-63-111 3771413309 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70574130 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564118 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564120 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564122 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
9000037 3771413309 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
C-111-6-3 3771413309 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
C111-6-3 3771413309 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
D3-50 3771413309 Johnson Hydraulics Mfg Co Johnson Hydraulics Mfg Co — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
fee 129-3-02755-231a-k1304 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 129-3-02755-441a-k1295-bu 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 6-3-108 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 6-3-108-BU 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A129-3-02785-243-K1300 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A6-3-110-K51 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE-129-3-02755-441a-k1295-bu 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE-6-3-108-BU 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE129-3-02755-231A-K1304 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE129-3-02755-441a-k1295-bu 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE129-3-2755-231A-K1304 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE6-3-108 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE6-3-108-BU 3771413309 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FMD3-50 3771413309 Johnson Hydraulics Mfg Co Johnson Hydraulics Mfg Co — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
H070105 3771413309 Anthony / Midwest Body Anthony / Midwest Body T63114l Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
H070105 3771413309 Anthony / Midwest Body Anthony / Midwest Body R63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
H070105 3771413309 Anthony / Midwest Body Anthony / Midwest Body T63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
H0701052 3771413309 Anthony / Midwest Body Anthony / Midwest Body R63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
H0701052 3771413309 Anthony / Midwest Body Anthony / Midwest Body T63114 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
PC0601113HG0037 3771413309 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
PS0601113HG0045 3771413309 Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63CC-22-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-22-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-23-108 3771413309 Commercial / Parker Columbia Body — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-26-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-27-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-3-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-30-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-44-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-44-111-OX 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-44G-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-66-111 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-81-111 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-86-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-96-111 3771413309 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-97-111 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
SAT63DC111.00-AAAB-49.94 3771413309 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
TE14-3-2850 3771413309 Edbro, acquired by JOST World Nov-11-2012 Edbro, acquired by JOST World Nov-11-2012 — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Commercial/Parker telescopic cylinders—both single-acting and double-acting models—are covered by an 18-month limited warranty against defects in materials, workmanship, and leak-free performance.

Exclusions & Conditions:

  • Warranty does not cover misuse, misapplication, contamination, or unauthorized alterations.
  • All claims are subject to inspection and approval by Parker.

Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
