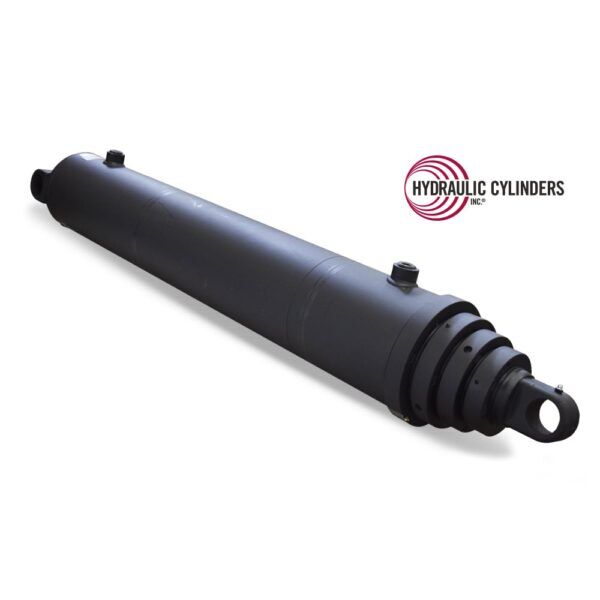

S74DC-75-135 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder

  • S74DC-75-135 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder
  • S74DC-74-140 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder
  • S74DC-74-140 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder
  • S74DC-74-140 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder
  • S74DC-74-140 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder

SKU3772514121
CategoriesReplacement Telescopic Hydraulic Cylinders, Single-Acting Telescopic Cylinders
ManufacturerOx Bodies
FunctionDump Hoist / Body Raise / Tipping
TypeDump

S74DC-75-135 (Commercial / Parker) Replacement SAT Dump Hoist Cylinder Product Data

Weight415 lbs
Base End Mount Type

Cross-Tube

Base Mount Width

8.25″

Base Pin Size

2.00″

Closed

48.44″

Open Extended Length

183.44″

Retract Port/Plunger

1.00" NPT

Rod End Mount Type

Drilled Thru Lug

Rod Mount Width

2.00″

Rod Pin Size

2.00″

Tele Largest Stage OD

7″

Telescopic Number of Stages

4

Telescopic Stroke

135″

Description

The following cylinders are compatible replacements for replacement part number 3772514121.

Reference Part NumberHCI Part NumberReference NameEquipment ManufacturerEquipment ModelEquipment TypeIndustryReplacement NameCylinder TypeCylinder Function
16046573772514121Ox Bodies / Tbei IncOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
37725140703772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
37725141093772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
37725141213772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
S74DC-40-135-OX3772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
S74DC-61-1353772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
S74DC-68-1353772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
S74DC-75-1353772514121Commercial / ParkerOx BodiesDumpTruck EquipmentCommercial / ParkerSATDump Hoist, Body Raise, Tipping
