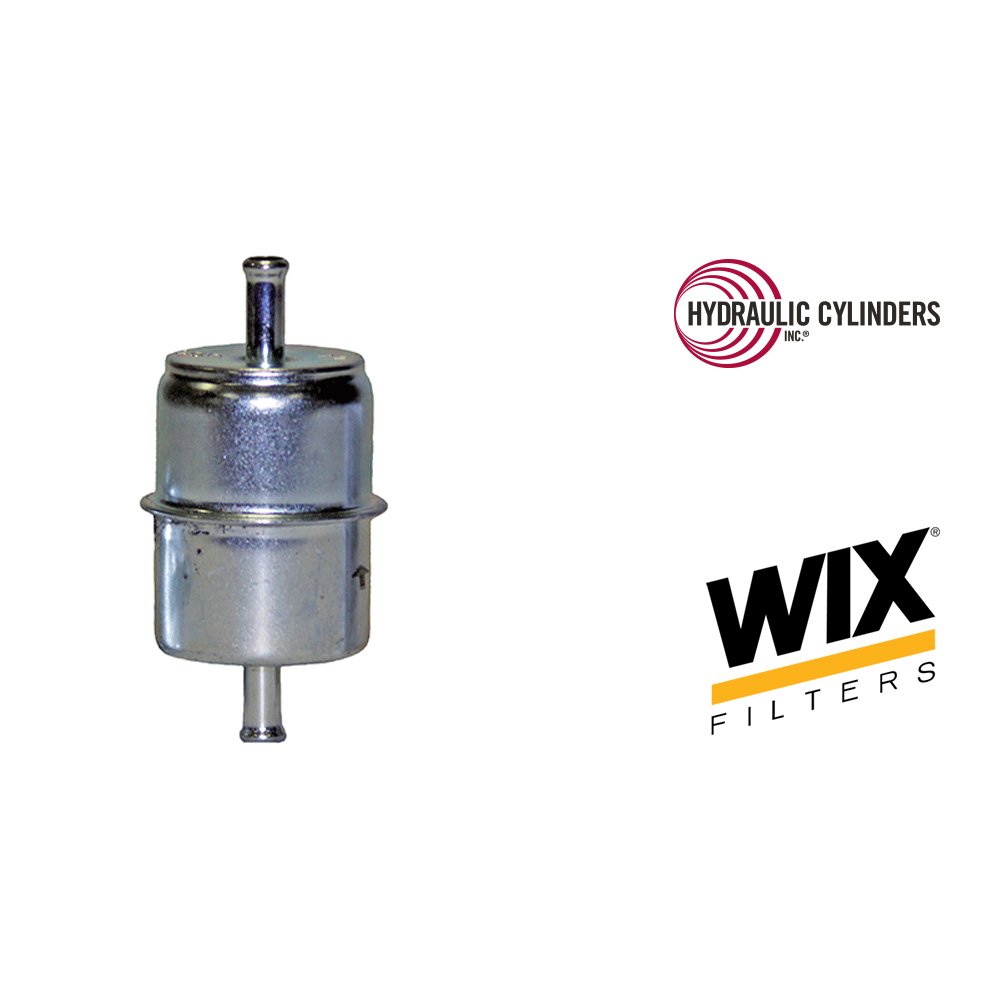

WIX 33012 Fuel (Complete In-Line) Filter | 20 Micron
$6.35 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 33012
| Category | Wix Filters » WIX Fuel Filters |
|---|---|
| Fits Manufacturer | Wix |
| Models | Bobcat 425, Bobcat 428, Bobcat 430, Bobcat 435, Bobcat B300, Bobcat E17Z, Bobcat E27z |
| Function | Filtration |
| SKU | 33012 |
|---|---|
| UPC | 765809330122 |
| Weight | 3.0 lbs |
| Height | 3.863" / 98mm |
|---|---|
| Outer Diameter Top | 1.937" / 49mm |
| Inlet | 5/16 |
| Outlet | 5/16 |
| Nominal Micron Rating | 20 |
Description
The WIX 33012 fuel (complete in-line) filter is a genuine WIX fuel filter built for on-highway, agricultural, and off-road engines. It uses cellulose media rated at 20 microns (UPC 765809330122).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 33012 alongside the heavy equipment we already supply parts for. It fits engines found in John Deere, Bobcat, Genie, Massey-Ferguson machines, plus trucks and automobiles — the full fitment list is below.
Principle Applications: Same as 33032 w/o Hoses and Clamps – for plastic version, use part # 33002 & (use with gasoline only) – for diesel, use part # 33972.
Not sure the 33012 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Height:
3.863" / 98mm
Outer Diameter Top:
1.937" / 49mm
Inlet:
5/16
Outlet:
5/16
Nominal Micron Rating:
20
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Amf ALL EXCEPT XX1800 | Snowmobiles | – | – |
| Blaw-Knox 25 (ROAD WIDENER) | Paving Equipment | – | w / Ford V4 Engine |
| Blaw-Knox PF25 (PAVER) | Paving Equipment | – | w / Ford V4 Engine |
| Bobcat 425 | Excavators | – | w / Kubota V1505-iDi-NA Engine |
| Bobcat 428 | Excavators | – | w / Kubota V1505-iDi-NA Engine |
| Bobcat 430 | Excavators | – | – |
| Bobcat 430 ZHS | Excavators | – | w / Kubota V2203 Engine |
| Bobcat 435 | Excavators | – | – |
| Bobcat 435 ZHS | Excavators | – | w / Kubota V2203 Engine |
| Bobcat E17Z | Excavators | – | w / Kubota D722-E2B-BCZ-7 Engine |
| Bobcat E27Z | Excavators | – | L3 1.123L 69CID |
| Bobcat B100B | Loaders | – | w / Kubota D1105 Engine |
| Bobcat B200 | Loaders | – | w / Kubota D1105 Engine |
| Bobcat B300 | Loaders | – | w / Kubota V2203 (2.2L) Engine |
| Bobcat V923 | Telescopic Handlers | – | L4 |
| Bomag BP19 | Rollers | – | w / Hatz Engine |
| Bomag BP30 | Rollers | – | w / Hatz Engine |
| Bomag BP48 | Rollers | – | w / Hatz Engine |
| Bomag BW125ADH | Rollers | – | w / Deutz 2.05L (125 CID) Engine |
| Bomag BW135AD | Rollers | – | w / Deutz 2.05L (125 CID) Engine |
| Bomag BW138AC | Rollers | – | w / Deutz 2.05L (125 CID) Engine |
| Bomag BW62H | Rollers | – | w / Hatz 1D41S Engine |
| Bomag BW65H | Rollers | – | w / Hatz 1D40 Engine |
| Bomag BPH80/65 | Vibratory Plates/Tampers | – | w / Hatz 1D90 Engine |
| Bomag BPH80/65S | Vibratory Plates/Tampers | – | w / Hatz 1D90 Engine |
| Bomag BPR100/80D | Vibratory Plates/Tampers | – | w / Hatz 1D90 Engine |
| Bomag BPR65/70D | Vibratory Plates/Tampers | – | w / Hatz 1D81 Engine |
| Bomag BPR70/70D | Vibratory Plates/Tampers | – | w / Hatz 1D81 Engine |
| Bomag BPR75/60D-2 | Vibratory Plates/Tampers | – | w / Hatz 1D81 Engine |
| Bomag BPR75/60D-3 | Vibratory Plates/Tampers | – | w / Hatz 1D81 Engine |
| Buick GRAN SPORT | – | 1965 – 1965 | V8 4.9L 300 CID |
| Buick GRAN SPORT | – | 1965 – 1965 | V8 6.6L 401 CID |
| Buick GRAN SPORT | – | 1965 – 1965 | V8 7.0L 425 CID |
| Buick INVICTA | – | 1963 – 1963 | V8 6.6L 6572cc 401 CID |
| Buick SKYLARK | – | 1963 – 1963 | V8 3.5L 215 CID |
| Buick SKYLARK | – | 1965 – 1965 | V6 3.7L 225 CID |
| Buick SPORT WAGON | – | 1964 – 1965 | V8 4.9L 300 CID |
| Chrysler IMPERIAL | – | 1957 – 1957 | V8 6.4L 6425CC 392CID |
| Chrysler NEWPORT | – | 1957 – 1958 | V8 5.8L 354 CID |
| Chrysler NEWPORT | – | 1957 – 1958 | V8 6.4L 6425CC 392CID |
| Chrysler SARATOGA | – | 1957 – 1958 | V8 5.8L 354 CID |
| Chrysler TOWN & COUNTRY | – | 1958 – 1958 | V8 5.8L 354 CID |
| Chrysler TOWN & COUNTRY | – | 1958 – 1958 | V8 6.4L 6424cc 392 CID |
| Chrysler TOWN & COUNTRY | – | 1972 – 1972 | V8 6.6L 400 CID |
| Chrysler WINDSOR | – | 1957 – 1958 | V8 5.8L 354 CID |
| Cub Cadet 1782 | (Also See IHC+Lawn & Garden) | – | w / Kubota 17 HP Engine |
| Dixon GRIZZLY | Mowers | – | w/ |
| Dixon KODIAK SE 61 | Mowers | – | V2 |
| Dodge (Also See Ram) 330 | – | 1963 – 1964 | V8 5.9L 5899cc 360 CID |
| Ford COUNTRY SEDAN | – | 1961 – 1961 | L6 2.4L 144 CID |
| Ford COUNTRY SEDAN | – | 1961 – 1961 | L6 2.8L 170 CID |
| Ford COUNTRY SQUIRE | – | 1961 – 1961 | L6 2.4L 144 CID |
| Ford COUNTRY SQUIRE | – | 1961 – 1961 | L6 2.8L 170 CID |
| Ford COURIER SEDAN DELIVERY | – | 1954 – 1959 | L6 3.6L 223 CID |
| Ford P-350 | – | 1961 – 1961 | L6 2.8L 170 CID |
| Ford P-350 | – | 1962 – 1964 | L6 3.6L 223 CID |
| Ford P-350 | – | 1965 – 1966 | L4 3.6L 220 CID |
| Ford P100 | – | 1961 – 1961 | L6 2.4L 144 CID |
| Ford P100 | – | 1961 – 1961 | L6 2.8L 170 CID |
| Ford RANCH WAGON | – | 1961 – 1961 | L6 2.4L 144 CID |
| Ford RANCH WAGON | – | 1961 – 1961 | L6 2.8L 170 CID |
| Ford SKYLINER | – | 1957 – 1959 | L6 3.6L 223 CID |
| Ford 91 | Gasoline Industrial Engines | – | V 4 |
| General Motors V6 305C | – | – | – |
| General Motors V6 305E | – | – | – |
| General Motors V6 351C | – | – | – |
| General Motors V6 351M | – | – | – |
| Genie GS3384 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie GS3384 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford MSG425 Eng. |
| Genie GS3390 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie GS4390 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie GS4390 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford MSG425 Eng. |
| Genie GS5390 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie GS5390 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford MSG425 Eng. |
| Genie S40 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford DSG423 Eng. |
| Genie S40 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie S45 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford DSG423 Eng. |
| Genie S45 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie Z60/34 BOOM CRANE | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Genie Z80/60 | Lifts, Scissor Lifts, Telehandlers | – | w / Ford LRG425 Eng. |
| Hesston 520 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6000 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 620 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6200 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6400 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6450 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6455 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6465 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6500 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6550 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6555 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6600 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6610 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6650 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 6655 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 8100 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hesston 8200 | Windrowers | – | w / Chrysler HB225 Eng. |
| Hyster 60 SERIES | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H25XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H35XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H40XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster H40XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H40XM | Lift Trucks | – | w / Mazda 2.0L Gas Engine |
| Hyster H50XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster H50XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H50XM | Lift Trucks | – | w / Mazda 2.0L Gas Engine |
| Hyster H60XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster H60XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster H60XM | Lift Trucks | – | w / Mazda 2.0L Gas Engine |
| Hyster S40XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S40XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S40XL SPACESAVER | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S40XL SPACESAVER | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S50XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S50XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S50XL SPACESAVER | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S50XL SPACESAVER | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S60XL | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S60XL | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S60XL SPACESAVER | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S60XL SPACESAVER | Lift Trucks | – | w / Mazda M4-121G Engine |
| Hyster S60XL2 | Lift Trucks | – | w / GMC Engine |
| Hyster S60XM | Lift Trucks | – | w / GMC Gas Engine |
| Hyster S60XM | Lift Trucks | – | w / Mazda M4-121G Engine |
| Ihc Light Trucks SCOUT II | – | 1975 – 1975 | V8 6.4L 392 CID |
| Ingersoll-Rand BL275 | Wheel Loaders | – | L 3 1.1L 1123cc 68.5 CID |
| Ingersoll-Rand BL370 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Ingersoll-Rand BL375 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Ingersoll-Rand BL470 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Ingersoll-Rand BL475 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Ingersoll-Rand BL570 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Ingersoll-Rand BL575 | Wheel Loaders | – | L 4 2.2L 2196cc 134 CID |
| Isuzu AMIGO | – | 1989 – 1993 | L4 2.3L 2254cc |
| Isuzu PICKUP | – | 1981 – 1982 | L4 1.8L 1817cc |
| Isuzu PICKUP | – | 1983 – 1987 | L4 1.9L 1949cc |
| Isuzu PICKUP | – | 1986 – 1995 | L4 2.3L 2254cc |
| Isuzu TROOPER | – | 1984 – 1985 | L4 1.9L 1949cc |
| Isuzu TROOPER | – | 1986 – 1987 | L4 2.3L 2254cc |
| Isuzu KAG51 OHV | World Trucks | – | w / Isuzu G161AB Engine |
| Isuzu TFR16 | World Trucks | – | w / Isuzu 4ZD1 (2.3L) Engine |
| Isuzu TFR17 | World Trucks | – | w / Isuzu 4ZE1 (2.6L) Engine |
| Isuzu TFS17 | World Trucks | – | w / Isuzu 4ZE1 (2.6L) Engine |
| Isuzu TROOPER UBS13 | World Trucks | – | w / Isuzu G200Z (1.9L) Engine |
| Isuzu TROOPER UBS16 | World Trucks | – | w / Isuzu 4ZD1 (2.3L) Engine |
| Isuzu TROOPER UBS17 | World Trucks | – | w / Isuzu 4ZE1 (2.6L) Engine |
| Jensen-Healey HEALEY | – | 1973 – 1976 | L4 2.0L 120 CID |
| John Deere PROGATOR 2020A | – | 2010 – 2021 | 879cc Gas Engine |
| John Deere 1420 | Tractors (Includes Lawn & Garden) | – | w / Gas Eng. |
| John Deere 322 | Tractors (Includes Lawn & Garden) | – | w / Gas Eng. |
| John Deere F912 | Tractors (Includes Lawn & Garden) | – | w / Yanmar Eng. |
| Joy G100QP | Compressors | – | w / International C196 Eng. |
| Joy G185QP | Compressors | – | w / International C196 Eng. |
| Lancia SCORPION | – | 1976 – 1977 | All |
| Leroi 100 | Compressor | – | 1.3L 1300cc 79 CID |
| Lotus ECLAT | – | 1976 – 1979 | L4 2.0L (Turbo Charged Gas HP360 KW208 Mercedes-Benz ) |
| Lotus ELITE SERIES | – | 1976 – 1979 | L4 2.0L (Turbo Charged Gas HP360 KW208 Mercedes-Benz ) |
| Lotus ESPRIT | – | 1976 – 1979 | L4 2.0L (Turbo Charged Gas HP360 KW208 Mercedes-Benz ) |
| Lotus ESPRIT | – | 1980 – 1995 | L4 2.2L 2174cc |
| Lotus EUROPA | – | 1968 – 1971 | L4 1.5L |
| Lotus EUROPA | – | 1972 – 1972 | L4 1.6L 1565cc |
| Lotus EUROPA | – | 1973 – 1975 | L4 1.6L 1558cc |
| Massey-Ferguson MF655 | Swather/Windrower | – | w / Chrysler Gas Eng. |
| Massey-Ferguson MF785 | Swather/Windrower | – | w / Chrysler Gas Eng. |
| Massey-Ferguson MF885 | Swather/Windrower | – | w / Chrysler Gas Eng. |
| Mazda 1800 | – | 1970 – 1971 | L4 1.8L 1796cc |
| Mazda 626 | – | 1981 – 1983 | L4 2.0L 1970cc |
| Mazda GLC | – | 1981 – 1981 | L4 1.5L 1496CC |
| Mazda PICKUP B2000 | – | 1982 – 1982 | L4 2.0L 1970cc |
| Mazda RX-7 | – | 1981 – 1982 | R2 1.1L 1146cc |
| Omsteel 400 | Trenchers | – | w / Gas Eng. |
| Opel OPEL | – | 1969 – 1970 | L4 1.1L 1078cc |
| Opel OPEL | – | 1969 – 1970 | L4 1.9L 1897cc |
| Sakai CR270 | Compactors | – | V2 688CC 41.97CID |
| Subaru STAR | – | 1970 – 1971 | H4 1.1L 1088cc |
| Subaru STAR | – | 1970 – 1971 | H4 1.3L 1267cc |
| Sullair 125Q | Compressors | – | w / Toyota Gas Eng. |
| Toro GREENSMASTER 300 | Tractors & Turf Equipment | – | w / Kohler 16 HP Eng. |
| Toro GREENSMASTER 3000 | Tractors & Turf Equipment | – | w / Kohler 16 HP Eng. |
| Toro GREENSMASTER 3200 | Tractors & Turf Equipment | – | w / Mitsubishi Eng. |
| Toro GROUNDSMASTER 200 | Tractors & Turf Equipment | – | w / Mitsubishi 23 HP Eng. |
| Toro PARK MASTER 7 | Tractors & Turf Equipment | – | w / GMC Eng. |
| Toro SAND PRO 12 | Tractors & Turf Equipment | – | w / Gas Eng. |
| Toro SAND PRO 14 | Tractors & Turf Equipment | – | w / Gas Eng. |
| Toro SAND PRO 2000 | Tractors & Turf Equipment | – | w / Kohler 12 HP Eng. |
| Toro SAND PRO 3000 | Tractors & Turf Equipment | – | w / Kohler 12 HP Eng. |
| Toro WORKMAN 3000 | Tractors & Turf Equipment | – | w / Mitsubishi 27 HP Eng. |
| Toro WORKMAN 4200D | Tractors & Turf Equipment | – | – |
| Vermeer T600A | Equipment | – | 240 CID |
| Wacker RD7 | Rollers | – | w / Hatz 1D42S Eng. |
| Wacker RD7H | Rollers | – | w / Hatz 1D42S Eng. |
| Wacker RD7H-ES | Rollers | – | w / Hatz 1D42S Eng. |
| Wacker RD7H-S | Rollers | – | w / Hatz 1D42S Eng. |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 33977 Key-Way Style Fuel Manager Filter | 30 Micron
$35.36 In Stock -
WIX 33978 Key-Way Style Fuel Manager Filter | 2 Micron
$34.89 In Stock -
WIX 33979 Spin-On Fuel Filter | 1-14 Thread, 2 Micron
$126.83 In Stock
