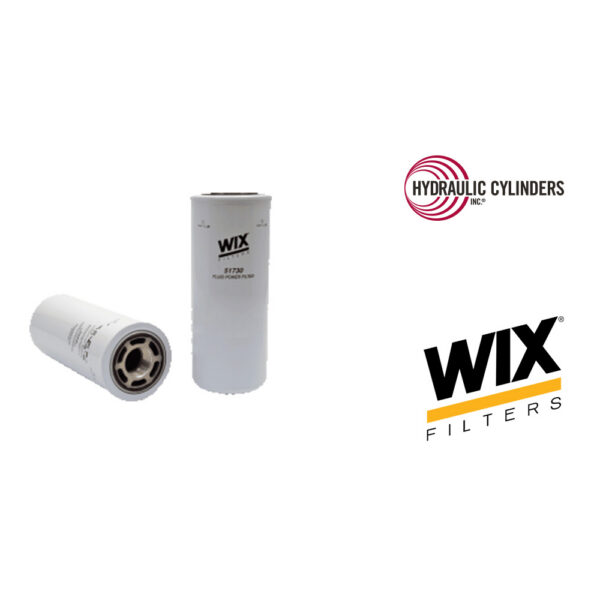

WIX 51730 Spin-On Hydraulic Filter | 1 3/4-12 Thread, 10 Micron
$118.81 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 51730
| Category | Wix Filters » WIX Hydraulic Filters |
|---|---|
| Fits Manufacturer | Wix |
| Models | Caterpillar 416B, Caterpillar 416C, Caterpillar 426C |
| Function | Filtration |
| SKU | 51730 |
|---|---|
| UPC | 765809517301 |
| Weight | 4.0 lbs |
| Type | Full Flow |
|---|---|
| Height | 11.63" / 295mm |
| Outer Diameter Top | 4.77" / 121mm |
| Beta Ratio | 2/75=10/22 |
| Burst Pressure-PSI | 800 |
| Max Flow Rate | 28-30 GPM |
| Nominal Micron Rating | 10 |
| Gasket Type | Attached |
| Gasket O.D. | 3.340" / 85mm |
| Gasket I.D. | 3.110" / 79mm |
| Gasket Thickness | 0.140" / 4mm |
| Thread Size | 1 3/4-12 |
Description
The WIX 51730 spin-on hydraulic filter is a genuine WIX hydraulic filter built for demanding hydraulic systems. It uses synthetic media rated at 10 microns with a 1 3/4-12 thread (UPC 765809517301).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 51730 alongside the heavy equipment we already supply parts for. It fits the hydraulic systems on Caterpillar, New Holland, Volvo, Doosan, Gehl machines — the full fitment list is below.
Principle Applications: Caterpillar, Challenger, New Holland, Volvo, Other Equipment – 10 Micron – (51731 is 5 micron version).
Not sure the 51730 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Type:
Full Flow
Height:
11.63" / 295mm
Outer Diameter Top:
4.77" / 121mm
Beta Ratio:
2/75=10/22
Burst Pressure-PSI:
800
Max Flow Rate:
28-30 GPM
Nominal Micron Rating:
10
Gasket Type:
Attached
Gasket O.D.:
3.340" / 85mm
Gasket I.D.:
3.110" / 79mm
Gasket Thickness:
0.140" / 4mm
Thread Size:
1 3/4-12
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Barko 160D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / Cummins 4BTA3.9 Turbo Engine |
| Barko 160D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / Cummins 6BTA5.9 Turbo Engine |
| Barko 160D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / John Deere 6059T Turbo Engine |
| Barko 160D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / John Deere 6068T Turbo Engine |
| Barko 200D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / Cummins 4BTA3.9 Turbo Engine |
| Barko 200D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / Cummins 6BTA5.9 Turbo Engine |
| Barko 200D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / John Deere 6059T Turbo Engine |
| Barko 200D TRUCK/TRAILER MOUNTED | Forestry Equipment | – | w / John Deere 6068T Turbo Engine |
| Bell B40B ARTICULATED DUMP TRUCK | Equipment | – | w / Mercedes ADE442TI Engine |
| Bell B40C ARTICULATED DUMP TRUCK | Equipment | – | w / Mercedes ADE442TI Engine |
| Caterpillar D4E SR 2DJ01400-ON | Crawler Tractors | – | w / Caterpillar Engine |
| Caterpillar D6FSR 5FR-ON | Crawler Tractors | – | w / Caterpillar Engine |
| Caterpillar D6G 2MJ-ON | Crawler Tractors | – | w / Caterpillar Engine |
| Caterpillar D6G 3SR-ON | Crawler Tractors | – | w / Caterpillar Engine |
| Caterpillar D6G BWJ-ON | Crawler Tractors | – | w / Caterpillar 3306 Engine |
| Caterpillar D6G2 C6G-ON | Crawler Tractors | – | w / Caterpillar 3306 Engine |
| Caterpillar D6G2 P6G-ON | Crawler Tractors | – | w / Caterpillar 3306 Engine |
| Caterpillar 416B | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 416B 8SG-11999 | Loaders | – | w / Perkins 4.236 Engine |
| Caterpillar 416B 8SG12000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416B 8ZK-05999 | Loaders | – | w / Perkins Engine |
| Caterpillar 416B 8ZK06000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 416C 1AR-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1BR-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1KR-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1LR-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1WR-08115 | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1XR-02183 | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 1XR02250-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 4ZN-16043 | Loaders | – | w / Perkins Engine |
| Caterpillar 416C 5YN-15147 | Loaders | – | w / Perkins Engine |
| Caterpillar 424D BGP00648-01612 | Loaders | – | w / Caterpillar 3054B Engine |
| Caterpillar 424D BKR00529-00562 | Loaders | – | w / Caterpillar 3054B Engine |
| Caterpillar 426B 5YJ-02299 | Loaders | – | w / Perkins 4.236 Engine |
| Caterpillar 426B 5YJ02300-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 426B 6KL-01199 | Loaders | – | w / Perkins Engine |
| Caterpillar 426B 6KL01200-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 426C | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 426C 1CR-00863 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1ER-00863 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1ER00900-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1MR-00955 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1NR-00953 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1NR01050-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1YR-01516 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1ZR-00925 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 1ZR01000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 6XN-03615 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 7WN-00938 | Loaders | – | w / Perkins Engine |
| Caterpillar 426C 7WN01100-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 428B 3KK-02999 | Loaders | – | w / Perkins Engine |
| Caterpillar 428B 7EJ-05999 | Loaders | – | w / Perkins Engine |
| Caterpillar 428B 7EJ06000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 428C 1HR-00300 | Loaders | – | w / Perkins Engine |
| Caterpillar 428C 8RN-04088 | Loaders | – | w / Perkins Engine |
| Caterpillar 432D BLD-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436B 6MJ1-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436B 7FL-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1FR-01415 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1FR11415 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1GR-00915 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1GR00950-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1GR1915 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1GR950 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1PR-01598 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1PR11598 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1RR-00997 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1RR00998-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 1RR1997 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 1RR998 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 2AR-01603 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 2AR11603 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 2BR-00910 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 2BR00911-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 2BR1910 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 2BR911 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 8TN-00924 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 8TN1924 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 9JN-00883 | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 9JN00884-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 436C 9JN1883 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 436C 9JN884 | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 438B 3KK-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 438B 3KK03000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 1JR-01106 | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 1TR-01283 | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 1TR01550-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 2DR-02716 | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 2DR03250-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 438C 9KN-01060 | Loaders | – | w / Perkins Engine |
| Caterpillar 438D BPE-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 438D BPN-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 442D BRG-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 442D BRY-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 446B 5BL-02499 | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 446B 5BL02500-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 916B | Loaders | – | w / Caterpillar Engine |
| Caterpillar 953C 2ZN1-942 | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 972H | Loaders | – | L6 8.8L 8800CC 537CID |
| Caterpillar 973C 3RZ-ON | Loaders | – | L6 8.8L 8800CC 537CID |
| Caterpillar PM465 5ZS-ON | Paving Equipment | – | w / Caterpillar 3406 Engine |
| Caterpillar RM500 ASW-ON | Paving Equipment | – | w / Caterpillar C15 Engine |
| Caterpillar TH103 3PN00001-02026 | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH62 3LN-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH62 4TM00001-04013 | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH63 3NN-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH63 5WM-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH82 3JN-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH82 3KN-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TH83 3RN-ON | Telehandlers | – | w / Caterpillar 3054 Engine |
| Caterpillar TL1055 | Telehandlers | – | L4 4.4L 4400CC 269CID |
| Caterpillar TL1055C | Telehandlers | – | L4 4.4L 4400CC 269CID |
| Caterpillar AD30 | Trucks-Articulated Rear Dump | – | L6 15.2L |
| Caterpillar AD45B CXM-ON | Trucks-Articulated Rear Dump | – | w / Caterpillar Engine |
| Caterpillar AD55 ANW-ON | Trucks-Articulated Rear Dump | – | w / Caterpillar C18 Engine |
| Caterpillar AD55 DNW-ON | Trucks-Articulated Rear Dump | – | w / Caterpillar Engine |
| Caterpillar 793B 1HL-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C 4AR-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C 4GZ-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C ATY-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 621G ALP-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 621G CEN-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 621G DBB-ON | Wheel Tractors and Scrapers | – | w / Caterpillar C15 Engine |
| Caterpillar 627G AXF-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 627G AYK-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3306 Engine |
| Caterpillar 627G AYK-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 627G CEX-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 627G DBD-ON | Wheel Tractors and Scrapers | – | w / Caterpillar C15 Engine |
| Caterpillar 631G AWK-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3408E Engine |
| Caterpillar 631G CLR-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3408E Engine |
| Caterpillar 631G DFA-ON | Wheel Tractors and Scrapers | – | w / Caterpillar C18 Engine |
| Caterpillar 633E SERIES II 1EB-00309 | Wheel Tractors and Scrapers | – | w / Caterpillar Engine |
| Caterpillar 633E SERIES II 2PS-ON | Wheel Tractors and Scrapers | – | w / Caterpillar Engine |
| Caterpillar 637G AXT-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3408E Engine |
| Caterpillar 637G CEH-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3408E Engine |
| Caterpillar 637G DFJ-ON | Wheel Tractors and Scrapers | – | w / Caterpillar C18 Engine |
| Caterpillar 651E 5XR-ON | Wheel Tractors and Scrapers | – | w / Caterpillar Engine |
| Caterpillar 657G A4G-on (Tractor) | Wheel Tractors and Scrapers | – | w / Caterpillar C18 Engine |
| Caterpillar 657G W1B-on (Tractor) | Wheel Tractors and Scrapers | – | w / Caterpillar C18 Engine |
| Caterpillar 657G W1C-on (Tractor) | Wheel Tractors and Scrapers | – | w / Caterpillar C18 Engine |
| Challenger CHALLENGER 35 8DN-204 | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 8DN205-548 | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 8DN549-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35NA 1DR1-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 1DR-204 | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 1DR1106-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 1DR205-1105 | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45NA 8DN1-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 55 7DM-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 55NA 7DM1-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 65 | Farm Tractors | – | w / Caterpillar 3306TA Engine |
| Challenger CHALLENGER 65 7YC1-ON | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 65B 7YC-ON | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 65C | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 65D | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 65E 1GM-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 65E 6GS-ON | Farm Tractors | – | w / Caterpillar 3176C Engine |
| Challenger CHALLENGER 65EUS 6GS1-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 70C | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 70CUS 2YL1-ON | Farm Tractors | – | w / Caterpillar 3306 Engine |
| Challenger CHALLENGER 75 | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75B | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75C | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75D | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75DUS 5AR1-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75E | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75E 1HM-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75E 6HS-ON | Farm Tractors | – | w / Caterpillar 3176C Engine |
| Challenger CHALLENGER 75EUS 6HS1-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 75US 4CJ1-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 85C | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 85CUS 9TK1-ON | Farm Tractors | – | w / Caterpillar 3176 Engine |
| Challenger CHALLENGER 85D | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 85E | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 85E 1NM-ON | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 85E 6JS-ON | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 85EUS 6JS1-ON | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 95E | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 95E 1SM-ON | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Challenger CHALLENGER 95E 6KS-ON | Farm Tractors | – | w / Caterpillar 3196 Engine |
| Champion 710 | (Also See Cleveland+Motor Graders) | – | w / Cummins 6BT5.9 Engine |
| Champion 710A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6BT5.9 Engine |
| Champion 710A | (Also See Cleveland+Motor Graders) | – | w / Cummins V378 Engine |
| Champion 716A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6BT5.9 Engine |
| Champion 720 | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 720A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 720AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 720VHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 726 | (Also See Cleveland+Motor Graders) | – | – |
| Champion 726A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 726AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 730 | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 730A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 730AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 730VHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 736A | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 736AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins 6CT8.3 Engine |
| Champion 740 | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 740 | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 740A | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 740A | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 740AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 740AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 740VHP | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 740VHP | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 750A | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 750A | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 750AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 750AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 780A | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 780A | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Champion 780AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins L10 Engine |
| Champion 780AVHP | (Also See Cleveland+Motor Graders) | – | w / Cummins M11 Engine |
| Doosan/Daewoo MEGA 400-III | Loaders | – | (Turbo D2366T Diesel Mfr Daewoo ) |
| Ford 8670 | Wheel Tractors (Including Lawn & Garden) | – | L 6 7.5L 7472cc 456 CID |
| Ford 8770 | Wheel Tractors (Including Lawn & Garden) | – | L 6 7.5L 7472cc 456 CID |
| Ford 8870 | Wheel Tractors (Including Lawn & Garden) | – | L 6 7.5L 7472cc 456 CID |
| Ford 8970 | Wheel Tractors (Including Lawn & Garden) | – | L 6 7.5L 7472cc 456 CID |
| Gehl 7600 | Skid Steer/Track Loaders | – | w / Yanmar 4TNE106 Eng. |
| Gehl 7610 | Skid Steer/Track Loaders | – | w / Perkins 1104C-44 Eng. |
| Gehl 7710 | Skid Steer/Track Loaders | – | w / Perkins 1104C-44 Eng. |
| Gehl 7800 TURBO | Skid Steer/Track Loaders | – | w / Yanmar 4TNE106T Eng. |
| Grove CD3330F (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove CD3330F (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove CD3330F (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD3330FL (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove CD3330FL (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove CD3330FL (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD3339 (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove CD3339 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove CD3339 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD3340 (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove CD3340 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove CD3340 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD5540F (MOBILE INDUSTRIAL) | Cranes | – | 4.3L 4300cc 262 CID |
| Grove CD5540F (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove CD5540F (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD5560B (MOBILE INDUSTRIAL) | Cranes | – | 4.3L 4300cc 262 CID |
| Grove CD5560B (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.9 Eng. |
| Grove CD5560B (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove CD5560B (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Eng. |
| Grove CD7725 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Tier III Eng. |
| Grove CD7755 (MOBILE (INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Tier III Eng. |
| Grove YB4409 (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove YB4409 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove YB4409 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB4409-2 (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove YB4409-2 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove YB4409-2 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB4409XL (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove YB4409XL (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove YB4409XL (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB4411 (MOBILE INDUSTRIAL) | Cranes | – | 3.0L 3000cc 183 CID |
| Grove YB4411 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove YB4411 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB5515 (MOBILE INDUSTRIAL) | Cranes | – | 4.3L 4300cc 262 CID |
| Grove YB5515 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.3C Eng. |
| Grove YB5515 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB5518 (MOBILE INDUSTRIAL) | Cranes | – | 4.3L 4300cc 262 CID |
| Grove YB5518 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel 4B3.9 Eng. |
| Grove YB5518 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB3.3 Eng. |
| Grove YB5518 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Eng. |
| Grove YB7722 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Tier III Eng. |
| Grove YB7722XL (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Tier III Eng. |
| Grove YB7725 (MOBILE INDUSTRIAL) | Cranes | – | w / Cummins Diesel QSB4.5 Tier III Eng. |
| Ingersoll-Rand P750 | Compressors | – | – |
| Ingersoll-Rand CM695D | Drills | – | w / Caterpillar Diesel 3306DITA Eng. |
| Ingersoll-Rand ECM350 | Drills | – | w / Cummins Diesel Eng. |
| Ingersoll-Rand ECM370 | Drills | – | w / Cummins Diesel Eng. |
| Ingersoll-Rand ECM375D | Drills | – | – |
| Ingersoll-Rand ECM490 | Drills | – | w / Cummins Diesel Eng. |
| Ingersoll-Rand ECM590 | Drills | – | 8.3L 8300cc 506 CID |
| Ingersoll-Rand ECM680 CRAWLER | Drills | – | w / Cummins Diesel 6CTA8.3 Eng. |
| Ingersoll-Rand ECM690 CRAWLER | Drills | – | w / Caterpillar Diesel 3306 Eng. |
| Linde C360 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C360 | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| Linde C360/3 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C360/4 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C360/5 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C400 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C400 | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| Linde C400-10 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C400/3 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C400/4 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde C4026 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4026 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde C4026CH | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| Linde C4030 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4030 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde C4130TL | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| Linde C4230 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4230 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde C4234 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4234 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde C4235 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4235 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde C4531 | Forklifts | – | w / Volvo Diesel TWD1031VE Eng. |
| Linde C4531 | Forklifts | – | w / Volvo Diesel TWD1240VE Eng. |
| Linde H420 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde H420 | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| Linde H460 | Forklifts | – | w / Cummins Diesel QSB11 Eng. |
| Linde H460 | Forklifts | – | w / Perkins 2000E (RR) Eng. |
| New Holland 555D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 575D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 655D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 675D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 8670 | Tractors | – | w / NH 6/456 Engine |
| New Holland 8670A | Tractors | – | w / NH 6/456 Engine |
| New Holland 8770 | Tractors | – | w / NH 6/456 Engine |
| New Holland 8770A | Tractors | – | w / NH 6/456 Engine |
| New Holland 8870 | Tractors | – | w / NH 6/456 Engine |
| New Holland 8870A | Tractors | – | w / NH 6/456 Engine |
| New Holland 8970 | Tractors | – | w / NH 6/456 Engine |
| New Holland 8970A | Tractors | – | w / NH 6/456 Engine |
| New Holland G170 | Tractors | – | – |
| New Holland G190 | Tractors | – | – |
| New Holland G210 | Tractors | – | – |
| New Holland G240 | Tractors | – | – |
| Owatonna-Mustang 2095 | Loaders | – | w / Yanmar 4TNE106 Eng. |
| Owatonna-Mustang 2105 | Loaders | – | w / Yanmar 4TNE106 Eng. |
| Prentice 2430 | Loaders | – | w / Cummins 173 HP Diesel QSB Tier III Eng. |
| Prentice 2432 | Loaders | – | w / Cummins 173 HP Diesel QSB Tier III Eng. |
| Prentice 2432 | Loaders | – | w / Cummins Diesel Tier II Eng. |
| Sandvik TORO 007 | Drilling Equipment | – | L4 8.5L 8500CC 519CID |
| Sandvik TORO 300D | Drilling Equipment | – | V8 12.8L 12800CC 781CID |
| Sandvik TORO 301DL | Drilling Equipment | – | L6 9.6L 9570CC 584CID |
| Sandvik TORO 400D | Drilling Equipment | – | V10 15.9L 15900CC 970CID |
| Thomas Buses SAF-T-LINER | – | 2009 – 2009 | L6 8.9L 543CID |
| Timber Jack 560 | Logging Equipment | – | L6 5.9L 5900CC 360CID |
| Versatile/Buhler 836 | Tractors | – | w / Cummins Diesel Eng. |
| Versatile/Buhler 856 | Tractors | – | w / Cummins Diesel Eng. |
| Versatile/Buhler 876 | Tractors | – | w / Cummins Diesel Eng. |
| Versatile/Buhler 946 | Tractors | – | w / Cummins NTA855 Eng. |
| Versatile/Buhler 956 | Tractors | – | w / Cummins NTA855 Eng. |
| Versatile/Buhler 976 | Tractors | – | w / Cummins NTA855 Eng. |
| Volvo L110E | Backhoe Loaders, Loaders | – | 7.1L 7145cc 436 CID |
| Volvo L110F | Backhoe Loaders, Loaders | – | 7.1L 7145cc 436 CID |
| Volvo L110G | Backhoe Loaders, Loaders | – | 7.8L 7800cc 476 CID |
| Volvo L110H | Backhoe Loaders, Loaders | – | L6 |
| Volvo L120E | Backhoe Loaders, Loaders | – | 7.1L 7145cc 436 CID |
| Volvo L120F | Backhoe Loaders, Loaders | – | 7.1L 7145cc 436 CID |
| Volvo L120G | Backhoe Loaders, Loaders | – | 7.8L 7800cc 476 CID |
| Volvo L120H | Backhoe Loaders, Loaders | – | L6 |
| Volvo L150E | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L150E | Backhoe Loaders, Loaders | – | 9.4L 9390cc 573 CID |
| Volvo L150E | Backhoe Loaders, Loaders | – | 9.6L 9603cc 586 CID |
| Volvo L150F | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L150G | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L150H | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L180E | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L180E HL | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L180F | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L180F HL | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L180G | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L180G HL | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L180H | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L200H | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L220D | Backhoe Loaders, Loaders | – | 12.0L 11995cc 732 CID |
| Volvo L220E | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L220F | Backhoe Loaders, Loaders | – | 12.1L 12094cc 738 CID |
| Volvo L220G | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L220H | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L250G | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L260H | Backhoe Loaders, Loaders | – | 12.8L 12798cc 781 CID |
| Volvo L90E | Backhoe Loaders, Loaders | – | 5.7L 5703cc 348 CID |
| Volvo L90E OR | Backhoe Loaders, Loaders | – | 5.7L 5703cc 348 CID |
| Volvo ECR38 | Excavators | – | 1.6L 1639cc 100 CID |
| Volvo G710 | Motor Graders | – | 5.9L 5883cc 359 CID |
| Volvo G710 VHP | Motor Graders | – | 5.9L 5883cc 359 CID |
| Volvo G710B | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G716 VHP | Motor Graders | – | 5.9L 5883cc 359 CID |
| Volvo G720 | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G720 VHP | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G720B | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G726 VHP | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G726B | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G730 | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G730 VHP | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G730B | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G736 VHP | Motor Graders | – | 8.3L 8259cc 504 CID |
| Volvo G740 | Motor Graders | – | 10.8L 10815cc 660 CID |
| Volvo G740 VHP | Motor Graders | – | 10.8L 10815cc 660 CID |
| Volvo G740B | Motor Graders | – | 9.6L 9603cc 586 CID |
| Volvo G746B | Motor Graders | – | 9.6L 9603cc 586 CID |
| Volvo G780 | Motor Graders | – | 10.8L 10815cc 660 CID |
| Volvo G780 VHP | Motor Graders | – | 10.8L 10815cc 660 CID |
| Volvo G780B | Motor Graders | – | 9.6L 9603cc 586 CID |
| Volvo G930 | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G930B | Motor Graders | – | 7.8L 7800cc 476 CID |
| Volvo G940 | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G940B | Motor Graders | – | 7.8L 7800cc 476 CID |
| Volvo G946 | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G946B | Motor Graders | – | 7.8L 7800cc 476 CID |
| Volvo G960 | Motor Graders | – | 7.1L 7145cc 436 CID |
| Volvo G960B | Motor Graders | – | 7.8L 7800cc 476 CID |
| Volvo G970 | Motor Graders | – | 9.4L 9390cc 573 CID |
| Volvo G976 | Motor Graders | – | 9.4L 9390cc 573 CID |
| Volvo G990 | Motor Graders | – | 9.4L 9390cc 573 CID |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 57900 Cartridge Hydraulic Metal Canister Filter | 21 Micron
$75.50 In Stock -
WIX 51494 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 5 Micron
$75.42 In Stock -
WIX 57247 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 2 Micron
$86.95 In Stock -
WIX 51323 Power Steering Cartridge Filter | 25 Micron
$13.45 In Stock
