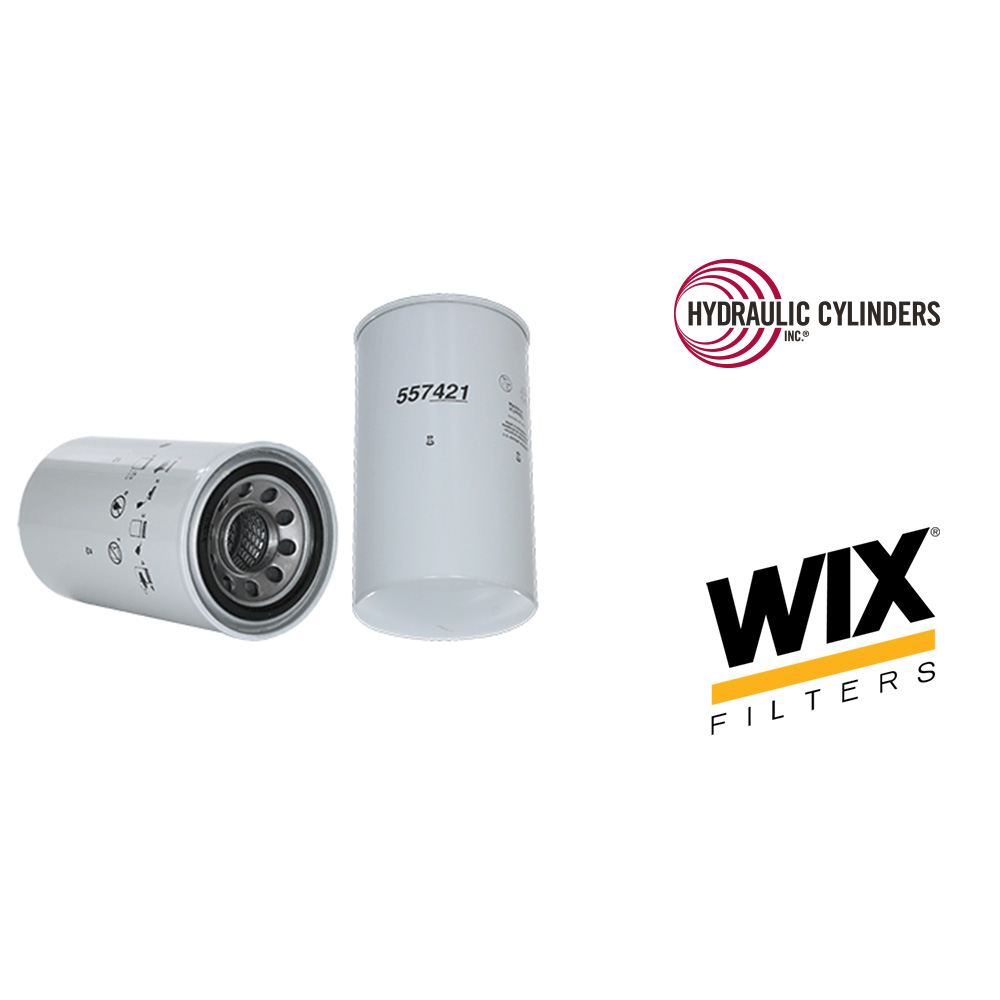

WIX 57421 Spin-On Hydraulic Filter | 1 3/4-16 Thread, 20 Micron

$59.85 In Stock

Buy Now, Pay Later Available in Checkout
Buy Now, Pay Later
Ships today with FastShip.
For order placed before Noon CST.

Specifications for 57421

CategoryWix Filters » WIX Hydraulic Filters
Fits Manufacturer Wix
Function Filtration
SKU 57421
UPC 765809574212
Weight 4.0 lbs

Type

Full Flow

Height

9.62" / 244mm

Outer Diameter Top

5.38" / 137mm

Filter Area

1860

By-Pass Valve Setting-PSI

15 PSI

Beta Ratio

2/75=20/45

Burst Pressure-PSI

400

Max Flow Rate

30-34 GPM

Nominal Micron Rating

20

Gasket Type

Attached

Gasket O.D.

4.290" / 109mm

Gasket I.D.

3.720" / 94mm

Gasket Thickness

0.210" / 5mm

Thread Size

1 3/4-16

Description

The WIX 57421 spin-on hydraulic filter is a genuine WIX hydraulic filter built for demanding hydraulic systems. It uses cellulose media rated at 20 microns with a 1 3/4-16 thread (UPC 765809574212).

Hydraulic Cylinders, Inc. (HCI) stocks the WIX 57421 alongside the heavy equipment we already supply parts for. It fits the hydraulic systems on Case, New Holland machines — the full fitment list is below.

Principle Applications: Case, Ford, New Holland Tractors.

Not sure the 57421 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.

Type:

Full Flow

Height:

9.62" / 244mm

Outer Diameter Top:

5.38" / 137mm

Filter Area:

1860

By-Pass Valve Setting-PSI:

15 PSI

Beta Ratio:

2/75=20/45

Burst Pressure-PSI:

400

Max Flow Rate:

30-34 GPM

Nominal Micron Rating:

20

Gasket Type:

Attached

Gasket O.D.:

4.290" / 109mm

Gasket I.D.:

3.720" / 94mm

Gasket Thickness:

0.210" / 5mm

Thread Size:

1 3/4-16

Make / Model Equipment Year Engine
Case / Case-Ih 105U FARMALL Wheel Tractors L4 3.4L 207 CID
Case / Case-Ih 115U FARMALL Wheel Tractors L4 3.4L 207 CID
Case / Case-Ih MAXXUM 110 Wheel Tractors L4 4.5L 4500CC 275CID
Case / Case-Ih MAXXUM 115 Wheel Tractors w / Case/IH 6.7L (411 CID) Engine
Case / Case-Ih MAXXUM 120 Wheel Tractors L4 4.5L 4500CC 275CID
Case / Case-Ih MAXXUM 130 Wheel Tractors L4 4.5L 4500CC 275CID
Case / Case-Ih MAXXUM 140 Wheel Tractors w / Case/IH 6.7L (411 CID) Engine
Case / Case-Ih MAXXUM 150 MULTICONTROLLER Wheel Tractors L6 7L 6700CC 409CID
Case / Case-Ih MXM120 Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM120 PRO Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM130 Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM130 PRO Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM140 Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM140 PRO Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM155 Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXM155 PRO Wheel Tractors w / Case 7.5L Engine
Case / Case-Ih MXU100 Wheel Tractors w / Case/IHC Engine
Case / Case-Ih MXU110 Wheel Tractors w / case 4.5L Engine
Case / Case-Ih MXU115 Wheel Tractors w / Cummins 6.7L Engine
Case / Case-Ih MXU125 Wheel Tractors w / Case 6.7L Engine
Case / Case-Ih MXU135 Wheel Tractors w / Case 6.7L Engine
Ford 5640 Wheel Tractors (Including Lawn & Garden) 4.4L 4392cc 268 CID
Ford 6640 Wheel Tractors (Including Lawn & Garden) 5.0L 4982cc 304 CID
Ford 6640S Wheel Tractors (Including Lawn & Garden) 5.0L 5000cc 305 CID
Ford 6640SL Wheel Tractors (Including Lawn & Garden) 5.0L 5000cc 305 CID
Ford 6640SLE Wheel Tractors (Including Lawn & Garden) 5.0L 5000cc 305 CID
Ford 7740 Wheel Tractors (Including Lawn & Garden) 5.0L 4982cc 304 CID
Ford 7740S Wheel Tractors (Including Lawn & Garden) 5.0L 4982cc 304 CID
Ford 7740SL Wheel Tractors (Including Lawn & Garden) 5.0L 4982cc 304 CID
Ford 7740SLE Wheel Tractors (Including Lawn & Garden) 5.0L 4982cc 304 CID
Ford 7840 Wheel Tractors (Including Lawn & Garden) 6.6L 6571cc 401 CID
Ford 8240 Wheel Tractors (Including Lawn & Garden) L 6 7.5L 7472cc 456 CID
Ford 8340 Wheel Tractors (Including Lawn & Garden) L 6 7.5L 7472cc 456 CID
New Holland 125 Tractors w / Diesel Eng.
New Holland 135 Tractors w / Diesel Eng.
New Holland 150 Tractors w / Diesel Eng.
New Holland 165 Tractors w / Diesel Eng.
New Holland 5640 Tractors w / New Holland Diesel 4/268 Eng.
New Holland 5640S Tractors w / New Holland Diesel 4/268 Eng.
New Holland 5640SL Tractors w / New Holland Diesel 4/268 Eng.
New Holland 5640SLE Tractors w / New Holland Diesel 4/268 Eng.
New Holland 6610S Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6640 Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6640 LOW PROFILE Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6640S Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6640SL Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6640SLE Tractors w / New Holland Diesel 4/304 Eng.
New Holland 6810S Tractors w / Diesel Eng.
New Holland 7010 Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7010 LOW PROFILE Tractors w / New Holland Diesel 4/304 Eng.
New Holland 740 Tractors
New Holland 740SLE Tractors
New Holland 7610S Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7740 Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7740 LOW PROFILE Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7740S Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7740SL Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7740SLE Tractors w / New Holland Diesel 4/304 Eng.
New Holland 7810S Tractors w / New Holland Diesel 6/401 Eng.
New Holland 7840 Tractors w / New Holland Diesel 6/401 Eng.
New Holland 7840 LOW PROFILE Tractors w / New Holland Diesel 6/401 Eng.
New Holland 7840S Tractors w / New Holland Diesel 6/401 Eng.
New Holland 7840SL Tractors w / New Holland Diesel 6/401 Eng.
New Holland 7840SLE Tractors w / New Holland Diesel 6/401 Eng.
New Holland 8160 Tractors w / NH 6/456 Engine
New Holland 8160RC Tractors w / Diesel Eng.
New Holland 8240 Tractors w / NH 6/456 Engine
New Holland 8240 (1996) Tractors
New Holland 8240S Tractors 456 CID
New Holland 8240SL Tractors w / NH 6/456 Engine
New Holland 8240SLE Tractors w / NH 6/456 Engine
New Holland 8260 Tractors w / NH 6/456 Engine
New Holland 8340 Tractors w / NH 6/456 Engine
New Holland 8340SL Tractors w / NH 6/456 Engine
New Holland 8340SLE Tractors w / NH 6/456 Engine
New Holland 8360 Tractors w / NH 6/456 Engine
New Holland 8560 Tractors w / NH 6/456 Engine
New Holland M100 Tractors w / GSD675 Eng.
New Holland M115 Tractors w / GSD675 Eng.
New Holland M135 Tractors w / Diesel Eng.
New Holland M135DT Tractors w / Diesel Eng.
New Holland M150 Tractors w / GSD675T Eng.
New Holland M160 Tractors w / Diesel Eng.
New Holland M160DT Tractors w / Diesel Eng.
New Holland T5.105 Tractors 3.4L 3392cc 207 CID
New Holland T5.115 Tractors 3.4L 3392cc 207 CID
New Holland T5.95 Tractors 3.4L 3392cc 207 CID
New Holland T6.140 Tractors 4.5L 4474cc 273 CID
New Holland T6.145 Tractors L4 4.5L 4490cc 274 CID
New Holland T6.150 Tractors 4.5L 4474cc 273 CID
New Holland T6.155 Tractors 6.7L 6735cc 411 CID
New Holland T6.160 Tractors 4.5L 4474cc 273 CID
New Holland T6.165 Tractors 6.7L 6735cc 411 CID
New Holland T6.175 Tractors 6.7L 6735cc 411 CID
New Holland T6.180 Tractors 6.7L 6735cc 411 CID
New Holland T6010 DELTA Tractors 4.5L 4485cc 273.7 CID
New Holland T6010 PLUS Tractors 4.5L 4485cc 273.7 CID
New Holland T6020 DELTA Tractors 4.5L 4474cc 273 CID
New Holland T6020 PLUS Tractors 4.5L 4474cc 273 CID
New Holland T6030 DELTA Tractors 6.7L 6735cc 411 CID
New Holland T6030 ELITE Tractors 6.7L 6735cc 411 CID
New Holland T6030 PLUS Tractors 6.7L 6735cc 411 CID
New Holland T6050 DELTA Tractors 6.7L 6735cc 411 CID
New Holland T6050 ELITE Tractors 6.7L 6735cc 411 CID
New Holland T6050 PLUS Tractors 6.7L 6735cc 411 CID
New Holland T6050 POWER COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6050 RANGE COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6070 ELITE Tractors 6.7L 6735cc 411 CID
New Holland T6070 PLUS Tractors 6.7L 6735cc 411 CID
New Holland T6070 POWER COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6070 RANGE COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6080 ELITE Tractors 6.7L 6735cc 411 CID
New Holland T6080 POWER COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6080 RANGE COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6090 POWER COMMAND Tractors 6.7L 6735cc 411 CID
New Holland T6090 RANGE COMMAND Tractors 6.7L 6735cc 411 CID
New Holland TB100 Tractors 5.0L
New Holland TB110 Tractors 5.0L
New Holland TB110 LOW PROFILE Tractors 5.0L
New Holland TB120 Tractors 7.5L
New Holland TB120 HIGH CLEARANCE Tractors 7.5L
New Holland TB120 LOW PROFILE Tractors 7.5L
New Holland TM115 Tractors w / Diesel 675TA Eng.
New Holland TM115 Tractors w / NH 6/456 Engine
New Holland TM125 Tractors w / Diesel 675TA Eng.
New Holland TM125 Tractors w / NH 6/456 Engine
New Holland TM130 Tractors w / NH 6/456 Engine
New Holland TM130 DELUXE Tractors w / NH 6/456 Engine
New Holland TM130 DELUXE SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM130 PLUS Tractors w / NH 6/456 Engine
New Holland TM130 PLUS SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM130 PREMIUM Tractors w / NH 6/456 Engine
New Holland TM130 STANDARD Tractors w / NH 6/456 Engine
New Holland TM135 Tractors w / Diesel 675TA Eng.
New Holland TM135 Tractors w / NH 6/456 Engine
New Holland TM140 Tractors w / NH 6/456 Engine
New Holland TM140 DELUXE Tractors w / NH 6/456 Engine
New Holland TM140 DELUXE SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM140 PLUS Tractors w / NH 6/456 Engine
New Holland TM140 PLUS SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM140 PREMIUM Tractors w / NH 6/456 Engine
New Holland TM140 STANDARD Tractors w / NH 6/456 Engine
New Holland TM150 Tractors w / Diesel 675TA Eng.
New Holland TM150 Tractors w / NH 6/456 Engine
New Holland TM155 Tractors w / NH 6/456 Engine
New Holland TM155 DELUXE Tractors w / NH 6/456 Engine
New Holland TM155 DELUXE SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM155 PLUS Tractors w / NH 6/456 Engine
New Holland TM155 PLUS SUPERSTEER Tractors w / NH 6/456 Engine
New Holland TM155 PREMIUM Tractors w / NH 6/456 Engine
New Holland TM165 Tractors w / Diesel 675TA Eng.
New Holland TM165 Tractors w / NH 6/456 Engine
New Holland TS100 Tractors w / Ford Diesel Eng.
New Holland TS100 Tractors w / New Holland Diesel 4/304 Eng.
New Holland TS100A Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS100A DELUXE Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS100A DELUXE Tractors w / New Holland Diesel 4/304 Eng.
New Holland TS100A PLUS Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS100A PLUS Tractors w / New Holland Diesel 4/304 Eng.
New Holland TS100A STANDARD Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS110 Tractors w / New Holland Diesel 4/304 Eng.
New Holland TS110A Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS110A STANDARD Tractors w / New Holland Diesel 4/273 Eng.
New Holland TS115 Tractors w / 675TJ Eng.
New Holland TS115 Tractors w / NH 6/456 Engine
New Holland TS115A Tractors 6.7L
New Holland TS115A DELUXE Tractors 6.7L
New Holland TS115A PLUS Tractors 6.7L
New Holland TS115A STANDARD Tractors 6.7L
New Holland TS125A Tractors 6.7L
New Holland TS125A DELUXE Tractors 6.7L
New Holland TS125A PLUS Tractors 6.7L
New Holland TS130A Tractors 6.7L
New Holland TS130A STANDARD Tractors 6.7L
New Holland TS80 Tractors w / Diesel Eng.
New Holland TS90 Tractors w / Ford Diesel Eng.

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

12 Month Warranty

WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.

Key Conditions

It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.

Warranty Exclusions

The warranty does not cover the following:

  • Use in competitive racing, modified high-performance engines, or aviation applications
  • Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
  • Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
  • Filters submitted in a condition that prohibits evaluation and testing
  • Costs of repairs not directly attributable to a defective filter
  • Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty

Liability Limitations

WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
