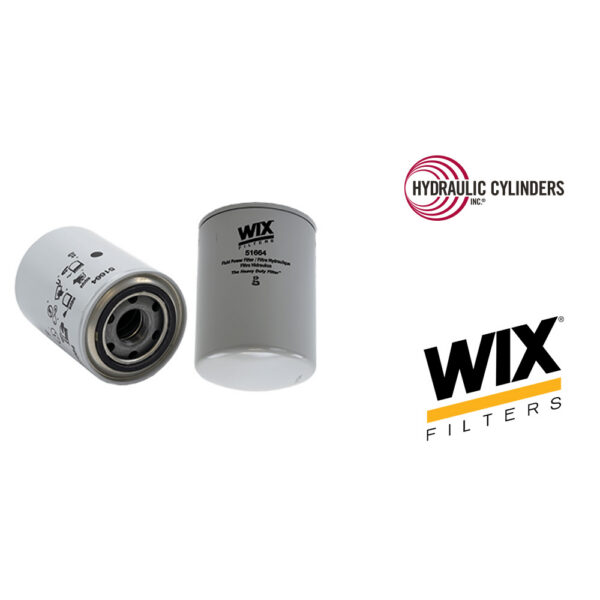

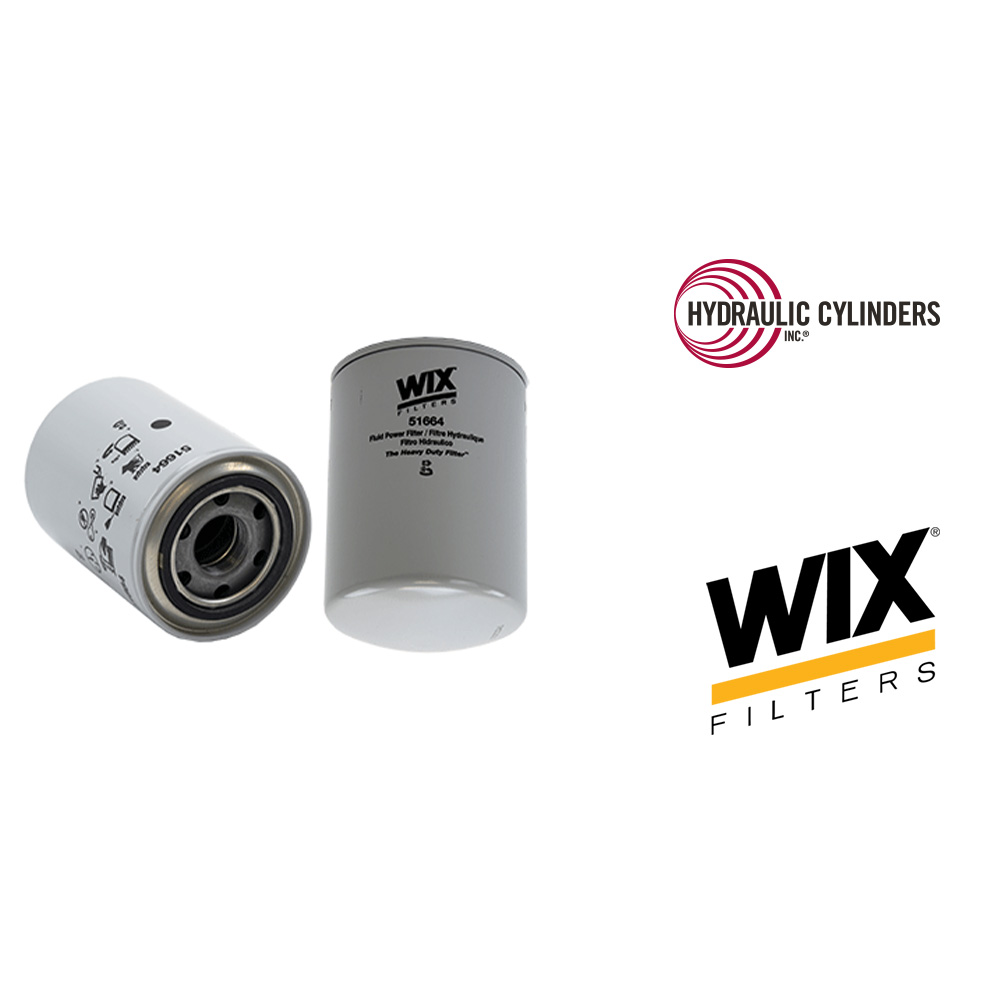

WIX 51664 Spin-On Hydraulic Filter | 1 1/8-16 Thread, 20 Micron
$15.34 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 51664
| Category | Wix Filters » WIX Hydraulic Filters |
|---|---|
| Fits Manufacturer | Wix |
| Models | Bobcat 320, Bobcat 320D, Bobcat 320G, Bobcat 322, Bobcat 322D, Bobcat 322G, Bobcat 323, Bobcat 324, Bobcat 325, Bobcat 328, Bobcat 331, Bobcat 334, Bobcat 418, Bobcat E08, Bobcat E10, Bobcat E14, Bobcat E16, John Deere 310E, John Deere 690C, John Deere 690CR, John Deere 690D, John Deere 690DR |
| Function | Filtration |
| SKU | 51664 |
|---|---|
| UPC | 765809516649 |
| Weight | 1.0 lbs |
| Type | Full Flow |
|---|---|
| Height | 5.214" / 132mm |
| Outer Diameter Top | 3.663" / 93mm |
| Beta Ratio | 2/20=18/32 |
| Burst Pressure-PSI | 325 |
| Max Flow Rate | 18-20 GPM |
| Nominal Micron Rating | 20 |
| Gasket Type | Attached |
| Gasket O.D. | 2.729" / 69mm |
| Gasket I.D. | 2.415" / 61mm |
| Gasket Thickness | 0.255" / 6mm |
| Thread Size | 1 1/8-16 |
Description
The WIX 51664 spin-on hydraulic filter is a genuine WIX hydraulic filter built for demanding hydraulic systems. It uses cellulose media rated at 20 microns with a 1 1/8-16 thread (UPC 765809516649).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 51664 alongside the heavy equipment we already supply parts for. It fits the hydraulic systems on Caterpillar, John Deere, Case, New Holland, Kubota, Bobcat machines — the full fitment list is below.
Principle Applications: Cessna Hydraulic Systems, Bobcat, Davis, Oliver, Racine, Clark Tow Trucks, Ford Tractors, John Deere, JCB, Kobelco, Hyundai, Other (20 Micron) (51663 is 10 micron version).
Not sure the 51664 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Type:
Full Flow
Height:
5.214" / 132mm
Outer Diameter Top:
3.663" / 93mm
Beta Ratio:
2/20=18/32
Burst Pressure-PSI:
325
Max Flow Rate:
18-20 GPM
Nominal Micron Rating:
20
Gasket Type:
Attached
Gasket O.D.:
2.729" / 69mm
Gasket I.D.:
2.415" / 61mm
Gasket Thickness:
0.255" / 6mm
Thread Size:
1 1/8-16
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Agco ST34A | Tractor | – | w / Iseki L3 1491cc (91.4CID) Diesel Engine |
| Agco ST35 HYDROSTATIC | Tractor | – | w / Iseki L3 1491cc (91.4CID) Diesel Engine |
| Agco ST40 HYDROSTATIC | Tractor | – | w / Iseki L3 1491cc (91.4CID) Diesel Engine |
| Agco ST41A | Tractor | – | w / Iseki L3 1491cc (91.4CID) Diesel Engine |
| Agco ST45 HYDROSTATIC | Tractor | – | w / Iseki L4 2197cc (134CID) Diesel Engine |
| Agco ST47A | Tractor | – | w / Iseki L4 2197cc (134CID) Diesel Engine |
| Agco ST52A | Tractor | – | w / Iseki L4 2849cc (180CID) Diesel Engine |
| Bobcat 220 S/N 11501-ON | Excavators | – | w / Kubota Engine |
| Bobcat 220 TO S/N 11500 | Excavators | – | w / Kubota Engine |
| Bobcat 225 S/N 12001-ON | Excavators | – | w / Kubota Engine |
| Bobcat 225 TO S/N 11999 | Excavators | – | w / Kubota Engine |
| Bobcat 231 S/N 12001-ON | Excavators | – | w / Kubota Engine |
| Bobcat 231 TO S/N 11999 | Excavators | – | w / Kubota Engine |
| Bobcat 319 | Excavators | – | w / Kubota D722 Engine |
| Bobcat 320 | Excavators | – | w / Kubota D722 Engine |
| Bobcat 320 | Excavators | – | w / Kubota D750 Engine |
| Bobcat 320D | Excavators | – | w / Kubota D722 Engine |
| Bobcat 320G | Excavators | – | w / Kubota D722 Engine |
| Bobcat 322 | Excavators | – | w / Kubota D722 Engine |
| Bobcat 322 | Excavators | – | w / Kubota D750 Engine |
| Bobcat 322D | Excavators | – | w / Kubota D722 Engine |
| Bobcat 322G | Excavators | – | w / Kubota D722 Engine |
| Bobcat 323 | Excavators | – | w / Kubota D722-E2B (Tier II) Engine |
| Bobcat 324 | Excavators | – | w / Kubota D722-E2B (Tier II) Engine |
| Bobcat 325 | Excavators | – | w / Kubota D1703 Engine |
| Bobcat 328 | Excavators | – | w / Kubota D1703 Engine |
| Bobcat 331 | Excavators | – | w / Kubota V2203 Engine |
| Bobcat 331E | Excavators | – | w / Kubota V2203 Engine |
| Bobcat 334 | Excavators | – | w / Kubota V2203 Engine |
| Bobcat 418 | Excavators | – | w / Kubota D722 Engine |
| Bobcat E08 | Excavators | – | w / Kubota D722-E2B-BCZ-6 Engine |
| Bobcat E10 | Excavators | – | w / Kubota D722-E2B-BCZ-6 Engine |
| Bobcat E14 | Excavators | – | w / Kubota D722-E2B-BC-5-SI |
| Bobcat E16 | Excavators | – | w / Kubota D722-E2B-BC-5-SI |
| Bobcat MT50 WALK BEHIND | Loaders | – | w / Kubota D722 Engine |
| Case / Case-Ih 30+4 FLEETLINE (DAVIS) | Cable Layer/Trencher | – | L 2 1.88L 1880cc 115 CID(Naturally Aspirated F2L912 Diesel Mfr Deutz ) |
| Case / Case-Ih 30+4 FLEETLINE (DAVIS) | Cable Layer/Trencher | – | V 4 1.8L 1753cc 107 CID(Naturally Aspirated VH4D Gas Mfr Wisconsin ) |
| Case / Case-Ih 30+4ST FLEETLINE (DAVIS) | Cable Layer/Trencher | – | L 2 1.88L 1880cc 115 CID(Naturally Aspirated F2L912 Diesel Mfr Deutz ) |
| Case / Case-Ih 30+4ST FLEETLINE (DAVIS) | Cable Layer/Trencher | – | V 4 1.8L 1753cc 107 CID(Naturally Aspirated VH4D Gas Mfr Wisconsin ) |
| Case / Case-Ih 40+4 FLEETLINE (DAVIS) | Cable Layer/Trencher | – | L 2 1.88L 1880cc 115 CID(Naturally Aspirated F2L912 Diesel Mfr Deutz ) |
| Case / Case-Ih 40+4 FLEETLINE (DAVIS) | Cable Layer/Trencher | – | V 4 1.8L 1753cc 107 CID(Naturally Aspirated VH4D Gas Mfr Wisconsin ) |
| Case / Case-Ih 40+4ST FLEETLINE (DAVIS) | Cable Layer/Trencher | – | L 2 1.88L 1880cc 115 CID(Naturally Aspirated F2L912 Diesel Mfr Deutz ) |
| Case / Case-Ih 40+4ST FLEETLINE (DAVIS) | Cable Layer/Trencher | – | V 4 1.8L 1753cc 107 CID(Naturally Aspirated VH4D Gas Mfr Wisconsin ) |
| Case / Case-Ih 70+4 FLEETLINE (DAVIS) | Cable Layer/Trencher | – | L 4 3.39L 3390cc 207 CID(Naturally Aspirated G207D Diesel Mfr Case ) |
| Case / Case-Ih TF300 | Cable Layer/Trencher | – | – |
| Case / Case-Ih TF700 (DAVIS) | Cable Layer/Trencher | – | – |
| Case / Case-Ih 9010 | Excavators | – | L 4 3.9L 3916cc 239 CID(Turbo 4T-390 Diesel Mfr Case ) |
| Case / Case-Ih 9010B | Excavators | – | L 4 3.9L 3916cc 239 CID(Turbo/Intercooled 4TA-390 Diesel Mfr Case ) |
| Case / Case-Ih 9020 | Excavators | – | L 4 3.9L 3916cc 239 CID(Turbo/Intercooled 4TA-390 Diesel Mfr Case ) |
| Case / Case-Ih 9020B | Excavators | – | L 4 3.9L 3916cc 239 CID(Turbo/Intercooled 4TA-390 Diesel Mfr Case ) |
| Case / Case-Ih 9030 | Excavators | – | L 6 5.9L 5883cc 359 CID(Turbo 6T-590 Diesel Mfr Case ) |
| Case / Case-Ih 9030B | Excavators | – | L 6 5.9L 5883cc 359 CID(Turbo 6T-590 Diesel Mfr Case ) |
| Case / Case-Ih 9040 | Excavators | – | L 6 8.3L 8259cc 504 CID(Turbo 6T-830 Diesel Mfr Case ) |
| Case / Case-Ih 9040B | Excavators | – | L 6 8.3L 8259cc 504 CID(Turbo 6T-830 Diesel Mfr Case ) |
| Case / Case-Ih 9045B | Excavators | – | L 6 8.3L 8259cc 504 CID(Turbo 6T-830 Diesel Mfr Case ) |
| Case / Case-Ih 9050 | Excavators | – | L 6 11.1L 11143cc 680 CID(Turbo 6D22T Diesel Mfr Mitsubishi ) |
| Case / Case-Ih 9050B | Excavators | – | L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
| Case / Case-Ih 9050B | Excavators | – | L 6 11.1L 11143cc 680 CID(Turbo 6D22T Diesel Mfr Mitsubishi ) |
| Case / Case-Ih 9060 | Excavators | – | L 6 11.1L 11143cc 680 CID(Turbo 6D22TC Diesel Mfr Mitsubishi ) |
| Case / Case-Ih 9060B | Excavators | – | L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
| Case / Case-Ih 9060B | Excavators | – | L 6 11.1L 11143cc 680 CID(Turbo 6D22TC Diesel Mfr Mitsubishi ) |
| Case / Case-Ih 1120 | Wheel Tractors | – | w / Mitsubishi Engine |
| Case / Case-Ih 1130 | Wheel Tractors | – | w / Mitsubishi Engine |
| Case / Case-Ih 1140 | Wheel Tractors | – | w / Mitsubishi Engine |
| Case / Case-Ih 234 | Wheel Tractors | – | w / Case Diesel Engine |
| Case / Case-Ih 235 | Wheel Tractors | – | w / Diesel Engine |
| Case / Case-Ih 245 | Wheel Tractors | – | w / Diesel Engine |
| Case / Case-Ih 255 | Wheel Tractors | – | w / Diesel Engine |
| Case / Case-Ih DX18E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (58.2 CID) Engine |
| Case / Case-Ih DX22E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (58.2 CID) Engine |
| Case / Case-Ih DX24E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (61.3 CID) Engine |
| Case / Case-Ih DX25E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (61.3 CID) Engine |
| Caterpillar D5H 1DD-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 1DD04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 1YD04027-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 2SD04079-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 3MD04026-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 4KD04070-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 7NC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 7NC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 8RC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 8RC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 8SC-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 9HC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H 9HC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP 1DD-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP 7NC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP 8RC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP 8SC-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP 9HC-03999 | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 1DD04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 1YD04027-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 2SD04079-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 3MD04026-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 4KD04070-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 7NC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 8RC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H LGP SERIES II 9HC04000-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D5H XL 8RJ-ON | Crawler Tractors | – | w / Caterpillar 3304 Engine |
| Caterpillar D6M 2RN-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6M 3WN-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6M 4JN-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6M 5WR-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6M 6LR-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6M LGP 2YS-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MLGP 4GS-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MLGP 4HS-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MLGP 5NR-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MLGP 9ZM-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MXL 2YS-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MXL 4GS-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar D6MXL 5NR-ON | Crawler Tractors | – | w / Caterpillar 3116 Engine |
| Caterpillar 527 2RS1-ON | Forestry Equipment, Handlers | – | w / Caterpillar 3304 Engine |
| Caterpillar 527 3DS1-ON | Forestry Equipment, Handlers | – | w / Caterpillar 3304 Engine |
| Caterpillar 527 4NS1-ON | Forestry Equipment, Handlers | – | w / Caterpillar 3304 Engine |
| Caterpillar 988F 8YG-ON | Loaders | – | w / Caterpillar 3408 Engine |
| Caterpillar 988F SERIES II 2ZR-ON | Loaders | – | w / Caterpillar 3408E Engine |
| Caterpillar 527 2RS-ON | Skidders | – | L4 7.0L 7000CC 427CID |
| Caterpillar 527 3DS-ON | Skidders | – | L4 7.0L 7000CC 427CID |
| Caterpillar 527 4NS-ON | Skidders | – | L4 7.0L 7000CC 427CID |
| Caterpillar 527 BDW-ON | Skidders | – | L4 7.0L 7000CC 427CID |
| Caterpillar 789 | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 789B 7EK-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 789C 2BW-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793 3SJ-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793B 1HL-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C 4AR-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C 4GZ-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 793C ATY-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 623F 5EW-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406C Engine |
| Caterpillar 623F 5SG-00479 | Wheel Tractors and Scrapers | – | w / Caterpillar 3406 Engine |
| Caterpillar 623F 5SG00480-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406C Engine |
| Caterpillar 623G ARW-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 623G CES-ON | Wheel Tractors and Scrapers | – | w / Caterpillar 3406E Engine |
| Caterpillar 623G DBC-ON | Wheel Tractors and Scrapers | – | w / Caterpillar C15 Engine |
| Cessna MODELS | Hydraulic Systems | – | w / Cessna 62200 G2 |
| Challenger CHALLENGER MT265 HYDROSTATIC | Farm Tractors | – | w / Iseki 1.5L (91.4CID) Engine |
| Challenger CHALLENGER MT265B HYDROSTATIC | Farm Tractors | – | w / Iseki 1.5L (91.4CID) Engine |
| Challenger CHALLENGER MT265B SYNCHROSHUTTLE | Farm Tractors | – | w / Iseki 1.5L (91.4CID) Engine |
| Challenger CHALLENGER MT275B HYDROSTATIC | Farm Tractors | – | w / Iseki 1.5L (91.4CID) Engine |
| Challenger CHALLENGER MT275B SYNCHROSHUTTLE | Farm Tractors | – | w / Iseki 1.5L (91.4CID) Engine |
| Challenger CHALLENGER MT285 | Farm Tractors | – | w / Iseki 1.5L (89CID) Engine |
| Challenger CHALLENGER MT285B | Farm Tractors | – | w / Iseki 2.2L (134CID) Engine |
| Challenger CHALLENGER MT295 | Farm Tractors | – | w / Iseki 2.2L (134CID) Engine |
| Challenger CHALLENGER MT295B | Farm Tractors | – | w / Iseki 3L (180CID) Engine |
| Clark Equipment MODELS | Tow Trucks | – | – |
| Cub Cadet 7000 | (Also See IHC+Lawn & Garden) | – | – |
| Davis 20+4 | Trenchers | – | – |
| Davis 30+4 | Trenchers | – | (Mfr Wisconsin ) |
| Davis MODELS | Trenchers | – | – |
| Ford 345C | Wheel Loaders | – | L 3 |
| Ford 445 | Wheel Loaders | – | w / Ford Diesel Eng. |
| Ford 445A | Wheel Loaders | – | w / Ford Diesel Eng. |
| Ford 445C | Wheel Loaders | – | – |
| Ford 445D | Wheel Loaders | – | – |
| Ford 455 | Wheel Loaders | – | – |
| Ford 455C | Wheel Loaders | – | – |
| Ford 455D | Wheel Loaders | – | – |
| Ford 545C | Wheel Loaders | – | – |
| Ford 545D | Wheel Loaders | – | – |
| Ford 555C | Wheel Loaders | – | w / Ford Diesel 256 Eng. |
| Ford 555D | Wheel Loaders | – | w / Ford Diesel 256 Eng. |
| Ford 575D | Wheel Loaders | – | – |
| Ford 655 | Wheel Loaders | – | – |
| Ford 655A | Wheel Loaders | – | – |
| Ford 655C | Wheel Loaders | – | – |
| Ford 655D | Wheel Loaders | – | – |
| Ford 675D | Wheel Loaders | – | – |
| Ford 250 | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 250C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 260C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 2610 | Wheel Tractors (Including Lawn & Garden) | – | L 3 2.6L 2589cc 158 CID |
| Ford 345C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 345D | Wheel Tractors (Including Lawn & Garden) | – | 3.3L 3294cc 201 CID |
| Ford 3610 | Wheel Tractors (Including Lawn & Garden) | – | L 3 2.9L 2868cc 175 CID |
| Ford 3610 | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel 192 Eng. |
| Ford 445C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 445D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 450 | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 455 | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 455C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 455D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 545C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 545D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 555C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 555D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 575D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 655A | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 655B | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 655C | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 655D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Ford 675D | Wheel Tractors (Including Lawn & Garden) | – | w / Diesel Eng. |
| Hitachi EX400-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TPQ Engine |
| Hitachi EX400-3C | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TPQ Engine |
| Hitachi EX400-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX400LC-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX450H-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX450LC-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX450MT-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX450MTH-5 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6RB1TQA Engine |
| Hitachi EX750-5 | Excavators (ZX models are Zaxis) | – | w / Cummins N14C Engine |
| Hitachi EX800H-5 | Excavators (ZX models are Zaxis) | – | w / Cummins N14C Engine |
| Hitachi TL1100-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX1000K-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX1800K-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX400LCH-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX400R-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX450-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450H | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX450H-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450H-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450H-HHE | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX450LC | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX450LC-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450LC-3-DH | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX450LC-3-M | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX460LCH-AMS | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX460LCH-HCME | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX470H-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470H-3-HCMC | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470H-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470LC-5B | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470LC-6 | Excavators (ZX models are Zaxis) | – | L6 9.8L 9800CC 598CID (Isuzu 6UZ1) |
| Hitachi ZX470LCH-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470LCH-5B | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470R-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX470R-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX480LCK-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX480MT | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX480MTH | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX500LC | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX500LC-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX500LC-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX500LCH | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1T Engine |
| Hitachi ZX520LC-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX520LCH-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX520LCH-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX520LCR-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX520LCR-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX600 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX600LC | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX600LC-M | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX650H | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX650LC-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX650LC-3-DH | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX650LC-3-M | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX670LC-5B | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX670LC-5B-7 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX670LC-6 | Excavators (ZX models are Zaxis) | – | L6 15.7L 15700CC 958CID (Isuzu 6WG1-FT4) |
| Hitachi ZX670LCH-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX670LCH-5B | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX670LCR-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX800 | Excavators (ZX models are Zaxis) | – | L6 15.68L 957CID (Isuzu 6WG1) |
| Hitachi ZX850-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX850-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX850H | Excavators (ZX models are Zaxis) | – | L6 15.68L 957CID (Isuzu 6WG1) |
| Hitachi ZX850LC-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX850LC-3-DH | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX850LC-3-M | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX870H-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX870H-3-HCMC | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX870H-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX870LC-6 | Excavators (ZX models are Zaxis) | – | L6 15.7L 15700CC 958CID (Isuzu 6WG1-FT4)(Turbo Charged Tier IV Diesel HP512 KW382 Isuzu ) |
| Hitachi ZX870LCH-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu AH-6WG1 XYSA-03 Engine |
| Hitachi ZX870R-3 | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hitachi ZX870R-3F | Excavators (ZX models are Zaxis) | – | w / Isuzu 6WG1X Engine |
| Hyundai 33HDL | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai 39HDRB | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai 42HDLL | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai R110-7 | Excavators | – | – |
| Hyundai R110-7A | Excavators | – | w / Mitsubishi D04FD-TAA Tier III Engine |
| Hyundai R130LC | Excavators | – | w / Cummins 4BTA3.9 Engine |
| Hyundai R130LC-3 | Excavators | – | w / Cummins 4BTA3.9 Engine |
| Hyundai R130W-3 | Excavators | – | w / Cummins 4BTA3.9 Engine |
| Hyundai R140LC-7 | Excavators | – | w / Cummins 4B3.9 Engine |
| Hyundai R140W-7 | Excavators | – | w / Cummins 4B3.9 Engine |
| Hyundai R160LC-3 | Excavators | – | w / Cummins Engine |
| Hyundai R160LC-7 | Excavators | – | w / Mitsubishi S6S-DT Engine |
| Hyundai R170W-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai R170W-7 | Excavators | – | w / Mitsubishi S6S-DT Engine |
| Hyundai R180LC-7 | Excavators | – | w / Mitsubishi S6S-DT Engine |
| Hyundai R200W-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai R200W-7 | Excavators | – | w / Cummins 6B5.9 Engine |
| Hyundai R210LC-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai R210LC-3 | Excavators | – | w / Hyundai Engine |
| Hyundai R210LC-3LL | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai R210LC-7 | Excavators | – | w / Cummins B5.9 Engine |
| Hyundai R210LC-7H | Excavators | – | – |
| Hyundai R210NLC-7 | Excavators | – | w / Cummins B5.9 Engine |
| Hyundai R250LC-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai R250LC-7 | Excavators | – | w / Cummins B5.9 Tier II Engine |
| Hyundai R290LC | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai R290LC-3 | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai R290LC-3 | Excavators | – | w / Hyundai Engine |
| Hyundai R290LC-3LL/RB | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai R305LC-7 | Excavators | – | w / Cummins Engine |
| Hyundai R320LC | Excavators | – | w / Cummins LT10 Engine |
| Hyundai R320LC-3 | Excavators | – | w / Cummins LT10 Engine |
| Hyundai R320LC-3 | Excavators | – | w / Cummins M11 Engine |
| Hyundai R320LC-3 | Excavators | – | w / Hyundai Engine |
| Hyundai R320LC-7 | Excavators | – | w / Cummins 6C8.3 Engine |
| Hyundai R320LC-7A | Excavators | – | w / Cummins QSC8.3 Engine |
| Hyundai R360LC-3 | Excavators | – | w / Cummins LTA10 Engine |
| Hyundai R360LC-3 | Excavators | – | w / Hyundai Engine |
| Hyundai R360LC-7 | Excavators | – | w / Cummins QSC8.3 Tier II Engine |
| Hyundai ROBEX 130LC | Excavators | – | w / Cummins 4BTA3.9 Engine |
| Hyundai ROBEX 130LC-3 | Excavators | – | w / Cummins 4BTA3.9 Engine |
| Hyundai ROBEX 160LC-3 | Excavators | – | w / Cummins 4B3.9 Engine |
| Hyundai ROBEX 160LC-7 | Excavators | – | w / Mitsubishi S6S-DT Engine |
| Hyundai ROBEX 170W-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai ROBEX 180LC-3 | Excavators | – | w / Cummins 6B5.9 Engine |
| Hyundai ROBEX 200NLC-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai ROBEX 210-7 | Excavators | – | w / Cummins B5.9 Engine |
| Hyundai ROBEX 210LC-7 | Excavators | – | w / Cummins B5.9 Engine |
| Hyundai ROBEX 250LC-3 | Excavators | – | w / Cummins 6BT5.9 Engine |
| Hyundai ROBEX 290LC | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai ROBEX 290LC-3 | Excavators | – | w / Hyundai Engine |
| Hyundai ROBEX 290LC-7 | Excavators | – | w / Cummins 6CT8.3 Engine |
| Hyundai ROBEX 290LC-7 | Excavators | – | w / Cummins QSB5.9 Tier II Engine |
| Hyundai ROBEX 290LC-7A | Excavators | – | w / Cummins QSB6.7 Tier III Engine |
| Hyundai ROBEX 290LC-7HA | Excavators | – | w / Cummins Engine |
| Hyundai ROBEX 320LC | Excavators | – | w / Cummins LT10 Engine |
| Hyundai ROBEX 320LC-3 | Excavators | – | w / Cummins 6CTA8.3 Engine |
| Hyundai ROBEX 360LC-3 | Excavators | – | w / Cummins LTA10 Engine |
| Hyundai ROBEX 360LC-3 | Excavators | – | w / Cummins M11 Engine |
| Hyundai ROBEX 360LC-7A | Excavators | – | w / Cummins QSL9 Tier III Engine |
| Hyundai ROBEX 450LC-7 | Excavators | – | w / Cummins QSM11 Tier II Engine |
| Hyundai ROBEX 450LC-7A | Excavators | – | w / Cummins QSM11 Tier III Engine |
| Hyundai ROBEX 500LC-7 | Excavators | – | w / Cummins QSM11C Engine |
| Hyundai ROBEX 500LC-7A | Excavators | – | w / Cummins QSM11 Tier III Engine |
| Ihc Harvester (Ihc) 234 | Wheel Tractors | – | w / Mitsubishi Engine |
| Ihc Harvester (Ihc) 234H | Wheel Tractors | – | w / Mitsubishi Engine |
| J.C.B. (J C Bamford) JS110 | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS110 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS115 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS115 | Excavators | – | w / JCB Diesel TCA Diesel Max Tier III Eng. |
| J.C.B. (J C Bamford) JS130 | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS130 | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS130 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS130LC | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS130W | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS130W | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS130W | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS130W | Excavators | – | w / Isuzu 4JJ1X Tier III Eng. |
| J.C.B. (J C Bamford) JS145 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS145 | Excavators | – | w / JCB Diesel TCA Diesel Max Tier III Eng. |
| J.C.B. (J C Bamford) JS145W | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS145W | Excavators | – | w / Isuzu 4JJ1X Tier III Eng. |
| J.C.B. (J C Bamford) JS145W | Excavators | – | w / JCB Diesel TCA Diesel Max Tier III Eng. |
| J.C.B. (J C Bamford) JS150 | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS150LC | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS150W | Excavators | – | w / Isuzu 4BD1 Eng. |
| J.C.B. (J C Bamford) JS160 | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS160 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS160 | Excavators | – | w / Isuzu 4JJ1X Tier III Eng. |
| J.C.B. (J C Bamford) JS160W | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS160W | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS160W | Excavators | – | w / Isuzu 4JJ1X Tier III Eng. |
| J.C.B. (J C Bamford) JS160W | Excavators | – | w / JCB Diesel TCA Diesel Max Tier III Eng. |
| J.C.B. (J C Bamford) JS175W | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS175W | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS175W | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS175W | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS180 | Excavators | – | w / Isuzu 4BG1 Eng. |
| J.C.B. (J C Bamford) JS180 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS180 | Excavators | – | w / Isuzu 4JJ1X Tier III Eng. |
| J.C.B. (J C Bamford) JS190 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS200 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS200 | Excavators | – | w / Isuzu 6BD1 Eng. |
| J.C.B. (J C Bamford) JS200 | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS200 | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS200 | Excavators | – | w / JCB Diesel Tier II Eng. |
| J.C.B. (J C Bamford) JS200W | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS200W | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS200W | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS200W PLE | Excavators | – | w / Perkins 1006.6T Eng. |
| J.C.B. (J C Bamford) JS210 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS210 | Excavators | – | w / Isuzu 6BD1 Eng. |
| J.C.B. (J C Bamford) JS210 | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS210 | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS210L | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS220 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS220 | Excavators | – | w / Isuzu 6BD1 Eng. |
| J.C.B. (J C Bamford) JS220 | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS220 | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS220HD | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS220LC | Excavators | – | w / Isuzu Eng. |
| J.C.B. (J C Bamford) JS220LR | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS220LR | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS220XD | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS220XD | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS235 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS235HD | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS240 | Excavators | – | w / Isuzu 6BD1 Eng. |
| J.C.B. (J C Bamford) JS240 | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS240 | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS260 | Excavators | – | w / Isuzu 6BD1 Eng. |
| J.C.B. (J C Bamford) JS260 | Excavators | – | w / Isuzu 6BG1 Eng. |
| J.C.B. (J C Bamford) JS260 | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS260XD | Excavators | – | w / Isuzu 6BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JS300 | Excavators | – | w / Isuzu Eng. |
| J.C.B. (J C Bamford) JS300LC | Excavators | – | w / Isuzu 6SD1TPB-01 Eng. |
| J.C.B. (J C Bamford) JS330 | Excavators | – | w / Isuzu 6HK1 Tier II Eng. |
| J.C.B. (J C Bamford) JS330 | Excavators | – | w / Isuzu 6HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS330 | Excavators | – | w / Isuzu 6HK1TC Tier II Eng. |
| J.C.B. (J C Bamford) JS330 | Excavators | – | w / Isuzu 6SD1T Eng. |
| J.C.B. (J C Bamford) JS330XD | Excavators | – | w / Isuzu 6HK1 Tier II Eng. |
| J.C.B. (J C Bamford) JS330XD | Excavators | – | w / Isuzu 6HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS330XD | Excavators | – | w / Isuzu 6HK1TC Tier II Eng. |
| J.C.B. (J C Bamford) JS330XD | Excavators | – | w / Isuzu 6SD1T Eng. |
| J.C.B. (J C Bamford) JS360 | Excavators | – | w / Isuzu 6HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JS360L | Excavators | – | w / Isuzu 6HK1XZSJ01 Eng. |
| J.C.B. (J C Bamford) JS360N | Excavators | – | w / Isuzu 6HK1XZSJ01 Eng. |
| J.C.B. (J C Bamford) JS370LC | Excavators | – | w/ |
| J.C.B. (J C Bamford) JS450 | Excavators | – | w / Isuzu 6RB1TQB Eng. |
| J.C.B. (J C Bamford) JS460 | Excavators | – | w / Isuzu 6RB1T Eng. |
| J.C.B. (J C Bamford) JS460 | Excavators | – | w / Isuzu 6SD1T Eng. |
| J.C.B. (J C Bamford) JZ140 | Excavators | – | w / Isuzu 4BG1T Tier II Eng. |
| J.C.B. (J C Bamford) JZ235 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| J.C.B. (J C Bamford) JZ255 | Excavators | – | w / Isuzu 4HK1 Tier III Eng. |
| John Deere 6600 (COMBINE) | Combines | – | w / Gas Eng. |
| John Deere 6600 (COMBINE) | Combines | – | w / John Deere 404 Eng. |
| John Deere 6620 | Combines | – | w/ |
| John Deere 6622 (COMBINE) | Combines | – | w / John Deere Diesel Eng. |
| John Deere 250D SERIES II | Dump Trucks | – | 9.0L 8996cc 549 CID |
| John Deere 300D SERIES II | Dump Trucks | – | 9.0L 8996cc 549 CID |
| John Deere 310E | Dump Trucks | – | w/ |
| John Deere 370E | Dump Trucks | – | 13.5L 13503cc 824 CID |
| John Deere 410E | Dump Trucks | – | 13.5L 13503cc 824 CID |
| John Deere 460E | Dump Trucks | – | 13.5L 13503cc 824 CID |
| John Deere 460E | Dump Trucks | – | L6 |
| John Deere 450DLC | Excavators | – | w / Isuzu Diesel 6WG1XYSA01 Eng. |
| John Deere 470GLC | Excavators | – | L6 13.5L 13500cc 824 CID |
| John Deere 470GLC | Excavators | – | L6 15.7L 15681cc 957 CID |
| John Deere 470GLC | Excavators | – | L6 9.8L 9800cc 598 CID |
| John Deere 470LC | Excavators | – | w / Isuzu Diesel 6UZ1-IT4 Eng. |
| John Deere 650DLC | Excavators | – | w / Isuzu 6WG1T Eng. |
| John Deere 690C | Excavators | – | w / John Deere Diesel 6466A/T Eng. |
| John Deere 690CR | Excavators | – | w / John Deere Diesel 6466A/T Eng. |
| John Deere 690D | Excavators | – | L6 6.8L 6800CC 415CID |
| John Deere 690D LC | Excavators | – | L6 6.8L 6800CC 415CID |
| John Deere 690DR | Excavators | – | L6 6.8L 6800CC 415CID |
| John Deere 690E | Excavators | – | L6 6.8L 6800CC 415CID |
| John Deere 690ELC | Excavators | – | L6 6.8L 6800CC 415CID |
| John Deere 850DLC | Excavators | – | w / Isuzu Diesel 6WG1XYSA03 Eng. |
| John Deere 992ELC | Excavators | – | w / John Deere Diesel 6101 Eng. |
| John Deere 653E FELLER BUNCHER | Forestry Equipment | – | w / John Deere 6068T Eng. |
| John Deere 653G FELLER BUNCHER | Forestry Equipment | – | w / John Deere Diesel 6068 PowerTech Eng. |
| John Deere 693C FELLER BUNCHER | Forestry Equipment | – | w / John Deere Eng. |
| John Deere 693D FELLER BUNCHER | Forestry Equipment | – | w / John Deere Eng. |
| John Deere 444K | Loaders | – | 4.5L 4523cc 276 CID |
| John Deere 524K | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 524K-II | Loaders | – | L6 6.8L 6784cc 414 CID |
| John Deere 524L | Loaders | – | L6 6.8L 414CID |
| John Deere 524P | Loaders | – | L 6.8L – PowerTech PVS 6068 |
| John Deere 544K | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 544K-II | Loaders | – | L6 6.8L 6784cc 414 CID |
| John Deere 544L | Loaders | – | L6 6.7L 414CID |
| John Deere 624K | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 624K-II | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 624KR | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 624L | Loaders | – | L6 6.8L 6784cc 414 CID |
| John Deere 624P | Loaders | – | L 6.8L 6800CC 415CID – PowerTech PVS 6068 |
| John Deere 644 P | Loaders | – | L 6.8L 6800CC 415CID – PowerTech PSS 6068 |
| John Deere 644K | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 644K HYBRID | Loaders | – | 6.8L 6784cc 414 CID |
| John Deere 644X | Loaders | – | L 6.8L 6800CC 415CID – PowerTech PSS 6068 |
| John Deere 724K | Loaders | – | 9.0L 8980cc 548 CID |
| John Deere 744K | Loaders | – | 9.0L 8980cc 548 CID |
| John Deere 744K-II | Loaders | – | 9.0L 8980cc 548 CID |
| John Deere 824K | Loaders | – | w / John Deere Diesel 6135H Eng. |
| John Deere 844K | Loaders | – | w / John Deere Diesel 6135H Eng. |
| John Deere 844K SERIES II | Loaders | – | w / John Deere Diesel 6135H Eng. |
| John Deere 844K-III Iterim Tier IV | Loaders | – | w/ |
| Kobelco 7065 | Cranes | – | w / Mitsubishi 6D22 Eng. |
| Kobelco K909 | Excavators | – | w / Detroit Diesel 6-71N Eng. |
| Kobelco K909A | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco K909LC-II | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco K912A | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco K912A | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K912ALC | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco K912ALC | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K912II | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K912LC-II | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K916 | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K916LC | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco K916LC | Excavators | – | w / Mitsubishi 6D22TC Eng. |
| Kobelco K935 | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco MD240 | Excavators | – | w / Diesel Eng. |
| Kobelco MD240BLC | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco MD240C | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco MD300LC | Excavators | – | w / Mitsubishi 6D22TC Eng. |
| Kobelco MD320BLC | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco MD400LC | Excavators | – | w / Mitsubishi 6D22C Eng. |
| Kobelco SK220-III | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco SK220-IV | Excavators | – | w / Mitsubishi Eng. |
| Kobelco SK220LC | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco SK220LC-III | Excavators | – | w / Mitsubishi 6D15T Eng. |
| Kobelco SK300LC | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Kobelco SK300LC | Excavators | – | w / Mitsubishi 6D22TC Eng. |
| Kobelco SK300LC-II | Excavators | – | w / Mitsubishi 6D22T Eng. |
| Koehring 6614 | Excavators | – | w / Isuzu 6BD1 Eng. |
| Koehring 6633 | Excavators | – | w / Isuzu 6SA1 Eng. |
| Kubota KX41-3 | Excavators | – | L3 0.898L 898CC 55CID |
| Kubota R420S | Loaders | – | w / Kubota D1503MT Eng. |
| Kubota R430 | Loaders | – | L3 1.826L 1826CC 111CID |
| Kubota R520S | Loaders | – | w / Kubota V2203M Eng. |
| Link-Belt LS2650CII | Excavators | – | w / Isuzu 4BD1T Eng. |
| Link-Belt LS2650II | Excavators | – | w / Isuzu 4BD1T Eng. |
| Link-Belt LS2650S | Excavators | – | w / Isuzu 4BD1T Eng. |
| Link-Belt LS2800B | Excavators | – | w / Isuzu 6BD1T Eng. |
| Link-Belt LS2800C | Excavators | – | w / Isuzu 6BD1T Eng. |
| Link-Belt LS2800CII | Excavators | – | w / Isuzu 6BD1T Eng. |
| Link-Belt LS3400C | Excavators | – | w / Isuzu 6BG1T Eng. |
| Link-Belt LS3400CII | Excavators | – | w / Isuzu 6BG1T Eng. |
| Link-Belt LS3400Q | Excavators | – | w / Isuzu 6BG1T Eng. |
| Link-Belt LS4300CII | Excavators | – | w / Cummins Diesel 6CTA8.3 Eng. |
| Link-Belt LS4300CII | Excavators | – | w / Isuzu 6SD1T Eng. |
| Link-Belt LS4300Q | Excavators | – | w / Cummins Diesel Eng. |
| Link-Belt LS5800QII | Excavators | – | – |
| Massey-Ferguson MF1165 HYDRO | Farm, Lawn & Construction Tractor | – | L4 2.2L 2196CC 134CID |
| Massey-Ferguson MF1250 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1260 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1433 HYDRO | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1440 HYDRO | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1445 HYDRO | Farm, Lawn & Construction Tractor | – | L4 2.2L 2196CC 134CID |
| Massey-Ferguson MF1529 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1532 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1532 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1533 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1540 | Farm, Lawn & Construction Tractor | – | L3 1.5L 1491CC 91CID |
| Massey-Ferguson MF1547 | Farm, Lawn & Construction Tractor | – | L4 2.2L 2196CC 134CID |
| Massey-Ferguson MF1552 | Farm, Lawn & Construction Tractor | – | L4 3.0L 2950CC 180CID |
| Massey-Ferguson MF1635 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L3 1.6L 1655CC 101CID |
| Massey-Ferguson MF1643 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L4 2.2L 2196CC 134CID |
| Massey-Ferguson MF1648 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L4 2.2L 2196CC 134CID |
| Massey-Ferguson MF1652 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L4 3.0L 2950CC 180CID |
| Massey-Ferguson MF1655 HYDROSTATIC | Farm, Lawn & Construction Tractor | – | L4 3.0L 2950CC 180CID |
| Mdi/Yuntani MD180LC | Excavator | – | – |
| Mdi/Yuntani MD240LC S/N LL1208-ON | Excavator | – | – |
| Mdi/Yuntani MD300LC | Excavator | – | – |
| Mdi/Yuntani MD400LC | Excavator | – | – |
| New Holland 1000 BALE WAGON | Balers | – | – |
| New Holland 1002 BALE WAGON | Balers | – | – |
| New Holland 1005 BALE WAGON | Balers | – | – |
| New Holland 1010 BALE WAGON | Balers | – | – |
| New Holland 1012 BALE WAGON | Balers | – | – |
| New Holland 1024 BALE WAGON | Balers | – | – |
| New Holland 1030 BALE WAGON | Balers | – | – |
| New Holland 1030 HAY STACKER | Balers | – | – |
| New Holland 1032 BALE WAGON | Balers | – | – |
| New Holland 1033 BALE WAGON | Balers | – | – |
| New Holland 1034 BALE WAGON | Balers | – | – |
| New Holland 1035 BALE WAGON | Balers | – | – |
| New Holland 1036 BALE WAGON | Balers | – | – |
| New Holland 1037 BALE WAGON | Balers | – | – |
| New Holland 1040 BALE WAGON | Balers | – | – |
| New Holland 1045 BALE WAGON | Balers | – | w / Wisconsin V460D Eng. |
| New Holland 1045 BALE WAGON | Balers | – | w / Wisconsin V461D Eng. |
| New Holland 1052 BALE WAGON | Balers | – | – |
| New Holland 1060 STACK RETRIEVER | Balers | – | – |
| New Holland 2M BALE WAGON | Balers | – | – |
| New Holland 1900 | Combines, Foragers, Harvesters | – | w / Caterpillar Diesel 3306 Eng. |
| New Holland 2100 | Combines, Foragers, Harvesters | – | w / Caterpillar Diesel 3406 Eng. |
| New Holland 2115 | Combines, Foragers, Harvesters | – | w / Caterpillar Diesel 3406 Eng. |
| New Holland TR70 | Combines, Foragers, Harvesters | – | w / Caterpillar Diesel 3208 Eng. |
| New Holland TR70 | Combines, Foragers, Harvesters | – | w / Ford 361/363TD Eng. |
| New Holland 545D (TRACTOR LOADER) | Loaders | – | – |
| New Holland 555D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 575D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 655D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland 675D (TRACTOR LOADER) | Loaders | – | L 4 |
| New Holland L35 (SKID STEER) | Loaders | – | w / Wisconsin VG4D Eng. |
| New Holland L35 (SKID STEER) | Loaders | – | w / Wisconsin VH4D Eng. |
| New Holland L775 (SKID STEER) | Loaders | – | w / Deutz F3L912 Eng. |
| New Holland L775 (SKID STEER) | Loaders | – | w / Wisconsin V465D Eng. |
| New Holland 499 | Speedrowers, Swathers | – | – |
| New Holland 250C | Tractors | – | w / Diesel Eng. |
| New Holland 260C | Tractors | – | w / Diesel Eng. |
| New Holland 345D | Tractors | – | 3.3L 3294cc 201 CID |
| New Holland TZ18A | Tractors | – | w / Shibaura Eng. |
| New Holland TZ18DA | Tractors | – | w / ISM Diesel 3/58 Eng. |
| New Holland TZ18DA | Tractors | – | w / Shibaura Eng. |
| New Holland TZ22DA | Tractors | – | w / ISM Diesel 3/61 Eng. |
| New Holland TZ22DA | Tractors | – | w / Shibaura Eng. |
| New Holland TZ24DA | Tractors | – | w / ISM Diesel 3/61 Eng. |
| New Holland TZ24DA | Tractors | – | w / Shibaura Eng. |
| New Holland TZ25DA | Tractors | – | w / ISM Diesel 3/61 Eng. |
| New Holland TZ25DA | Tractors | – | w / Shibaura Eng. |
| Racine MODELS | Hydraulic Systems | – | w / N/A Eng. |
| Samsung SE130LC | Excavators | – | w / Cummins Diesel 4BT3.9 Eng. |
| Samsung SE130LC-2 | Excavators | – | w / Cummins Diesel 4BT3.9 Eng. |
| Samsung SE130W-2A | Excavators | – | w / Cummins Diesel 4BT3.9 Eng. |
| Samsung SE210LC-2 | Excavators | – | w / Cummins Diesel 6BT5.9 Eng. |
| Samsung SE210W-2 | Excavators | – | w / Cummins Diesel 6BT5.9 Eng. |
| Takeuchi TB25FR | Excavators | – | w / Yanmar Eng. |
| Thomas SS700 | Loaders | – | w / Lister-Petter Eng. |
| Thomas SS700 | Loaders | – | w / Wisconsin TJD Eng. |
| Volvo EC240 | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC240 LC | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC240 LR | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC240 NLC | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC290 | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC290 LC | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC290 LR | Excavators | – | 8.3L 8275cc 505 CID |
| Volvo EC290 NLC | Excavators | – | 8.3L 8275cc 505 CID |
| Yale & Towne 204 | (Also See Trojan) | – | w / Cummins JF6B1 Eng. |
| Yale & Towne 204 | (Also See Trojan) | – | w / Cummins JN6 Eng. |
| Yale & Towne 204 | (Also See Trojan) | – | w / Detroit Diesel 3-71 Eng. |
| Yale & Towne 204 | (Also See Trojan) | – | w / Detroit Diesel 4-71 Eng. |
| Yale & Towne 204 | (Also See Trojan) | – | w / Hercules GO339 Eng. |
| Yale & Towne 204 | (Also See Trojan) | – | w / International U372 Eng. |
| Yale & Towne 204A | (Also See Trojan) | – | w / Detroit Diesel 3-71 Eng. |
| Yale & Towne 204A | (Also See Trojan) | – | w / Detroit Diesel 4-71 Eng. |
| Yale & Towne 304 | (Also See Trojan) | – | w / Cummins Diesel Eng. |
| Yale & Towne 304 | (Also See Trojan) | – | w / Detroit Diesel 4-71 Eng. |
| Yale & Towne 304A | (Also See Trojan) | – | w / Cummins Diesel Eng. |
| Yale & Towne 304A | (Also See Trojan) | – | w / Detroit Diesel 4-71 Eng. |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 57900 Cartridge Hydraulic Metal Canister Filter | 21 Micron
$75.50 In Stock -
WIX 51494 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 5 Micron
$75.42 In Stock -
WIX 57247 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 2 Micron
$86.95 In Stock -
WIX 51323 Power Steering Cartridge Filter | 25 Micron
$13.45 In Stock
