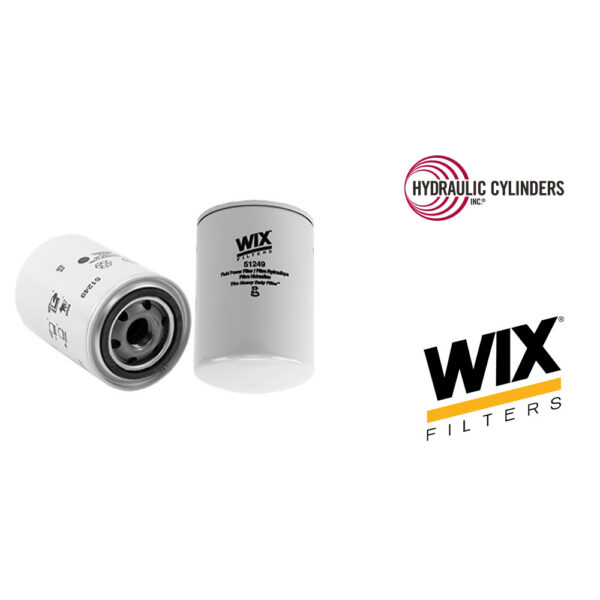

WIX 51249 Spin-On Hydraulic Filter | 1-12 Thread, 10 Micron
$21.58 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 51249
| Category | Wix Filters » WIX Hydraulic Filters |
|---|---|
| Fits Manufacturer | Wix |
| Function | Filtration |
| SKU | 51249 |
|---|---|
| UPC | 765809512498 |
| Weight | 2.0 lbs |
| Type | Full Flow |
|---|---|
| Height | 5.5" / 140mm |
| Outer Diameter Top | 3.663" / 93mm |
| Beta Ratio | 2/20=6/19 |
| Burst Pressure-PSI | 390 |
| Max Flow Rate | 12-16 GPM |
| Nominal Micron Rating | 10 |
| Gasket Type | Attached |
| Gasket O.D. | 2.834" / 72mm |
| Gasket I.D. | 2.462" / 63mm |
| Gasket Thickness | 0.255" / 6mm |
| Thread Size | 1-12 |
Description
The WIX 51249 spin-on hydraulic filter is a genuine WIX hydraulic filter built for demanding hydraulic systems. It uses enhanced cellulose media rated at 10 microns with a 1-12 thread (UPC 765809512498).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 51249 alongside the heavy equipment we already supply parts for. It fits the hydraulic systems on John Deere, Case, Gehl machines — the full fitment list is below.
Principle Applications: Case Windrowers, Sullair Compressors.
Not sure the 51249 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Type:
Full Flow
Height:
5.5" / 140mm
Outer Diameter Top:
3.663" / 93mm
Beta Ratio:
2/20=6/19
Burst Pressure-PSI:
390
Max Flow Rate:
12-16 GPM
Nominal Micron Rating:
10
Gasket Type:
Attached
Gasket O.D.:
2.834" / 72mm
Gasket I.D.:
2.462" / 63mm
Gasket Thickness:
0.255" / 6mm
Thread Size:
1-12
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Allmand PLB20D WHEEL LOADER | Miscellaneous Equipment | – | w / Kubota D905E Engine |
| Allmand TLB25 | Miscellaneous Equipment | – | w / Kohler 25 HP Engine |
| Allmand TOB25 | Miscellaneous Equipment | – | w / Kohler 25 HP Engine |
| Bandit Industries, Inc. 150XP CHIPPER | Equipment | – | L4 4L 3620CC 221CID |
| Bell B25B ARTICULATED DUMP TRUCK | Equipment | – | w / Mercedes ADE366TI Engine |
| Bell B25C ARTICULATED DUMP TRUCK | Equipment | – | w / Mercedes ADE366TI Engine |
| Bell B30B ARTICULATED DUMP TRUCK | Equipment | – | w / Mercedes ADE442N Engine |
| Case / Case-Ih 6000 | Windrowers | – | w / Cummins Diesel Engine |
| Case / Case-Ih 6000 | Windrowers | – | w / Gas Engine |
| Case / Case-Ih 6500 | Windrowers | – | w / Cummins Diesel Engine |
| Case / Case-Ih 6500 | Windrowers | – | w / Gas Engine |
| Challenger CHALLENGER MT745C | Farm Tractors | – | w / Caterpillar C9 ACERT (8.8L) Engine |
| Challenger CHALLENGER MT745D | Farm Tractors | – | w / AGCO/Sisu 84AWI (Tier IV) Engine |
| Challenger CHALLENGER MT755C | Farm Tractors | – | w / Caterpillar C9 ACERT (8.8L) Engine |
| Challenger CHALLENGER MT755D | Farm Tractors | – | w / AGCO/Sisu 84AWI (Tier IV) Engine |
| Challenger CHALLENGER MT755E | Farm Tractors | – | L6 9.8L 598 CID |
| Challenger CHALLENGER MT765C | Farm Tractors | – | w / Caterpillar C9 ACERT (8.8L) Engine |
| Challenger CHALLENGER MT765D | Farm Tractors | – | w / AGCO/Sisu 84AWI (Tier IV) Engine |
| Challenger CHALLENGER MT765E | Farm Tractors | – | L6 9.8L 598 CID |
| Challenger CHALLENGER MT775E | Farm Tractors | – | L6 9.8L 598 CID |
| Challenger CHALLENGER MT835B | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT835C | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT845B | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT845C | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT855B | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT855C | Farm Tractors | – | w / Caterpillar C15 ACERT (15.2L) Engine |
| Challenger CHALLENGER MT865B | Farm Tractors | – | w / Caterpillar C18 ACERT (18.1L) Engine |
| Challenger CHALLENGER MT865C | Farm Tractors | – | w / Caterpillar C18 ACERT (18.1L) Engine |
| Challenger CHALLENGER MT875B | Farm Tractors | – | w / Caterpillar C18 ACERT (18.1L) Engine |
| Challenger CHALLENGER MT875C | Farm Tractors | – | w / Caterpillar C18 ACERT (18.1L) Engine |
| Gehl 100 MIX-ALL | Harvesters | – | – |
| Gehl 120 MIX-ALL | Harvesters | – | – |
| Gehl 125 MIX-ALL | Harvesters | – | – |
| Gehl 125 ROLLER MILL | Harvesters | – | – |
| Gehl 135 MIX-ALL | Harvesters | – | – |
| Gehl 170 MIX-ALL | Harvesters | – | – |
| Gehl 170 ROLLER MILL | Harvesters | – | – |
| Gehl 3200 BALE THROWER | Harvesters | – | – |
| Gehl 322 SCAVENGER II MANURE SPREADER | Harvesters | – | – |
| Gehl 95 MIX-ALL | Harvesters | – | – |
| Gehl 2500 | Skid Steer/Track Loaders | – | w / Onan NH-MS Eng. |
| Gehl 2500 | Skid Steer/Track Loaders | – | w / Onan NHC-MS Eng. |
| Gehl 2500A HYDRASKAT | Skid Steer/Track Loaders | – | w / Onan NHC-MS Eng. |
| Gehl 360 | Skid Steer/Track Loaders | – | w / Onan B43M Eng. |
| Gehl 4400 HYDRASKAT | Skid Steer/Track Loaders | – | w / Ford C134 Eng. |
| Gehl 4400 HYDRASKAT | Skid Steer/Track Loaders | – | w / Perkins 4.108 Eng. |
| Gehl 4400 HYDRASKAT | Skid Steer/Track Loaders | – | w / Wisconsin VH4D Eng. |
| Gehl 4615 | Skid Steer/Track Loaders | – | w / Perkins 4.108 Eng. |
| Gehl 4625DX | Skid Steer/Track Loaders | – | w / Kubota Diesel V2203B Eng. |
| Gehl 5625DX | Skid Steer/Track Loaders | – | w / Perkins 204-30 Eng. |
| Gehl 5625DX | Skid Steer/Track Loaders | – | w / Perkins 4.154 Eng. |
| Gehl 5625SX | Skid Steer/Track Loaders | – | w / Perkins 204-30 Eng. |
| Gehl 5625SX | Skid Steer/Track Loaders | – | w / Perkins 4.154 Eng. |
| Gehl 6620 | Skid Steer/Track Loaders | – | w / Perkins 4.154 Eng. |
| Gehl 6625 | Skid Steer/Track Loaders | – | w / Perkins 4.154 Eng. |
| Gehl 6625DX | Skid Steer/Track Loaders | – | w / Perkins 204-30 Eng. |
| Gravely PROMASTER 100 (MOWER) | Tractors | – | V 2 |
| Gravely PROMASTER 100 (MOWER) | Tractors | – | w / Kohler MV18 Eng. |
| Gravely PROMASTER 200 (MOWER) | Tractors | – | w / Kawasaki FD590V Eng. |
| Gravely PROMASTER 200 (MOWER) | Tractors | – | w / Kohler CV20S Eng. |
| Haybuster H1100E SERIES II TUB GRINDER | Equipment | – | w / Caterpillar Diesel 3406 Eng. |
| Ihc Harvester (Ihc) 6000 | Windrowers | – | w / Chrysler HB225 Engine |
| Ingersoll-Rand P125WJD | Compressors | – | w / John Deere Eng. |
| John Deere 400D II | Dump Trucks | – | w / Mercedes-Benz OM501LA Eng. |
| Mercedes-Benz O370-ST | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz O371-ST | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz O371-U | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz O371-UL | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OF1115 | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OF1315 | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OF1316 | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OF1317 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OF1318 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OF1318E | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OF1618 | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OF1620 | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OF1721 | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OH1315 (M:372906) | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OH1316 | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OH1316G | World Buses | – | w / Mercedes M366G Engine |
| Mercedes-Benz OH1319 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OH1320 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OH1419 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OH1420 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OH1421L | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OH1521L | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OH1621 | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OH1621L | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OH1625L | World Buses | – | w / Mercedes OM449LA Engine |
| Mercedes-Benz OH1628L | World Buses | – | w / Mercedes OM449LA Engine |
| Mercedes-Benz OH1630L | World Buses | – | w / Mercedes OM449LA Engine |
| Mercedes-Benz OH1635L | World Buses | – | w / Mercedes OM447LA Engine |
| Mercedes-Benz OH1636L | World Buses | – | w / Mercedes OM447LA Engine |
| Mercedes-Benz OH1721L | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OHL1316 | World Buses | – | w / Mercedes OM366 Engine |
| Mercedes-Benz OHL1316G | World Buses | – | w / Mercedes M366G Engine |
| Mercedes-Benz OHL1320 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OHL1420 | World Buses | – | w / Mercedes OM366A Engine |
| Mercedes-Benz OHL1421 | World Buses | – | w / Mercedes OM366LA Engine |
| Mercedes-Benz OHL1621 | World Buses | – | w / Mercedes OM366LA Engine |
| Spra Coupe 3450 | Sprayers | – | w / Perkins Diesel 1104 Series Eng. |
| Spra Coupe 3650 | Sprayers | – | w / Perkins Diesel 1104 Series Eng. |
| Spra Coupe 4440 | Sprayers | – | w / Perkins 110 HP Diesel Eng. |
| Spra Coupe 4450 | Sprayers | – | w / Perkins Diesel 1104 Series Eng. |
| Spra Coupe 4460 | Sprayers | – | w / Perkins Diesel 1104C Series Eng. |
| Spra Coupe 4640 | Sprayers | – | w / Perkins Diesel 1104C Series Eng. |
| Spra Coupe 4650 | Sprayers | – | w / Perkins Diesel 1104C Series Eng. |
| Spra Coupe 4655 | Sprayers | – | w / Perkins Diesel 1104C Series Eng. |
| Spra Coupe 4660 | Sprayers | – | w / Perkins Diesel 1104C Series Eng. |
| Sullair 125Q | Compressors | – | w / Toyota Gas Eng. |
| Sullair 16-75L | Compressors | – | – |
| Sullair SERIES 12A | Compressors | – | w / Electric 40 HP Eng. |
| Sullair SERIES 12A | Compressors | – | w / Electric 50 HP Eng. |
| Sullair SERIES 12A | Compressors | – | w / Electric 60 HP Eng. |
| Sullair SERIES 12B | Compressors | – | w / Electric 40 HP Eng. |
| Sullair SERIES 12B | Compressors | – | w / Electric 50 HP Eng. |
| Sullair SERIES 12B | Compressors | – | w / Electric 60 HP Eng. |
| Sullair SERIES 16 | Compressors | – | w / Electric 60 HP Standard Eng. |
| Sullair SERIES 16 | Compressors | – | w / Electric 75 HP Standard Eng. |
| Sullair SERIES 16B | Compressors | – | w / Electric 60 HP Eng. |
| Sullair SERIES 16B | Compressors | – | w / Electric 75 HP Eng. |
| Sullair SERIES 20A | Compressors | – | w / Electric 100 HP Eng. |
| Sullair SERIES 20A | Compressors | – | w / Electric 125 HP Eng. |
| Sullair SERIES 20A | Compressors | – | w / Electric 150 HP Eng. |
| Sullair SERIES 20B | Compressors | – | w / Electric 100 HP Eng. |
| Sullair SERIES 20B | Compressors | – | w / Electric 125 HP Eng. |
| Sullair SERIES 20B | Compressors | – | w / Electric 150 HP Eng. |
| Sullair SERIES 32 | Compressors | – | w / Electric 400 HP Eng. |
| Sullair SERIES 32 | Compressors | – | w / Electric 450 HP Eng. |
| Toro GREENSMASTER 3150 | Tractors & Turf Equipment | – | w / Briggs & Stratton VANGUARD Eng. |
| Toro GREENSMASTER 3200 | Tractors & Turf Equipment | – | w / Daihatsu Eng. |
| Toro GREENSMASTER 3250D | Tractors & Turf Equipment | – | w / Daihatsu Eng. |
| Toro PROCORE 648 (AERATOR) | Tractors & Turf Equipment | – | w / Kohler Eng. |
| Willmar 10 TON LOAD RUNNER TENDER | Sprayers | – | – |
| Willmar 16 TON LOAD RUNNER TENDER | Sprayers | – | – |
| Willmar 16 TON SIDE SHOOTER TENDER | Sprayers | – | – |
| Willmar 24 TON SIDE SHOOTER TENDER | Sprayers | – | – |
| Willmar 750 AIR RIDE | Sprayers | – | w / John Deere 4039T Eng. |
| Willmar 750A AIR RIDE | Sprayers | – | w / John Deere 4039T Eng. |
| Willmar 8 TON LOAD RUNNER TENDER | Sprayers | – | – |
| Willmar UT57 TENDER | Sprayers | – | – |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 57900 Cartridge Hydraulic Metal Canister Filter | 21 Micron
$75.50 In Stock -
WIX 51494 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 5 Micron
$75.42 In Stock -
WIX 57247 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 2 Micron
$86.95 In Stock -
WIX 51323 Power Steering Cartridge Filter | 25 Micron
$13.45 In Stock
