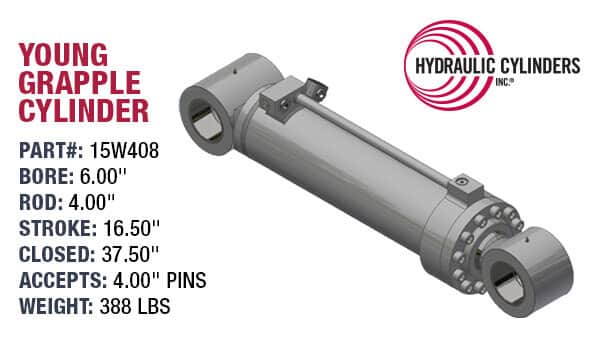

Replacement Hydraulic Grapple Tong Actuator Cylinder for Young Corp (PN: 15W408) Grapple Model D-24241 6 Yard
Specifications for 1163258953
| Category | Replacement Welded Rod Hydraulic Cylinders » Attachments & Implements » Grapple |
|---|---|
| Fits Manufacturer | Young Corp / Nordick Div |
| Model | Young Corp D-24241 6 Yard |
| Function | Grapple Tong Actuator |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1163258953 |
|---|---|
| Weight | 425 lbs |
| Bore | 6.00″ |
|---|---|
| Rod | 4.00″ |
| Open Extended Length | 54.25″ |
| Closed | 37.75″ |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 4.00″ |
| Base Mount Width | 7.50″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 4.00″ |
| Rod Mount Width | 5.00″ |
| Extend Port/Plunger | -12 SAE ORB |
| Retract Port/Plunger | -12 SAE ORB |
Description
This replacement hydraulic cylinder (PN: 15W408) is designed for the Young Corp D-24241 6-yard grapple. It functions as the main tong actuator, providing the hydraulic force needed to open and close the grapple during material handling. Built to meet or exceed OEM specifications, it ensures dependable control and consistent clamping performance in heavy-duty applications.
6.00″
4.00″
54.25″
37.75″
Cross-Tube
4.00″
7.50″
Cross-Tube
4.00″
5.00″
-12 SAE ORB
-12 SAE ORB
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
