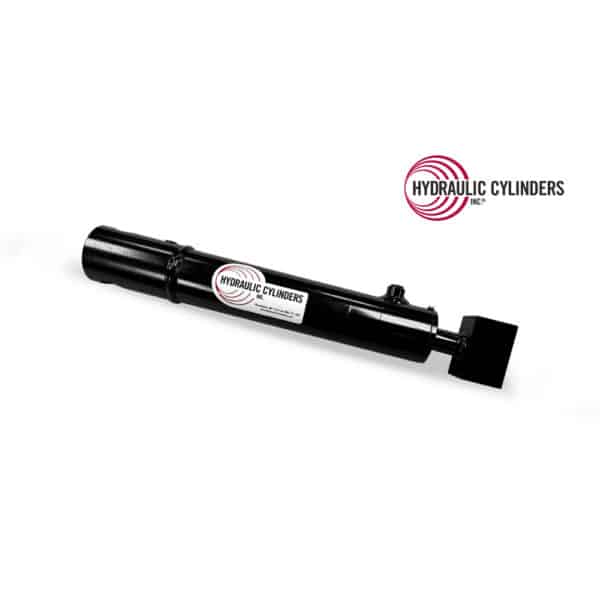

Replacement Hydraulic Grapple Cylinder for John Deere (PN: AH225848) Scrap, Tined and Utility Grapple Attachments
$1,190.00
Specifications for 2231827126
| SKU | 2231827126 |
|---|---|
| Weight | 20.0 lbs |
| Bore | 50mm |
|---|---|
| Rod | 25mm |
| Stroke | 8.063″ |
| Closed | 16.188″ |
| Open Extended Length | 24.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.00″ |
| Base Mount Width | 2.50″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 2.688″ |
| Extend Port/Plunger | -4 SAE ORB |
| Retract Port/Plunger | -4 SAE ORB |
| Old OEM PNs | AH210952, KV22723 |
Description
This replacement hydraulic grapple cylinder for John Deere scrap, tined, and utility grapple attachments is a direct-fit match for OEM AH225848. It’s engineered for use with the Worksite Pro GS (Scrap Grapple), GT (Tined Grapple), and GU (Utility Grapple) series. A complete list of compatible model types can be found below.
This aftermarket cylinder replaces AH210952 and KV22723 and restores smooth, reliable clamping control across all Worksite Pro grapple designs. Built with a welded double-acting rod (DAR) for steady pressure and long-term durability, it’s Performance-Built and Warranty-Backed to meet OEM standards. Moreover, it’s FASTSHIP eligible—order by 12:00 CST for same-day shipping. Choose a proven replacement and Demolish Downtime.
50mm
25mm
8.063″
16.188″
24.25″
3000
Drilled Thru Base
1.00″
2.50″
Cross-Tube
1.00″
2.688″
-4 SAE ORB
-4 SAE ORB
AH210952, KV22723
Scrap Grapple (GS Series)
- GS60
- GS66
- GS72
- GS78
- GS84
- GS88
- GSU60
Brush / Tined Grapple (GT Series)
- GT72
- GT80
Utility Grapple (GU Series)
- GU60
- GU66
- GU72
- GU78
- GU84
