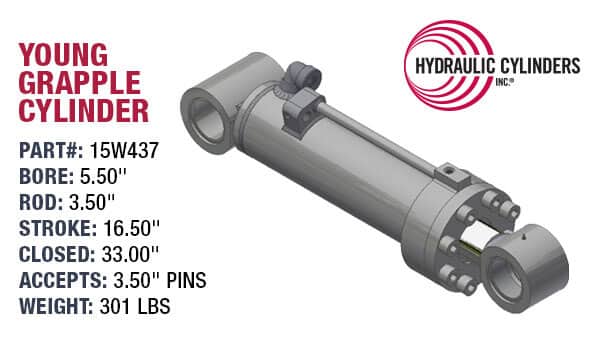

Replacement Hydraulic Grapple Tong Actuator Cylinder for Young Corp (PN: 15W437) Grapple Model 1309 5 Yard
Specifications for 1163151555
| Category | Replacement Welded Rod Hydraulic Cylinders » Attachments & Implements » Grapple |
|---|---|
| Fits Manufacturer | Young Corp / Nordick Div |
| Model | Young Corp 1309 5 Yard |
| Function | Grapple Tong Actuator |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1163151555 |
|---|---|
| Weight | 350 lbs |
| Dimensions | 36 × 8 × 8 in |
| Bore | 5.50″ |
|---|---|
| Rod | 3.50″ |
| Closed | 33.00″ |
| Open Extended Length | 49.50″ |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 3.50″ |
| Base Mount Width | 7.125″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 3.50″ |
| Rod Mount Width | 4.50″ |
| Extend Port/Plunger | .375 NPT 90D |
| Retract Port/Plunger | .375 NPT 90D |
Description
This replacement grapple tong cylinder (PN: 15W437) fits the Young Corp 1309 5-yard model. It powers the hydraulic motion of the tongs, enabling secure grabbing and releasing of material. Built to OEM specifications or better, it offers long-lasting performance and reliable operation in rugged loading and demolition settings.
5.50″
3.50″
33.00″
49.50″
Cross-Tube
3.50″
7.125″
Cross-Tube
3.50″
4.50″
.375 NPT 90D
.375 NPT 90D
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
