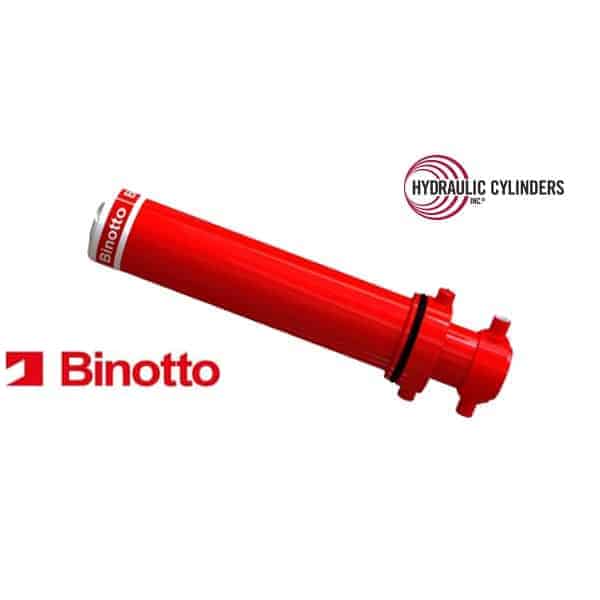

6.5-4-180-AV01 Binotto SAT Telescopic Cylinders

6.5-4-180-AV01 Binotto SAT Telescopic Cylinders
  • 6.5-4-180-AV01 Binotto SAT Telescopic Cylinders
  • 6.5-4-180-AV01 Binotto SAT Telescopic Cylinders
  • 6.5-4-180-AV01 Binotto SAT Telescopic Cylinders
  • Dump Truck Telescopic Trunnion

$3,559.00

In Stock

Fast Ship What's This?

Specifications for 6.5-4-180-AV01

CategoryReplacement Telescopic Hydraulic Cylinders
Fits Manufacturer Binotto
Function Dump Hoist / Body Raise / Tipping
Features Single-Acting Telescopic Hydraulic Cylinders (SAT), Trunnion
SKU 6.5-4-180-AV01
Weight 562 lbs
Base End Mount Type

Trunnion
Closed

56.063″
Extend Port/Plunger

-16 SAE ORB Out Base Trunnion
Open Extended Length

238.063″
Rod End Mount Type

Trunnion
Tele Largest Stage OD

6″
Telescopic Stages

4
Telescopic Stroke

182″
Trunnion Closed

6.85
Trunnion Open

188.85
Trunnion Pin Dia

2.25
Trunnion Pin Length

2.00
Trunnion Width

11.938
24 Month Warranty

Description

The 6.5-4-180-AV01 Binotto SAT Telescopic Cylinder is a replacement single-acting telescopic dump hoist cylinder used on dump trucks and dump trailers. This 4-stage cylinder replaces Hyva FC A6.5-4-183-K8-HC and provides a 182″ telescopic stroke with a 6″ largest stage diameter. Trunnion mounts on both the base and rod end help keep the lift stable during dumping.

A -16 SAE ORB extend port sits at the base trunnion and installs with standard trunnion mount sizes. The cylinder measures 56.063″ closed and 238.063″ fully extended. Performance-Built and Warranty-Backed, this replacement cylinder supports reliable single-acting lift use on heavy dump body systems. FASTSHIP eligible—order by 12:00 CST for same-day shipping. Demolish Downtime.

Base End Mount Type:

Trunnion

Closed:

56.063″

Extend Port/Plunger:

-16 SAE ORB Out Base Trunnion

Open Extended Length:

238.063″

Rod End Mount Type:

Trunnion

Tele Largest Stage OD:

6″

Telescopic Stages:

4

Telescopic Stroke:

182″

Trunnion Closed:

6.85

Trunnion Open:

188.85

Trunnion Pin Dia:

2.25

Trunnion Pin Length:

2.00

Trunnion Width:

11.938

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

24 Month Warranty

Warranty Coverage:
Binotto telescopic cylinders are covered by a 24-month limited warranty against defects in materials and workmanship under standard use conditions.

Exclusions & Conditions:

  • Damage from misuse, improper installation, or conditions beyond normal operation is not covered.
  • Installation or workmanship guarantees may be provided by HCI but typically align with Binotto’s standard warranty.

Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
