70555361 Hyva Replacement DAT Telescopic Cylinders
$5,500.00
Specifications for FC A6.5-4-167-K8-DA-DHC
Category | Replacement Telescopic Hydraulic Cylinders |
---|---|
Fits Manufacturer | Hyva |
Function | Dump Hoist / Body Raise / Tipping |
Features | Double-Acting Telescopic Hydraulic Cylinders (DAT), Trunnion |
SKU | FC A6.5-4-167-K8-DA-DHC |
---|---|
Weight | 505 lbs |
Stroke | 166.90″ |
---|---|
Closed | 54.93″ |
Open Extended Length | 221.83″ |
Trunnion Closed | 7.62 |
Trunnion Open | 174.52 |
Trunnion Width | 11.93 |
Trunnion Pin Dia | 2.25 |
Trunnion Pin Length | 2.00 |
Extend Port/Plunger | -12 SAE ORB Out Base Trunnion |
Retract Port/Plunger | 3/8 BSP Out End of Plunger |
Description

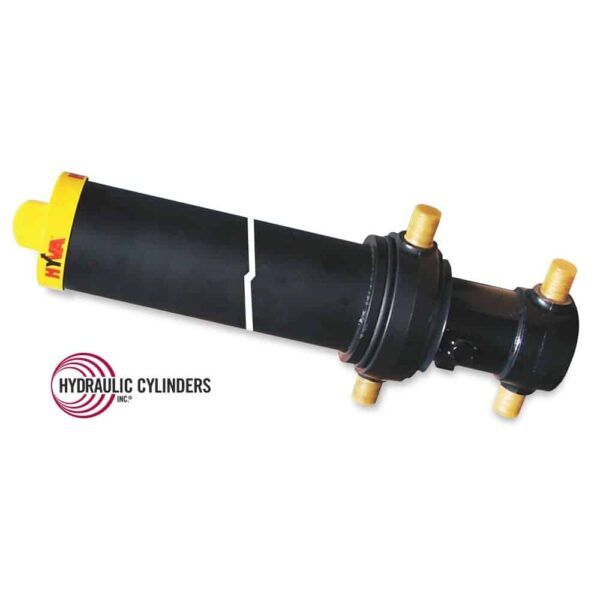

The Hyva Replacement DAT Telescopic Cylinder is built to replace OEM part number 70555361. It powers dump hoist, body raise, and tipping systems with reliable, heavy-duty performance. This double-acting trunnion-mounted cylinder delivers smooth operation with a 166.90″ stroke and a compact 54.93″ closed length.
The cylinder extends fully to 221.83″, making it ideal for high-lift applications. Port sizes are matched for easy setup: -12 SAE ORB at the base for extension and 3/8 BSP at the plunger end for retraction. The trunnion includes a 2.25″ pin diameter, 2.00″ pin length, and 11.93″ width for OEM fitment.
Built to meet or exceed OEM standards, this aftermarket replacement performs in tough fleet environments. FASTSHIP eligible—order by 12:00 PM CST for same-day shipping. Performance-built and warranty-backed. Demolish Downtime.
166.90″
54.93″
221.83″
7.62
174.52
11.93
2.25
2.00
-12 SAE ORB Out Base Trunnion
3/8 BSP Out End of Plunger
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hyva telescopic cylinders include a 12-month limited warranty from the date of first use (typically the vehicle registration date), covering defects in materials and workmanship.
Exclusions & Conditions:
- Warranty does not cover fitting/removal costs, downtime, lost profits, or incidental damages.
- Coverage excludes misuse, improper maintenance, or unauthorized modifications.
- Hyva reserves the right to repair, replace components, or replace the entire unit at their discretion.
Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
