Internally Threaded Heads

$53.00 – $550.00

Categories	Hydraulic Cylinder Heads, Hydraulic Cylinder Seal Kits & Component Parts, Internally Threaded Head

Group Specs

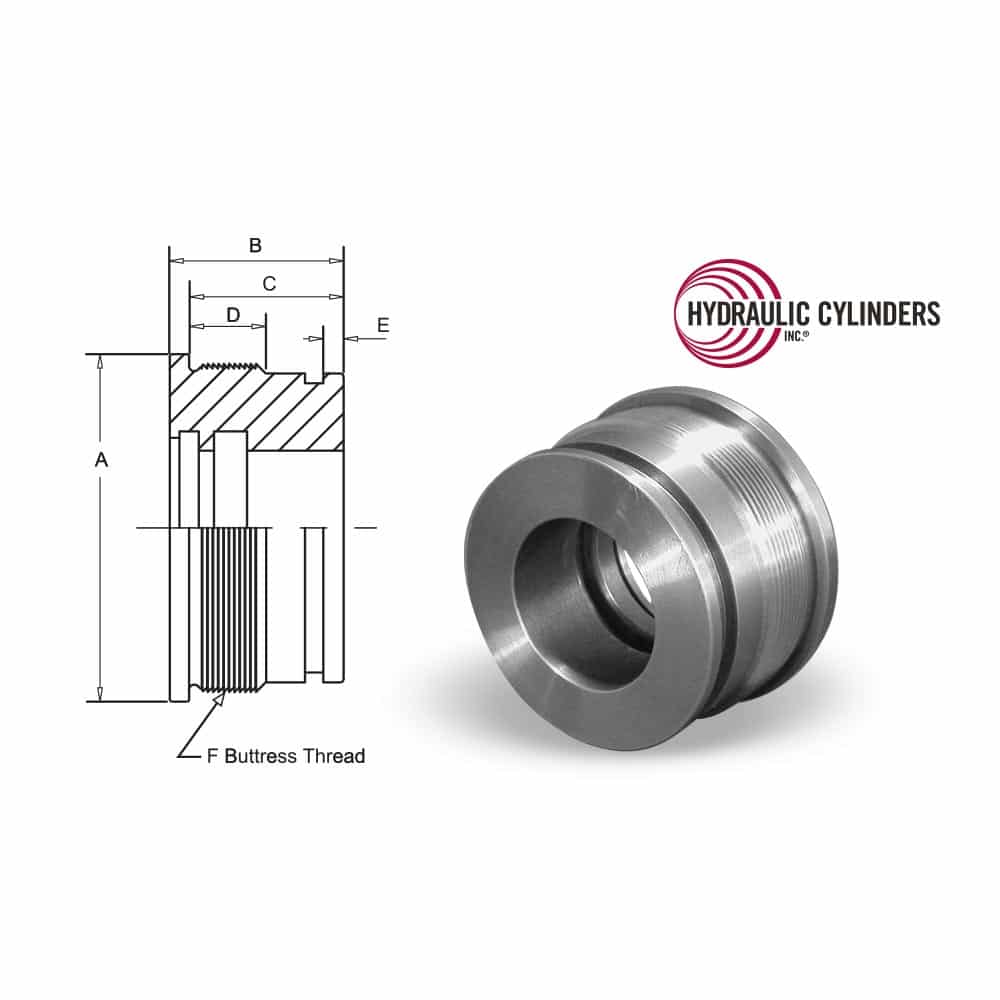

SKU	Bore +0.003"/–0.003"	Rod +0.003"/–0.003"	A	B	C	D	E	F	Seal Kit SKU	List Price
1070150075	1.500	0.750	2.00	1.75	1.50	0.75	0.16	1-3/4"-12	1080150075	$75.00
1070150100	1.500	1.000	2.00	2.00	1.50	0.75	0.25	1-3/4"-12	1080150100	$75.00
1070200100	2.000	1.000	2.50	2.12	1.93	1.00	0.12	2-1/4"-12	1080200100	$75.00
1070200112	2.000	1.125	2.50	2.00	1.75	0.75	0.19	2-1/4"-12	1080200112	$80.00
1070200125	2.000	1.250	2.50	2.25	2.00	1.00	0.19	2-1/4"-12	1080200125	$100.00
1070250100	2.500	1.000	3.00	2.00	1.75	0.75	0.19	2-3/4"-12	1080250100	$100.00
1070250112	2.500	1.125	3.00	2.00	1.75	0.75	0.19	2-3/4"-12	1080250112	$100.00
1070250125	2.500	1.250	3.00	2.00	1.75	0.75	0.19	2-3/4"-12	1080250125	$100.00
1070250150	2.500	1.500	3.00	2.38	2.00	1.00	0.19	2-3/4"-12	1080250150	$100.00
1070250175	2.500	1.750	3.00	2.25	1.88	0.88	0.25	2-3/4"-12	1080250175	$100.00
1070275200	2.750	2.000	$53.00
1070300100	3.000	1.000	3.50	2.25	2.00	1.00	0.19	3-1/4"-12	1080300100	$100.00
1070300125	3.000	1.250	3.50	2.25	2.00	1.00	0.19	3-1/4"-12	1080300125	$100.00
1070300138	3.000	1.375	$100.00
1070300150	3.000	1.500	3.50	2.25	2.00	1.00	0.19	3-1/4"-12	1080300150	$110.00
1070300175	3.000	1.750	3.50	2.25	2.00	1.00	0.19	3-1/4"-12	1080300175	$110.00
1070300200	3.000	2.000	3.50	2.50	2.00	1.00	0.19	3-1/4"-12	1080300200	$120.00
1070325125	3.250	1.250	3.75	2.25	2.00	1.00	0.19	3-1/2"-12	1080325125	na
1070325138	3.250	1.380	3.75	2.25	2.00	1.00	0.19	3-1/2"-12	1080325138	$125.00
1070325150	3.250	1.500	3.75	2.25	2.00	1.00	0.19	3-1/2"-12	1080325150	$125.00
1070325175	3.250	1.750	3.75	2.25	2.00	1.00	0.19	3-1/2"-12	1080325175	$125.00
1070325200	3.250	2.000	3.75	2.25	2.00	1.00	0.19	3-1/2"-12	1080325200	$125.00
1070350125	3.500	1.250	4.00	2.25	2.00	1.00	0.19	3-3/4"-12	1080350125	$125.00
1070350150	3.500	1.500	4.00	2.25	2.00	1.00	0.19	3-3/4"-12	1080350150	$135.00
1070350175	3.500	1.750	4.00	2.25	2.00	1.00	0.19	3-3/4"-12	1080350175	$135.00
1070350200	3.500	2.000	4.00	2.25	2.00	1.00	0.19	3-3/4"-12	1080350200	$135.00
1070350250	3.500	2.500	4.00	2.50	2.12	1.00	0.19	3-3/4"-12	1080350250	$135.00
1070400150	4.000	1.500	4.50	2.25	2.00	1.00	0.19	4-1/4"-12	1080400150	$150.00
1070400175	4.000	1.750	4.50	2.25	2.00	1.00	0.19	4-1/4"-12	1080400175	$135.00
1070400200	4.000	2.000	4.50	2.25	2.00	1.00	0.19	4-1/4"-12	1080400200	$150.00
1070400225	4.000	2.250	4.50	2.25	2.00	1.00	0.19	4-1/4"-12	1080400225	$150.00
1070400250	4.000	2.500	4.50	2.50	2.12	1.12	0.19	4-1/4"-12	1080400250	$150.00
1070400300	4.000	3.000	4.50	2.50	2.12	1.00	0.19	4-1/4"-12	1080400300	$150.00
1070450175	4.500	1.750	5.00	2.25	2.00	1.00	0.19	4-3/4"-12	1080450175	$175.00
1070450200	4.500	2.000	5.00	2.25	2.00	1.00	0.19	4-3/4"-12	1080450200	$175.00
1070450225	4.500	2.250	5.00	2.25	2.00	1.00	0.19	4-3/4"-12	1080450225	$175.00
1070450250	4.500	2.500	$175.00
1070450350	4.500	3.500	5.00	2.38	2.00	1.00	0.19	4-3/4"-12	1080450350	$190.00
1070500175	5.000	1.750	5.50	2.25	2.00	1.00	0.19	5-1/4"-12	1080500175	$190.00
1070500200	5.000	2.000	5.50	2.25	2.00	1.00	0.19	5-1/4"-12	1080500200	$160.00
1070500250	5.000	2.500	5.50	2.50	2.12	1.12	0.19	5-1/4"-12	1080500250	$200.00
1070500300	5.000	3.000	5.50	2.50	2.12	1.12	0.19	5-1/4"-12	1080500300	$200.00
1070600200	6.000	2.000	6.50	2.50	2.12	1.12	0.19	6-1/4"-12	1080600200	$250.00
1070600250	6.000	2.500	6.50	2.50	2.12	1.12	0.19	6-1/4"-12	1080600250	$260.00
1070600300	6.000	3.000	6.50	2.50	2.12	1.12	0.19	6-1/4"-12	1080600300	$260.00
1070600350	6.000	3.500	6.50	2.50	2.12	1.12	0.19	6-1/4"-12	1080600350	$275.00
1070700300	7.000	3.000	7.50	2.88	2.50	1.12	0.56	7-1/4"-10	1080700300	$350.00
1070700350	7.000	3.500	7.50	2.88	2.50	1.12	0.56	7-1/4"-10	1080700350	$360.00
1070700400	7.000	4.000	7.50	2.88	2.50	1.12	0.56	7-1/4"-10	1080700400	$415.00
1070800400	8.000	4.000	8.50	3.75	3.25	1.50	0.88	8-1/4"-10	1080800400	$550.00
1070800450	8.000	4.500	8.50	3.75	3.25	1.50	0.88	8-1/4"-10	1080800450	$550.00
1070800500	8.000	5.000	8.50	3.75	3.25	1.50	0.88	8-1/4"-10	1080800500	$550.00
