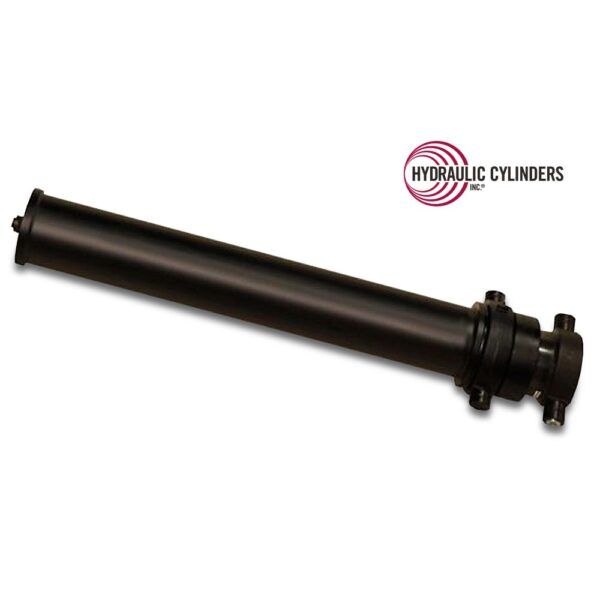

| SKU | CS80-4.5-3 DA |
|---|---|
| Categories | Cap Over / Cover Tube, Double-Acting Telescopic Cylinders, Replacement Telescopic Cylinders |
| Manufacturer | Miscellaneous Manufacturers |
| Functions | Cap Over / Cover Tube Dump, Dump Hoist / Body Raise / Tipping |
| Type | Dump |
| Weight | 214 lbs |
|---|---|
| Base End Mount Type | Trunnion |
| Closed | 48.00″ |
| Extend Port/Plunger | -12 SAE ORB |
| Open Extended Length | 128.00″ |
| Retract Port/Plunger | .375 NPT Out End Of Plunger |
| Rod End Mount Type | Trunnion |
| Tele Largest Stage OD | 4″ |
| Telescopic Number of Stages | 3 |
| Telescopic Stroke | 80″ |
| Trunnion Closed | 5.50 |
| Trunnion Pin Length | 2.00 |
| Trunnion Width | 9.75 |
| Trunnion Pin Dia | 1.88 |
| Reference Part Number | HCI Part Number | Reference Name | Equipment Manufacturer | Equipment Model | Equipment Type | Industry | Replacement Name | Cylinder Type | Cylinder Function |
|---|---|---|---|---|---|---|---|---|---|
| 108204 | CS80-4.5-3 DA | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 15-01-0096 | CS80-4.5-3 DA | Lanau | Lanau | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| 300359-AG | CS80-4.5-3 DA | Highway Equipment Co | Highway Equipment Co | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS-80-4.5-3 DA | CS80-4.5-3 DA | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS80-4.5-3 DA | CS80-4.5-3 DA | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| CS80-4.5-3DA | CS80-4.5-3 DA | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
| PSD0450803VM0134 | CS80-4.5-3 DA | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Mailhot | DAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
