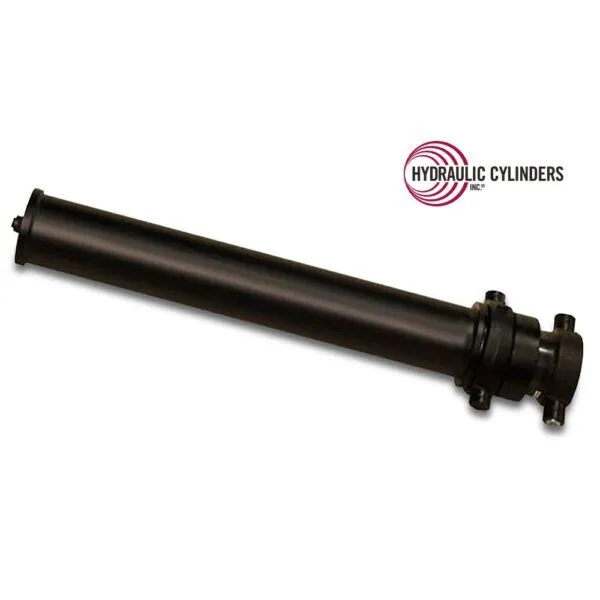

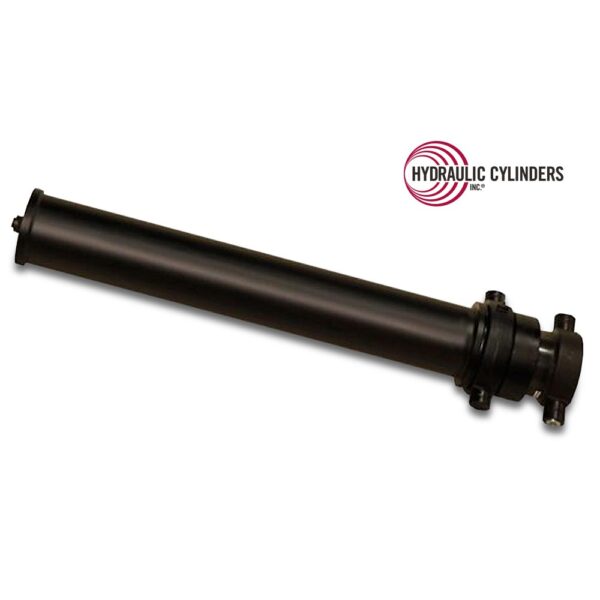

PSD0450853MF0169 (Mailhot) Replacement DAT Dump Cylinders

PSD0450853MF0169 (Mailhot) Replacement DAT Dump Cylinders

Call For Availabilty

Specifications for CS85-4.5-3 DA

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Fits Manufacturer Mailhot
Functions Cap Over / Cover Tube Dump, Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Double-Acting Telescopic Hydraulic Cylinders (DAT)
SKU CS85-4.5-3 DA
Weight 265 lbs
Base End Mount Type

Trunnion
Closed

48.00″
Extend Port/Plunger

-12 SAE ORB
Retract Port/Plunger

Out End Of Plunger
Open Extended Length

133.00″
Rod End Mount Type

Trunnion
Tele Largest Stage OD

4″
Telescopic Stages

3
Telescopic Stroke

85″
Trunnion Closed

5.50
Trunnion Pin Length

2.00
Trunnion Width

9.75
Trunnion Pin Dia

1.88

Description

PSD0450853MF0169 CS85-4.5-3 DA replacement double-acting telescopic dump hoist hydraulic cylinders offer trunnion mounts at the cylinder base and rod ends.

Base End Mount Type:

Trunnion

Closed:

48.00″

Closed (in):

48.00

Extend Port/Plunger:

-12 SAE ORB

Retract Port/Plunger:

Out End Of Plunger

Open Extended Length:

133.00″

Open Extended Length (in):

133.00

Rod End Mount Type:

Trunnion

Tele Largest Stage OD:

4″

Tele Largest Stage OD (in):

4

Telescopic Stages:

3

Telescopic Stroke:

85″

Telescopic Stroke (in):

85

Trunnion Closed:

5.50

Trunnion Pin Length:

2.00

Trunnion Width:

9.75

Trunnion Pin Dia:

1.88

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
89046 CS85-4.5-3 DA Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS85-4.5-3 DA CS85-4.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS85-4.5-3 DA CS85-4.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS85-4.5-3DA CS85-4.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PSD0450853MF0169 CS85-4.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
