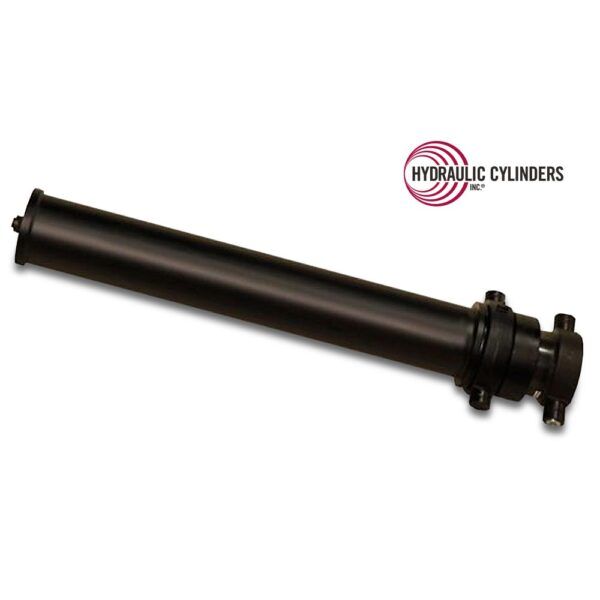

PSD0551103VM0136 (Mailhot) Replacement DAT Dump Trailer Cylinders

PSD0551103VM0136 (Mailhot) Replacement DAT Dump Trailer Cylinders

Call For Availabilty

Specifications for CS110-5.5-3 DA

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Fits Manufacturer Mailhot
Functions Cap Over / Cover Tube Dump, Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Double-Acting Telescopic Hydraulic Cylinders (DAT)
SKU CS110-5.5-3 DA
Weight 360 lbs
Base End Mount Type

Trunnion
Closed

57.75″
Extend Port/Plunger

-12 SAE ORB
Open Extended Length

167.75″
Retract Port/Plunger

.375 NPT Out End Of Plunger
Rod End Mount Type

Trunnion
Tele Largest Stage OD

5″
Telescopic Stages

3
Telescopic Stroke

110″
Trunnion Closed

6.50
Trunnion Pin Length

2.00
Trunnion Width

11.00
Trunnion Pin Dia

1.88

Description

Featuring a double-acting telescopic design, PSD0551103VM0136 CS110-5.5-3 Mailhot replacement cylinders offer a 110-in. stroke and 3 telescopic stages.

Base End Mount Type:

Trunnion

Closed:

57.75″

Closed (in):

57.75

Extend Port/Plunger:

-12 SAE ORB

Open Extended Length:

167.75″

Open Extended Length (in):

167.75

Retract Port/Plunger:

.375 NPT Out End Of Plunger

Rod End Mount Type:

Trunnion

Tele Largest Stage OD:

5″

Tele Largest Stage OD (in):

5

Telescopic Stages:

3

Telescopic Stroke:

110″

Telescopic Stroke (in):

110

Trunnion Closed:

6.50

Trunnion Pin Length:

2.00

Trunnion Width:

11.00

Trunnion Pin Dia:

1.88

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
15-01-0100 CS110-5.5-3 DA Lanau Lanau — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
300359-AB CS110-5.5-3 DA Highway Equipment Co Highway Equipment Co — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
82950 CS110-5.5-3 DA Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS 110-5.5-3 DA CS110-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS110-5.5-3-DA CS110-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS110-5.5-3 DA CS110-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS110-5.5-3DA CS110-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PSD0551103VM0136 CS110-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
