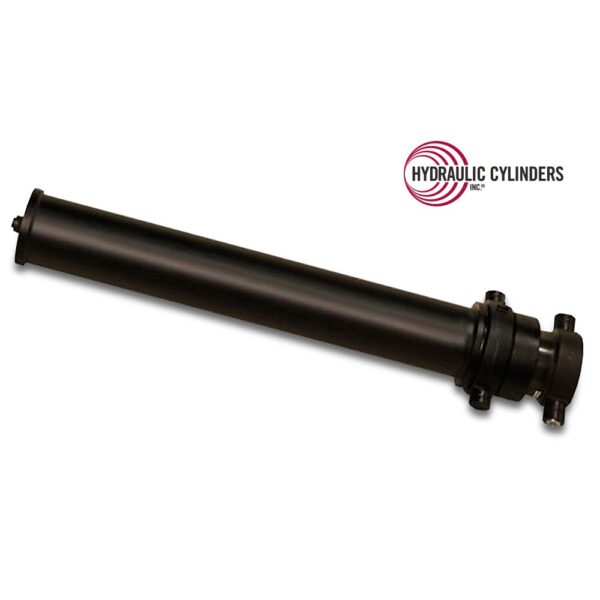

PSD0551203VM0108 (Mailhot) Replacement DAT Dump Cylinders

PSD0551203VM0108 (Mailhot) Replacement DAT Dump Cylinders

Call For Availabilty

Specifications for CS120-5.5-3DA

CategoryReplacement Telescopic Hydraulic Cylinders » Dump (Telescopic) » Dump Trucks/Trailers/Hoists
Fits Manufacturer Mailhot
Functions Cap Over / Cover Tube Dump, Dump Hoist / Body Raise / Tipping
Features Cap Over / Cover Tube, Double-Acting Telescopic Hydraulic Cylinders (DAT)
SKU CS120-5.5-3DA
Weight 360 lbs
Base End Mount Type

Trunnion
Closed

57.75″
Extend Port/Plunger

-12 SAE ORB
Open Extended Length

177.75″
Retract Port/Plunger

.375 NPT Out End Of Plunger
Rod End Mount Type

Trunnion
Tele Largest Stage OD

5″
Telescopic Stages

3
Telescopic Stroke

120″

Description

PSD0551203VM0108 Mailhot replacement double-acting telescopic hydraulic cylinders include trunnion mounts, 120-in. telescopic stroke, and 3 telescopic stages.

Base End Mount Type:

Trunnion

Closed:

57.75″

Closed (in):

57.75

Extend Port/Plunger:

-12 SAE ORB

Open Extended Length:

177.75″

Open Extended Length (in):

177.75

Retract Port/Plunger:

.375 NPT Out End Of Plunger

Rod End Mount Type:

Trunnion

Tele Largest Stage OD:

5″

Tele Largest Stage OD (in):

5

Telescopic Stages:

3

Telescopic Stroke:

120″

Telescopic Stroke (in):

120

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
15-01-0101 CS120-5.5-3 DA Lanau Lanau — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
300359-AC CS120-5.5-3 DA Highway Equipment Co Highway Equipment Co — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
87764 CS120-5.5-3 DA Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS 120-5.5-3 DA CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS 120-5.5-3DA CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS120-5.5-3-DA CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS120-5.5-3?DA CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS120-5.5-3DA CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PSD0551203VM0108 CS120-5.5-3 DA Mailhot Miscellaneous Manufacturers — Dump Truck Equipment Mailhot DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
