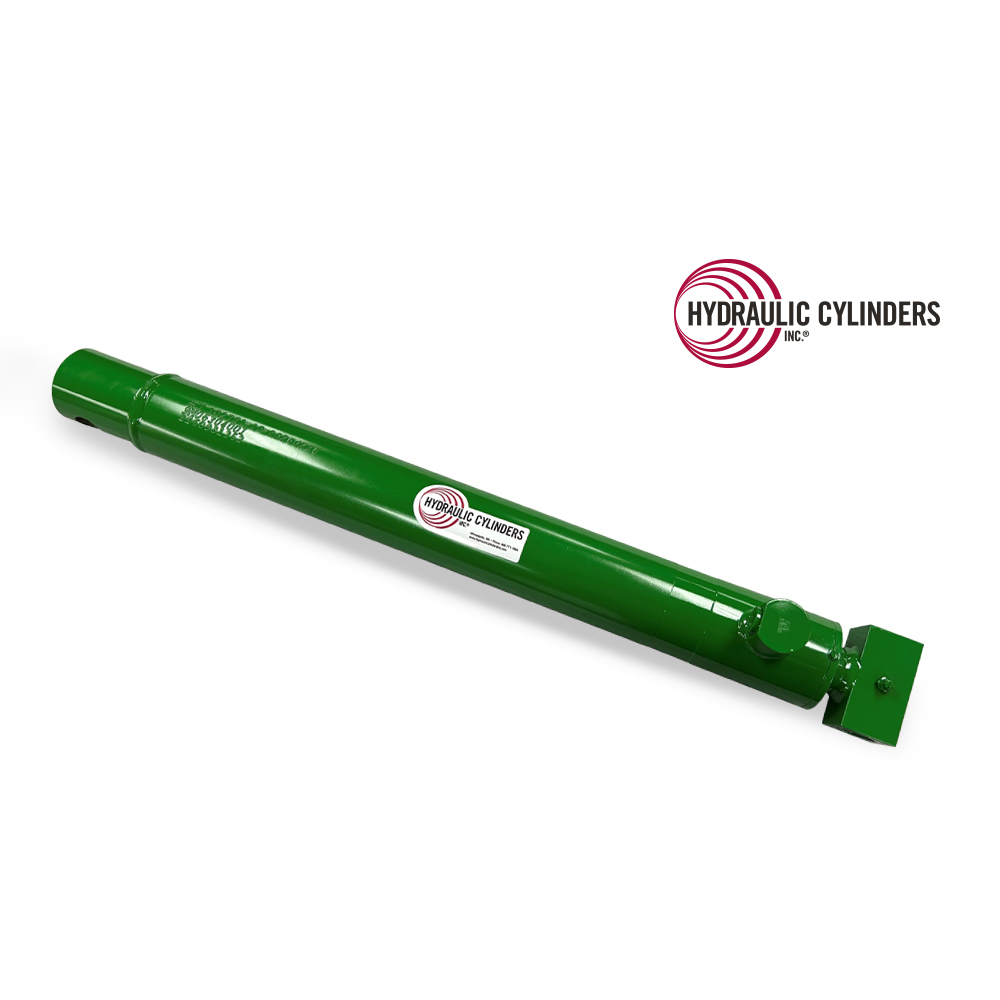

Replacement Hydraulic Boom Lift Cylinder for John Deere (PN: AH211311) Front End Loader Attachments 521, 522, 542
Specifications for 2260931252
| Category | Replacement Welded Hydraulic Cylinders » Attachments & Implements » Tractor Attachment |
|---|---|
| Fits Manufacturer | John Deere |
| Models | John Deere 521, John Deere 522, John Deere 542 |
| Function | Boom Arm Lift |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 2260931252 |
|---|---|
| Weight | 47.0 lbs |
| Bore | 63mm |
|---|---|
| Stroke | 21.25″ |
| Rod | 40mm |
| Closed | 28.75″ |
| Open Extended Length | 50.00″ |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.00″ |
| Base Mount Width | 2.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 3.40″ |
| Extend Port/Plunger | -8 SAE ORB |
| Retract Port/Plunger | -8 SAE ORB |
| Old OEM PNs | AH167143 |
Description
Replacement Boom Lift Cylinder John Deere AH211311 delivers reliable boom lift control for your front end loader attachment. This direct-fit hydraulic cylinder replaces OEM part number AH211311 and the older AH167143. It matches John Deere’s quality and toughness standards across the agricultural lineup and fits the 521, 522, and 542 front end loader attachments used on John Deere utility tractors.
This double-acting welded rod cylinder uses quality components to hold up under tough work conditions on the farm. With a 63mm bore and 40mm rod, it handles the boom lift hydraulic loads typical of front end loader work in feeding, material handling, and chore-tractor settings. It ships FASTSHIP—order by 12:00 PM CST for same-day shipping. A full list of compatible models is included below for easy reference.
Performance-built and warranty-backed. Get your equipment back to work without delay. Demolish Downtime.
63mm
21.25″
40mm
28.75″
50.00″
Drilled Thru Base
1.00″
2.75″
Cross-Tube
1.00″
3.40″
-8 SAE ORB
-8 SAE ORB
AH167143
Compatible Models:
- John Deere 521
- Years: 1999-2004
- John Deere 522
- Years: 2004-
- John Deere 542
- Years: 2004-
