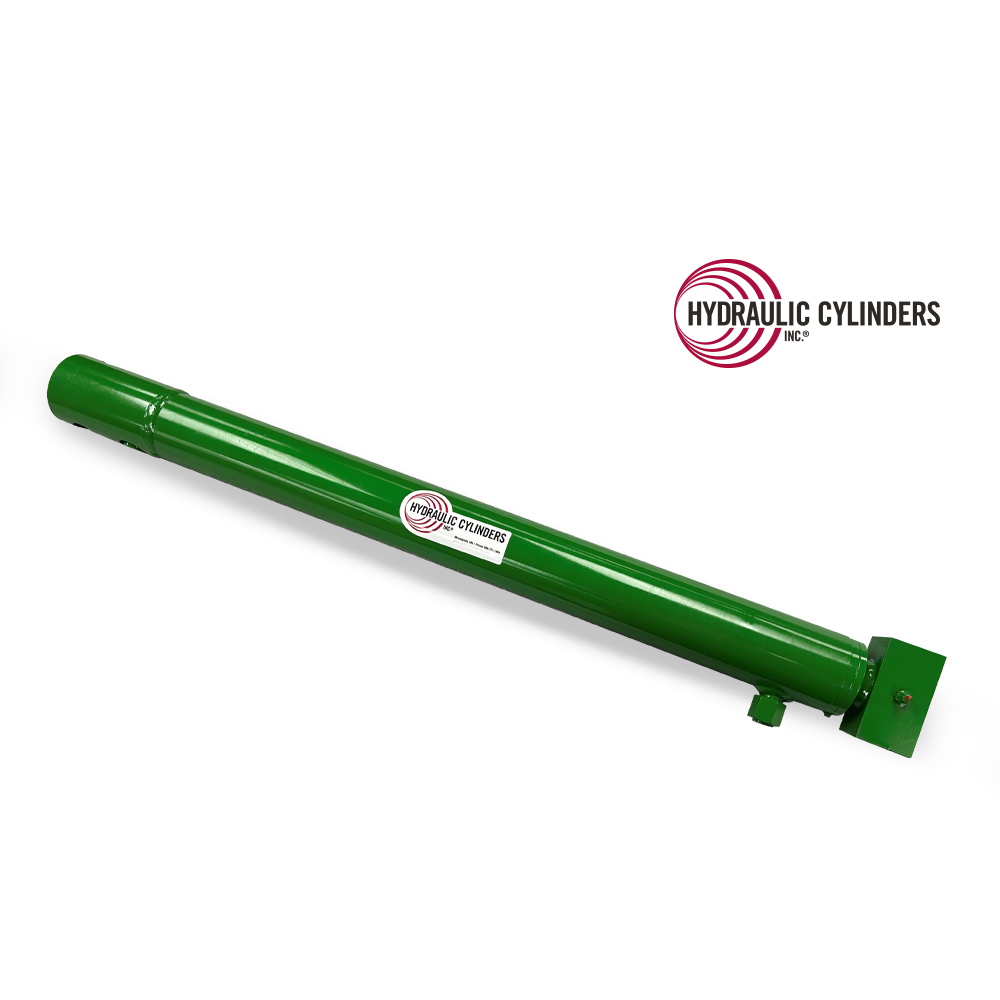

Replacement Hydraulic Bucket Tilt Cylinder for John Deere (PN: AH221999) Front End Loader Attachments 521, 522
Specifications for 2260663321
| Category | Replacement Welded Hydraulic Cylinders » Attachments & Implements » Tractor Attachment |
|---|---|
| Fits Manufacturer | John Deere |
| Models | John Deere 521, John Deere 522 |
| Function | Bucket Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 2260663321 |
|---|---|
| Weight | 37.0 lbs |
| Bore | 56MM” |
|---|---|
| Stroke | 22.50″ |
| Rod | 32MM” |
| Closed | 30.50″ |
| Open Extended Length | 53.00″ |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 1.00″ |
| Base Mount Width | 2.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 3.40″ |
| Extend Port/Plunger | -8 SAE ORB |
| Retract Port/Plunger | -8 ORFS |
| Old OEM PNs | AH164321 |
Description
Replacement Bucket Tilt Cylinder John Deere AH221999 delivers reliable bucket tilt control for your front end loader attachment. This direct-fit hydraulic cylinder replaces OEM part number AH221999 and the older AH164321. It matches John Deere’s quality standards across the agricultural lineup and fits the 521 and 522 front end loader attachments used on John Deere utility tractors and compact farm equipment.
This double-acting welded rod cylinder uses quality components to hold up under tough work conditions on the farm. With a 56mm bore and 32mm rod, it handles the bucket tilt hydraulic loads typical of loader attachment work in feeding, material handling, and chore-tractor settings. It ships FASTSHIP—order by 12:00 PM CST for same-day shipping. A full list of compatible models is included below for easy reference.
Performance-built and warranty-backed. Get your equipment back to work without delay. Demolish Downtime.
56MM”
22.50″
32MM”
30.50″
53.00″
Cross-Tube
1.00″
2.75″
Cross-Tube
1.00″
3.40″
-8 SAE ORB
-8 ORFS
AH164321
Compatible Models:
- John Deere 521
- John Deere 522
