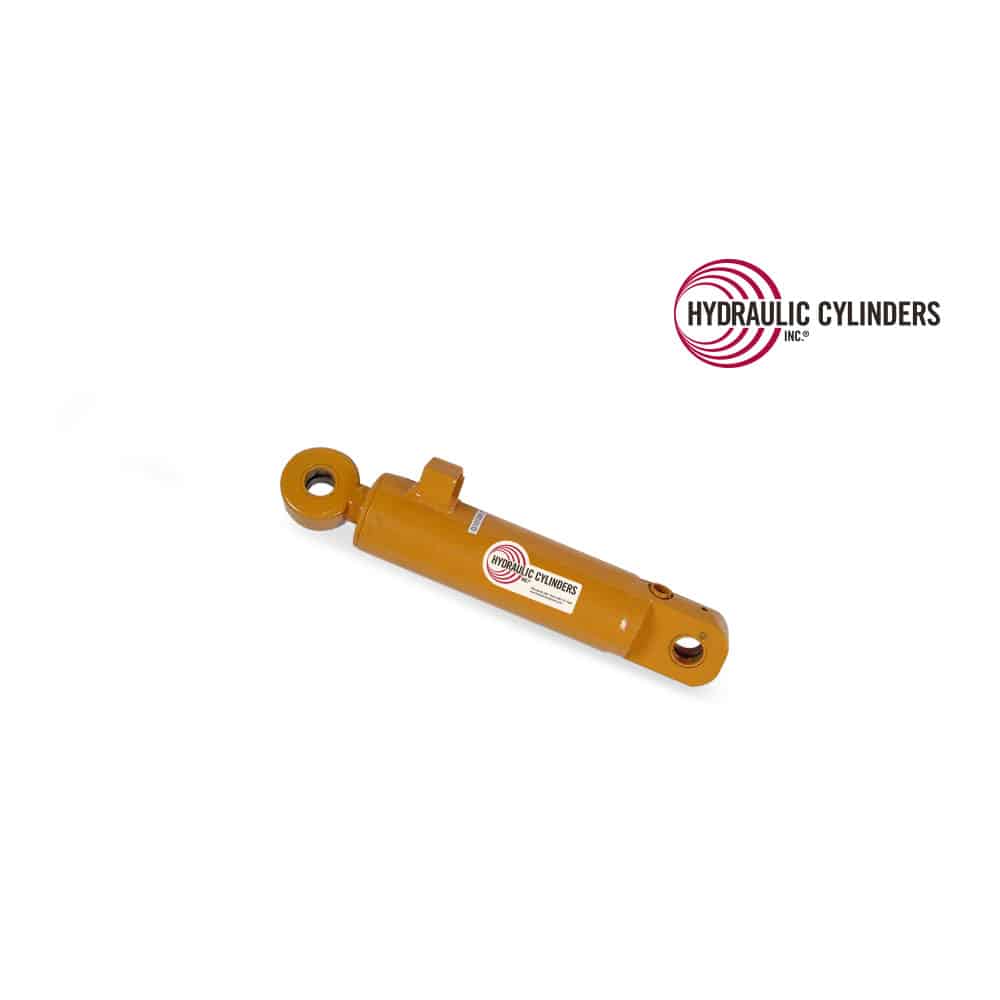

Replacement Hydraulic Dozer Tilt Cylinder for Case (PN: G101228) Crawler Dozer Models 450, 450B, 450C, 455B, 455C, 550

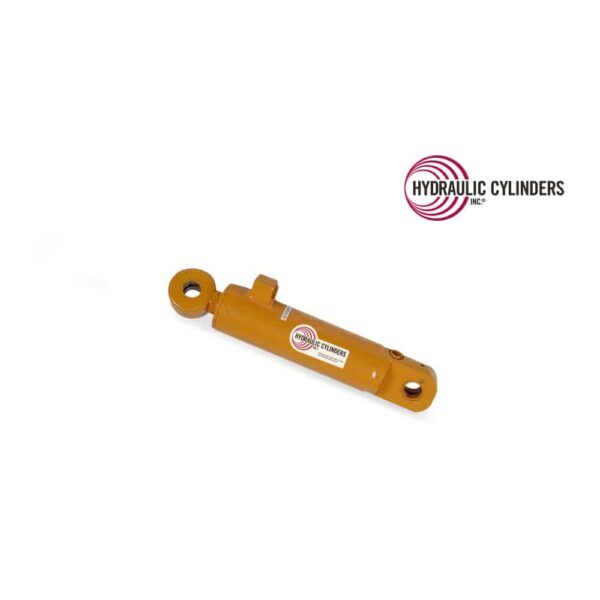

Replacement Case G101228 Dozer Tilt Cylinder w/Bushings

$1,170.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-G101228

CategoryReplacement Welded Rod Hydraulic Cylinders » Other » Crawler Dozer
Fits Manufacturer Case
Models Case 450, Case 450C, Case 455B, Case 455C, Case 480B, Case 550
Function Dozer Tilt
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-G101228
Weight 72.0 lbs
Bore

3.50″
Rod

2.00″
Stroke

8.00″
Closed

19.875″
Open Extended Length

27.875″
Base Pin Size

1.50″
Base Mount Width

2.00″
Rod Pin Size

1.50″
Rod Mount Width

2.00″
Extend Port/Plunger

-10 SAE ORB
Retract Port/Plunger

-10 SAE ORB 90D
Old OEM PNs

G34345

Description

This replacement tilt cylinder (PN: G101228) is designed for Case 450, 450C, 455B, 455C, 480B, and 550 machines. It includes bushings and offers solid performance for blade control applications. Engineered to meet OEM standards, it’s a dependable replacement part that fits and functions like the original.

Bore:

3.50″

Rod:

2.00″

Stroke:

8.00″

Closed:

19.875″

Open Extended Length:

27.875″

Base Pin Size:

1.50″

Base Mount Width:

2.00″

Rod Pin Size:

1.50″

Rod Mount Width:

2.00″

Extend Port/Plunger:

-10 SAE ORB

Retract Port/Plunger:

-10 SAE ORB 90D

Old OEM PNs:

G34345

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
