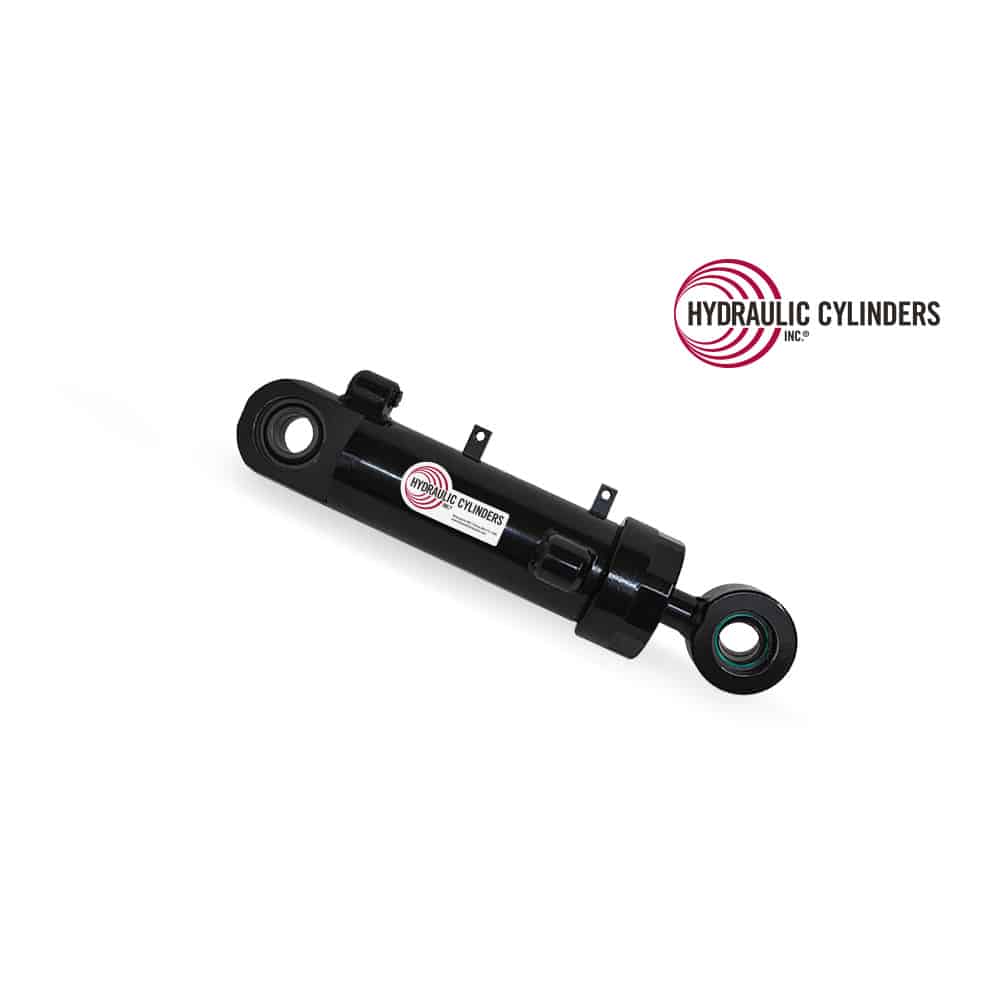

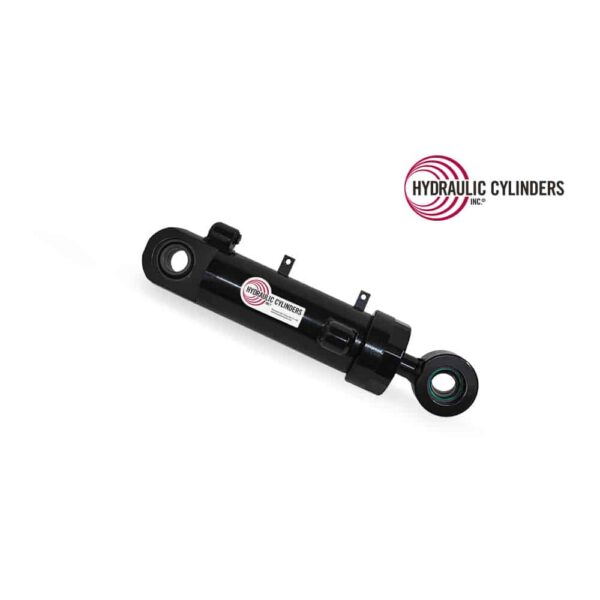

Replacement Hydraulic Tilt Cylinder for Caterpillar (PN: 3649346) Crawler Dozer Models D3K-D5K2 Series

Replacement Caterpillar 364-9346 Tilt Cylinder Equipment Models CATERPILLAR CAT D3K (JTD, LLL1340-, FFF874-), D3K2, D4K (RRR671-, MMM874-), D4K2 (KMM, KRR), D5K (JLF, YYY2001-, WWW1816-), D5K2 (KYY, TRF, KWW) DOZER

$1,553.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-364-9346

CategoryReplacement Welded Rod Hydraulic Cylinders » Other » Crawler Dozer
Fits Manufacturer Caterpillar
Models Caterpillar D3K LGP, Caterpillar D3K XL, Caterpillar D3K2 LGP, Caterpillar D3K2 XL, Caterpillar D4K2 LGP, Caterpillar D4K2 XL, Caterpillar D5K2 XL
Function Dozer Tilt
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-364-9346
Weight 51.0 lbs
Bore

3.50″
Rod

1.50″
Stroke

5.70″

Description

This replacement tilt cylinder (PN: 3649346) fits Caterpillar D3K, D3K2, D4K2, and D5K2 crawler dozers in both LGP and XL configurations. Designed for reliable blade tilt control, it meets OEM specifications for durability and performance. Ideal for restoring smooth tilt functionality on small track-type dozers.

Bore:

3.50″

Rod:

1.50″

Stroke:

5.70″

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
