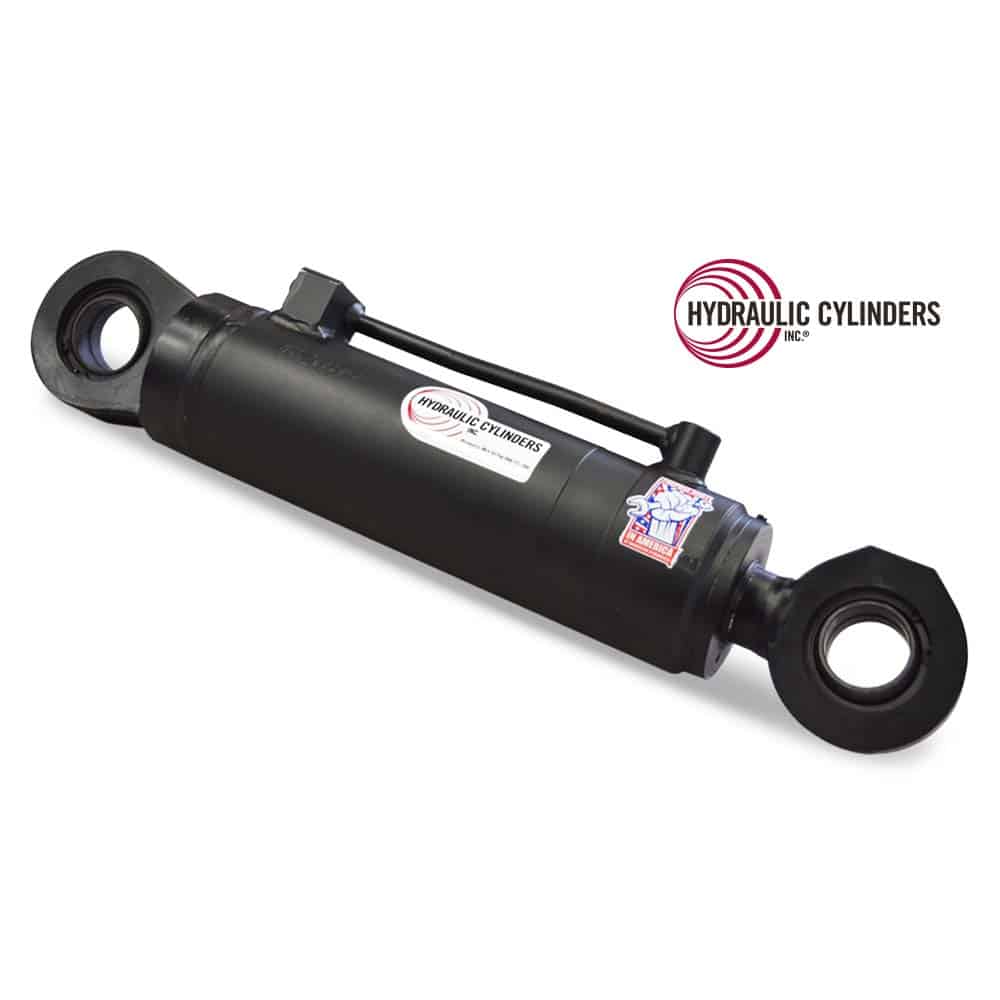

Replacement Hydraulic Grapple Tong Actuator Cylinder for Caterpillar (PN: 231-5809) Models GSH9-GSH22 Series
$3,410.00
Specifications for 1178884235
| SKU | 1178884235 |
|---|---|
| Weight | 81 lbs |
| Bore | 90mm |
|---|---|
| Rod | 50mm |
| Stroke | 230mm |
| Closed | 565mm |
| Open Extended Length | 795mm |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 50mm |
| Base Mount Width | 1.75″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 50mm |
| Rod Mount Width | 1.75″ |
| Extend Port/Plunger | 3/8 BSPP |
| Retract Port/Plunger | 3/8 BSPP |
Description
This replacement grapple cylinder for Caterpillar GSH9-GSH22 delivers strong hydraulic performance for demanding scrap work. It replaces OEM part number 231-5809 and fits all tongs across Caterpillar GSH9 through GSH22B models. The welded rod, double-acting design ensures smooth, balanced grip action in tough environments.
Built to meet or exceed OEM standards, this Performance-Built cylinder includes full Warranty-Backed protection and qualifies for FASTSHIP—order before 12:00 CST for same-day shipping. Demolish downtime with a direct-fit replacement built to perform when the job demands more.
90mm
50mm
230mm
565mm
795mm
3000
Spherical Bearing
50mm
1.75″
Spherical Bearing
50mm
1.75″
3/8 BSPP
3/8 BSPP
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
