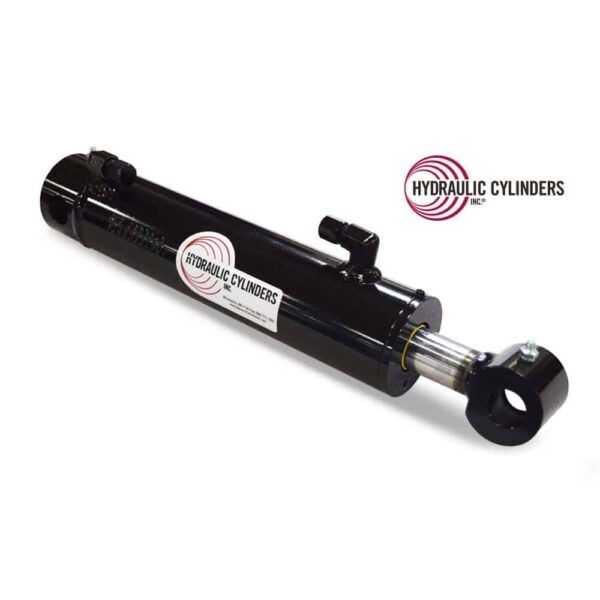

Replacement Hydraulic 4-in-1 Cylinder for Bobcat (PN: 6815651) Skid Steer Combination Buckets (60-84 inch)
$595.00
Specifications for 1485331907
| SKU | 1485331907 |
|---|---|
| Weight | 32 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.25″ |
| Stroke | 8.00″ |
| Closed | 24.25″ |
| Open Extended Length | 32.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.00″ |
| Base Mount Width | 3.00″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 2.00″ |
| Extend Port/Plunger | -6 JIC 90D |
| Retract Port/Plunger | -6 JIC 90D |
| Old OEM PNs | 6589416, 6808218 |
Description
Replacement 4-in-1 combination bucket cylinder for Bobcat restores full function to your multi-use skid steer attachment. A 4-in-1 combination bucket works as a standard bucket, dozer blade, clam shell, and scraper. This welded rod cylinder powers the hydraulic jaw that opens and closes the bucket shell.
It fits Bobcat 60, 62, 66, 68, 74, 80, and 84 inch combination buckets. The double-acting rod design gives smooth, two-way motion for clamping, dumping, grading, and pushing—ideal for cleanup, land work, and material jobs.
Built from all-steel components and made in the USA. This Performance-Built and Warranty-Backed cylinder is FASTSHIP eligible—order by 12:00 CST for same-day shipping. Demolish Downtime.
2.50″
1.25″
8.00″
24.25″
32.25″
3000
Drilled Thru Base
1.00″
3.00″
Cross-Tube
1.00″
2.00″
-6 JIC 90D
-6 JIC 90D
6589416, 6808218
