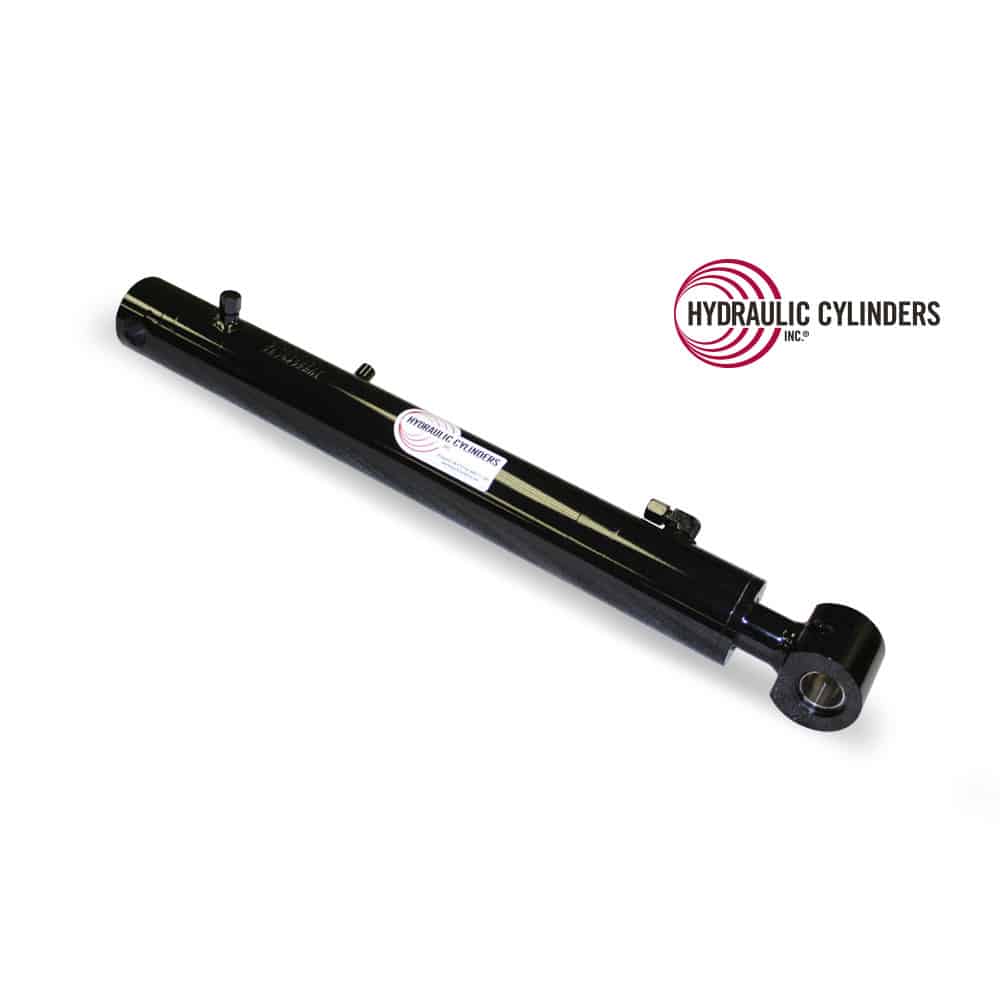

Replacement Hydraulic Arm Cylinder for Bobcat (PN: 7168224) Excavator Models E16, E19, E19e, E20, E20e, E20Z, DX19, 324
$1,300.00
Specifications for 1879472801
| Category | Replacement Welded Rod Hydraulic Cylinders » Excavator » Compact/Mini Excavator |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 324, Bobcat DX19, Bobcat E16, Bobcat E19, Bobcat E19e, Bobcat E20, Bobcat E20e, Bobcat E20z |
| Function | Arm Crowd Dipper Dipperstick Dip Stick Ditching |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1879472801 |
|---|---|
| Weight | 45 lbs |
| Bore | 2.375″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 16.75″ |
| Closed | 26.375″ |
| Open Extended Length | 43.125″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 30mm |
| Base Mount Width | 2.875″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 30mm |
| Rod Mount Width | 2.625″ |
| Extend Port/Plunger | -6 JIC |
| Retract Port/Plunger | -6 JIC 90D |
Description
The Replacement Hydraulic Arm Cylinder for Bobcat E16, E19, E19e, E20, E20e, E20Z, DX19 and 324 excavators (OEM Part Number 7168224) delivers smooth and reliable arm crowd control. This double-acting welded rod hydraulic cylinder (hydraulic ram) is built in the USA from all-steel components. It meets OEM specs for a direct fit and long service life in tough conditions.
It powers the arm crowd or dipperstick function. As a result, your machine gains steady force when trenching, lifting or loading. The rugged, welded design resists wear and, therefore, lowers maintenance downtime. In addition, it gives consistent control across all listed Bobcat models.
FASTSHIP eligible—order by 12:00 PM CST for same-day shipping. Performance-Built and Warranty-Backed to keep your Bobcat excavator productive and ready for work. Demolish Downtime.
2.375″
1.50″
16.75″
26.375″
43.125″
3000
Drilled Thru Base
30mm
2.875″
Cross-Tube
30mm
2.625″
-6 JIC
-6 JIC 90D
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
