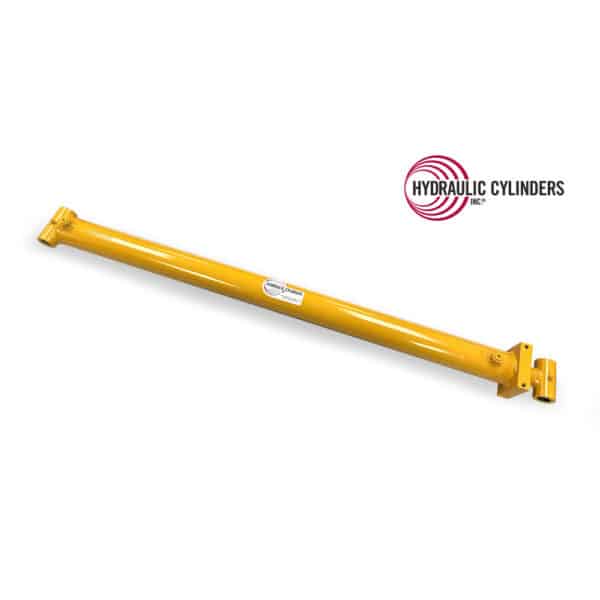

Replacement Hydraulic Stakedown Cylinder for Vermeer (PN: 296358164) Horizontal Direction Drill Models D20x22, D24x40, D24x40, D60x90
$1,070.00
Specifications for 2210277446
| SKU | 2210277446 |
|---|---|
| Weight | 58.0 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 40.00″ |
| Closed | 48.00″ |
| Open Extended Length | 88.00″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Cross-Tube |
| Base Pin Size | 1.00″ |
| Base Mount Width | 3.90″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 3.40″ |
| Extend Port/Plunger | -6 JIC |
| Retract Port/Plunger | -6 JIC |
Description
The Replacement Hydraulic Stakedown Cylinder for Vermeer (PN 296358164) is built for the D20x22, D24x40, and D60x90 Navigator horizontal directional drills. This welded, double-acting rod cylinder controls the stakedown function that anchors the machine securely during drilling.
Made to OEM standards for strength and reliability. Its welded construction handles heavy side loads and maintains precise movement through repeated use. The double-acting design provides strong, even hydraulic force in both directions, giving smooth control over aggressive or rotary stakedown systems.
Each cylinder is a direct-fit replacement for the original Vermeer 296358164 part, built to match factory dimensions and performance. It ensures consistent operation and lasting field reliability under demanding conditions.
Every cylinder is Performance-Built and Warranty-Backed, providing proven quality and long service life. FASTSHIP eligible — order by 12:00 CST for same-day shipping. Demolish Downtime.
2.50″
1.50″
40.00″
48.00″
88.00″
3000
Cross-Tube
1.00″
3.90″
Cross-Tube
1.00″
3.40″
-6 JIC
-6 JIC
