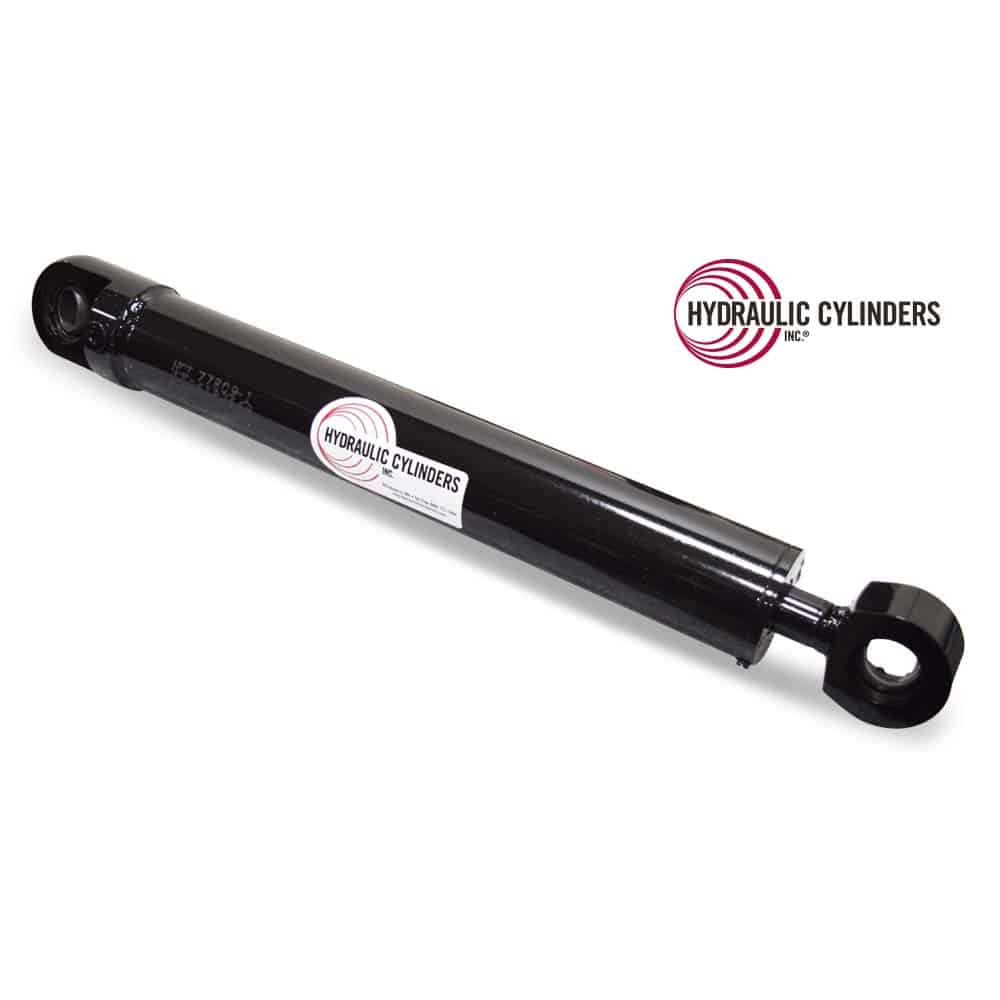

Replacement Hydraulic Thumb/Bucket Clamp Cylinder for John Deere and Hitachi (PN: AH216639) Excavator Models 26-110 Series, ZX26-ZX35 Series

Replacement Hydraulic Thumb Cylinder for John Deere 26G
  • Replacement Hydraulic Thumb Cylinder for John Deere 26G
  • Replacement Hydraulic Thumb Cylinder for John Deere 26G
  • Replacement Hydraulic Thumb Cylinder for John Deere 26G

$1,400.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1596187568

Categories Excavator, Mini Excavator, Replacement Welded Rod Hydraulic Cylinders
Fits Manufacturer John Deere
Models Hitachi ZX26U-5N, Hitachi ZX30U-5N, Hitachi ZX35U-5N, John Deere 110, John Deere 110TLB, John Deere 26G, John Deere 27 ZTS, John Deere 27C ZTS, John Deere 27D, John Deere 30G, John Deere 35 ZTS, John Deere 35C ZTS, John Deere 35D, John Deere 35G
Function Thumb / Bucket Clamp
Types Excavator, Mini Excavators
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1596187568
Weight 26 lbs
Bore

2.00″
Rod

1.00″
Stroke

13.43″
Closed

21.09″
Open Extended Length

34.52″
Base End Mount Type

Spherical Bearing
Base Pin Size

1.00″
Base Mount Width

1.25″
Rod End Mount Type

Spherical Bearing
Rod Pin Size

1.00″
Rod Mount Width

1.375″
Extend Port/Plunger

M14x1.5
Retract Port/Plunger

M14x1.5

Description

This replacement hydraulic thumb cylinder (OEM part number AH216639) fits both John Deere and Hitachi mini excavators, including John Deere models 26G, 27 ZTS, 27C ZTS, 27D, 30G, 35 ZTS, 35C ZTS, 35D, 35G, 110 and 110TLB, and Hitachi models ZX26U-5N, ZX30U-5N, and ZX35U-5N. It meets or exceeds OEM specifications, ensuring dependable operation.

Bore:

2.00″

Rod:

1.00″

Stroke:

13.43″

Closed:

21.09″

Open Extended Length:

34.52″

Base End Mount Type:

Spherical Bearing

Base Pin Size:

1.00″

Base Mount Width:

1.25″

Rod End Mount Type:

Spherical Bearing

Rod Pin Size:

1.00″

Rod Mount Width:

1.375″

Extend Port/Plunger:

M14x1.5

Retract Port/Plunger:

M14x1.5
