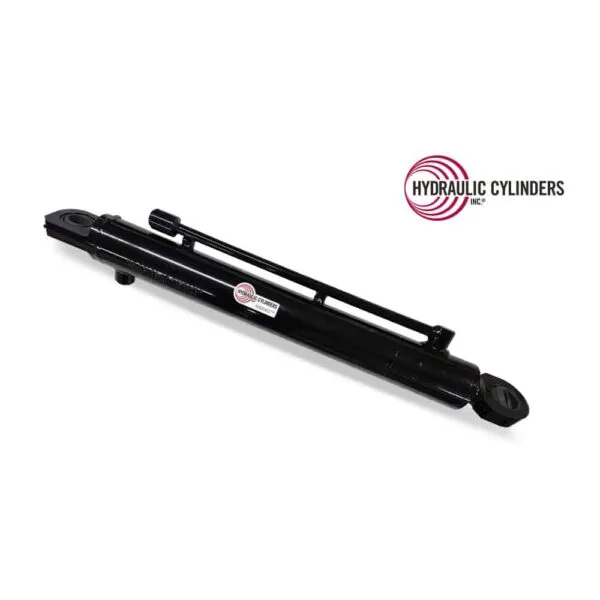

Replacement Hydraulic Thumb, Bucket Clamp Cylinder for Kubota (PN: 70091-00096) Excavator Model Series KX and U
$1,800.00
Specifications for 1247147409
| Category | Replacement Welded Rod Hydraulic Cylinders » Excavator » Compact/Mini Excavator |
|---|---|
| Fits Manufacturer | Kubota Hydraulic Cylinders |
| Models | Kubota KX057-4, Kubota KX121-3, Kubota KX121-3S, Kubota KX121-3ST, Kubota U35, Kubota U35-4, Kubota U35-S2, Kubota U35S, Kubota U45S, Kubota U45ST, Kubota U55, Kubota U55-4 |
| Function | Thumb / Bucket Clamp |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1247147409 |
|---|---|
| Weight | 45 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 18.00″ |
| Closed | 28.00″ |
| Open Extended Length | 46.00″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 1.25″ |
| Base Mount Width | 1.00″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 1.00″ |
| Extend Port/Plunger | -10 SAE ORB 90D |
| Retract Port/Plunger | -10 SAE ORB 90D |
| Old OEM PNs | 70091-00152 |
Description
This replacement thumb cylinder Kubota KX/U Series restores bucket clamp function on mid-size excavators. It replaces OEM part number 70091-00096 and fits a wide range of Kubota machines, including KX057-4, KX121-3, KX121-3S, KX121-3ST, U35, U35-4, U35-S2, U35S, U45S, U45ST, U55, and U55-4. The welded rod, double-acting hydraulic build ensures smooth clamping action and dependable control.
This Performance-Built cylinder meets or exceeds OEM standards and handles demanding thumb and clamp cycles with ease. It includes full Warranty-Backed protection and qualifies for FASTSHIP—order before 12:00 CST for same-day shipping. Demolish downtime with a direct-fit replacement that keeps your Kubota machine moving.
2.50″
1.50″
18.00″
28.00″
46.00″
3000
Spherical Bearing
1.25″
1.00″
Spherical Bearing
1.25″
1.00″
-10 SAE ORB 90D
-10 SAE ORB 90D
70091-00152
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
