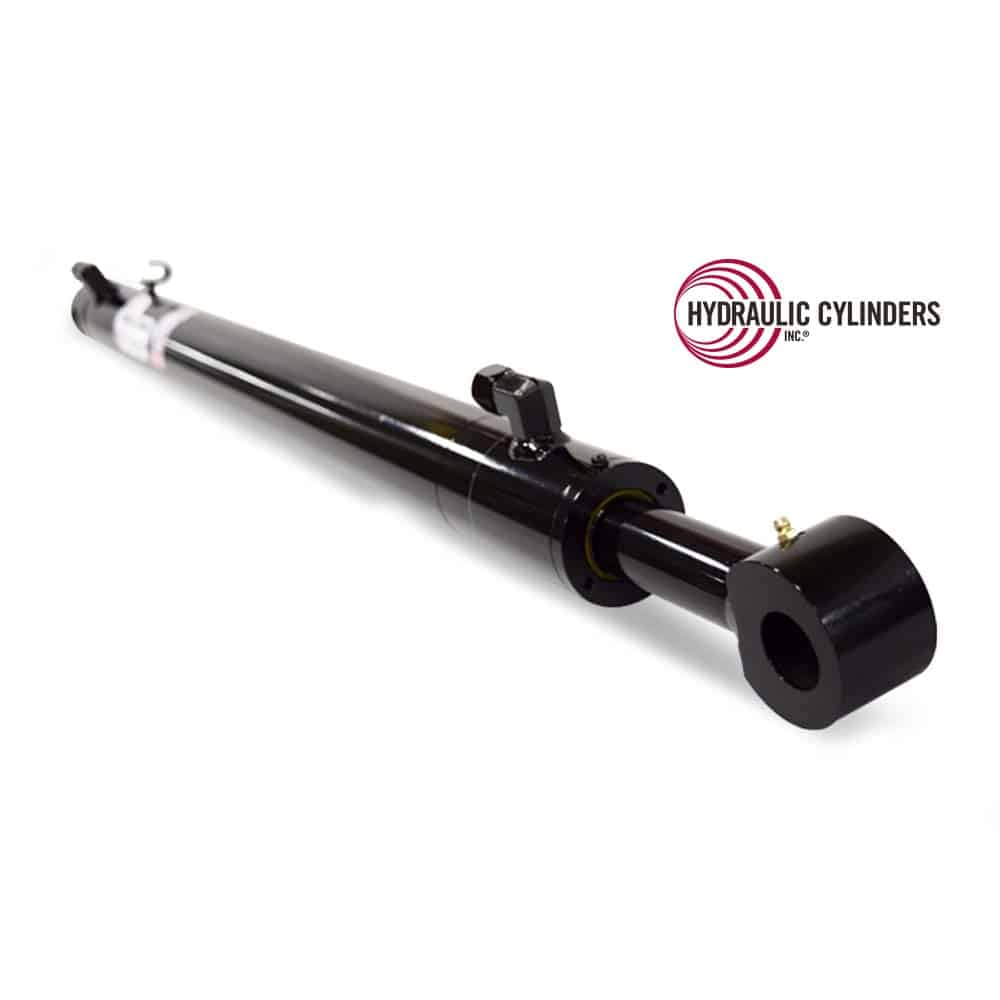

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 6812504) Skid Steer Models 753, 763
$885.00
Specifications for 1003522009
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer/Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 753, Bobcat 763 |
| Function | Boom Arm Lift |
| Type | Skid Steer/Compact Track Loader |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1003522009 |
|---|---|
| Weight | 57 lbs |
| Bore | 2.25″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 27.875″ |
| Closed | 41.563″ |
| Open Extended Length | 69.438″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 2.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 1.875″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -8 JIC |
| Old OEM PNs | 6589259 |
Description
Designed as a direct replacement for Bobcat OEM 6812504, this hydraulic lift cylinder is built for skid steer models 753 and 763. Made in the USA, it features an all-steel construction for superior durability and long-lasting performance. Ensure reliable lifting power and keep your equipment running smoothly with this high-quality replacement component.
2.25″
1.50″
27.875″
41.563″
69.438″
3000
Drilled Thru Base
1.25″
2.75″
Cross-Tube
1.25″
1.875″
-8 JIC
-8 JIC
6589259
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
