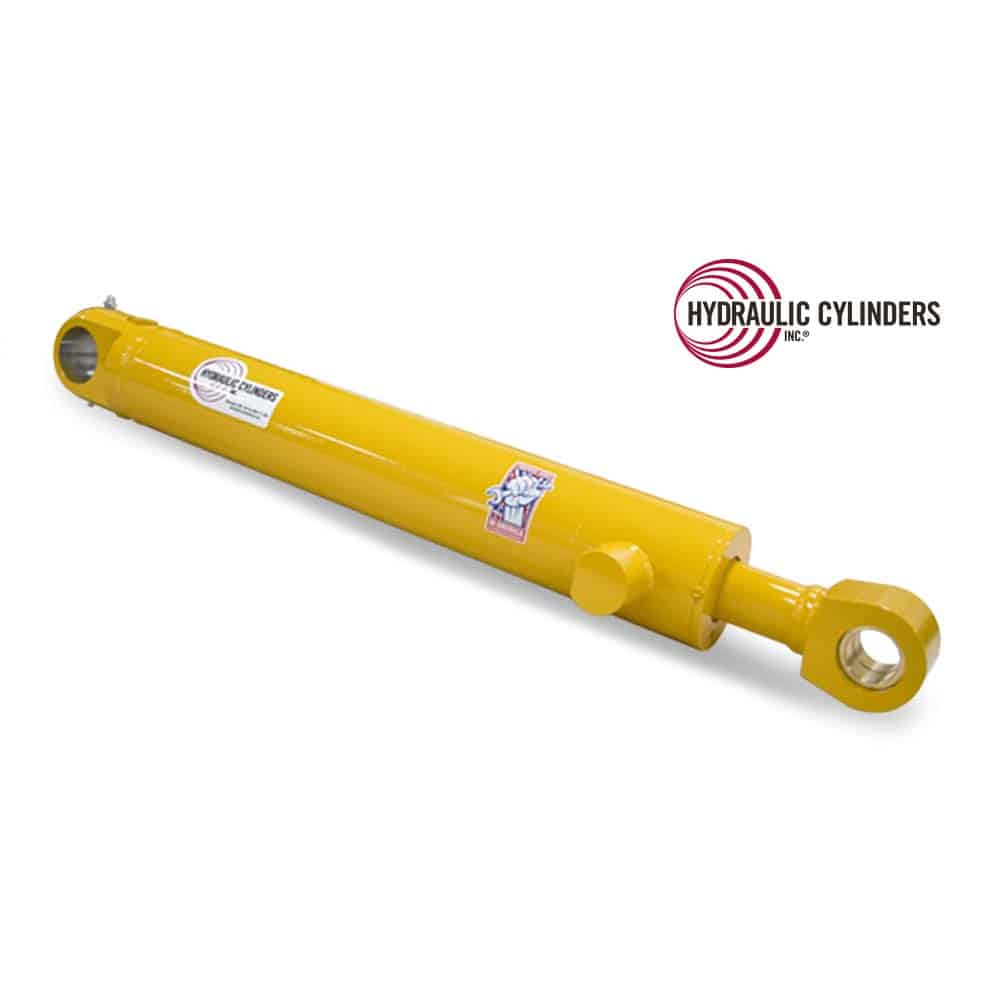

Replacement Hydraulic LH / RH Bucket Tilt Dump Cylinder for John Deere (PN: AH210329 LH / AH211461 RH) Skid Steer Models 280, 332, CT332
$1,550.00
Specifications for 1163271398
| Categories | Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader |
|---|---|
| Fits Manufacturer | John Deere |
| Models | John Deere 280, John Deere 332, John Deere CT332 |
| Function | Bucket Tilt |
| Type | Skid Steer/Compact Track Loader |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1163271398 |
|---|---|
| Weight | 67 lbs |
| Bore | 80mm |
|---|---|
| Rod | 45mm |
| Stroke | 18.125″ |
| Closed | 30.50″ |
| Open Extended Length | 48.625″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Lug |
| Base Pin Size | 62mm |
| Base Mount Width | 2.375″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 35mm |
| Rod Mount Width | 2.375″ |
| Extend Port/Plunger | -10 SAE ORB |
| Retract Port/Plunger | -10 SAE ORB |
Description
This right-hand universal hydraulic bucket tilt cylinder replaces John Deere OEM part number AH211461, compatible with skid steer models 280, 332, and CT332. Designed for precise bucket tilting, it ensures smooth operation and efficiency. Built to meet or exceed OEM standards, this component provides reliable performance and durability for demanding job site conditions.
80mm
45mm
18.125″
30.50″
48.625″
3000
Drilled Thru Lug
62mm
2.375″
Cross-Tube
35mm
2.375″
-10 SAE ORB
-10 SAE ORB
