S63DC-102-126 (Commercial / Parker) Replacement SAT Dump Trailer Cylinders

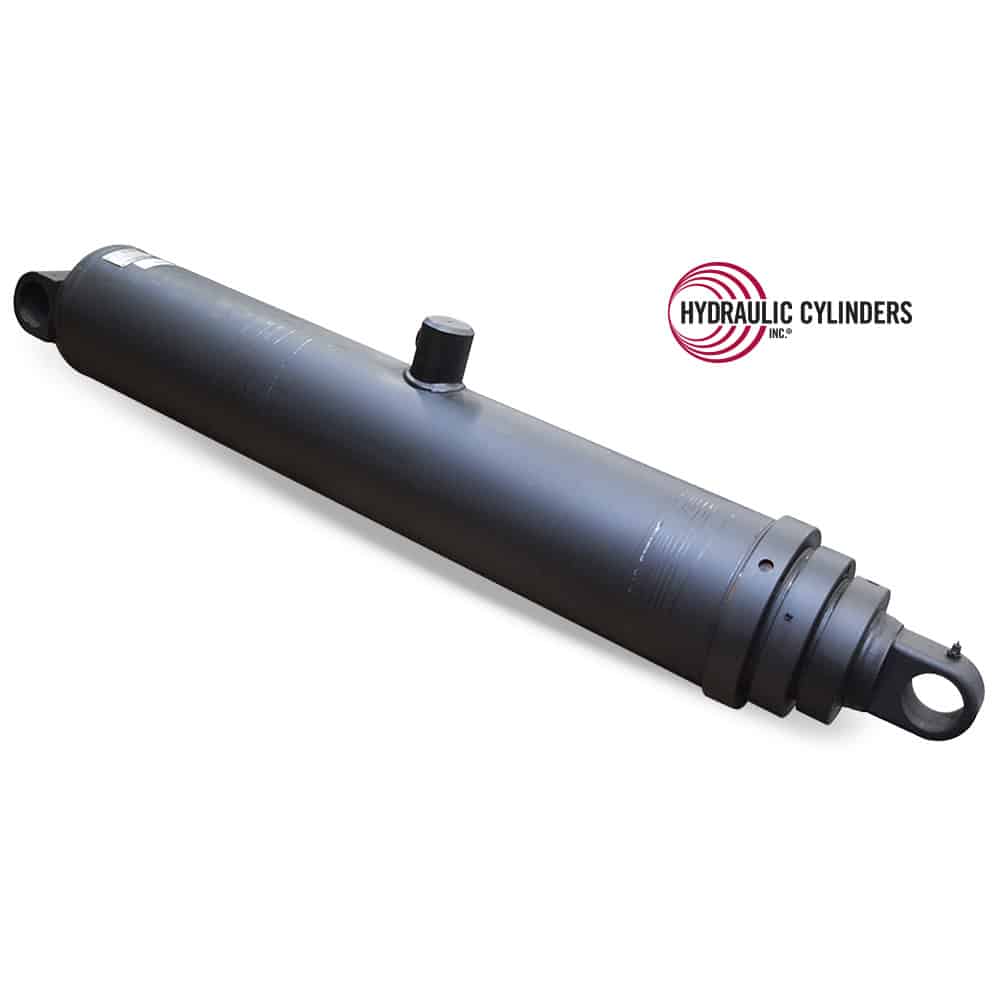

Heil Replacement SAT Dump Hoist Cylinder
  • Heil Replacement SAT Dump Hoist Cylinder
  • Heil Replacement SAT Dump Hoist Cylinder
  • Heil Replacement SAT Dump Hoist Cylinder
  • Heil Replacement SAT Dump Hoist Cylinder

$2,503.00

Specifications for 3771413326

Categories Dump (Telescopic), Dump Trucks/Traliers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Heil
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinder (SAT)
SKU 3771413326
Weight 315 lbs
Base End Mount Type

Cross-Tube
Base Mount Width

8.00″
Base Pin Size

2.37″
Closed

55.5″
Extend Port/Plunger

-16 SAE ORB 90D
Open Extended Length

181.5″
Rod End Mount Type

Drilled Thru Lug
Rod Mount Width

1.50″
Rod Pin Size

2.19″
Tele Largest Stage OD

6″
Telescopic Number of Stages

3
Telescopic Stroke

126″

Description

The following cylinders are compatible replacements for replacement part number 3771413326.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
001-2044 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3178 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3892 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3999 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-4142 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-6704 3771413326 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-2044 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3178 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3892 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3999 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-4142 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-6704 3771413326 Heil Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
125-2001 3771413326 Ox Bodies / Tbei Inc Ox Bodies / Tbei Inc — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1252001 3771413326 Ox Bodies / Tbei Inc Ox Bodies / Tbei Inc — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1HSAT000250014 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
246-7466 3771413326 Nexus / Caterpillar Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30251-63-126 3771413326 Hyco Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413096 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413128 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413214 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413284 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413326 3771413326 Commercial / Parker Heil, TBEI, Duraclass HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-10-127 3771413326 Custom Hoist Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-153-130 3771413326 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-171-125 3771413326 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-186-125 3771413326 Custom Hoist Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-202-125 3771413326 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-27-125 3771413326 Custom Hoist Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-553-130 3771413326 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-586-125 3771413326 Custom Hoist Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-624-125 3771413326 Custom Hoist Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-886-125 3771413326 Custom Hoist Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70251-63-126 3771413326 Hyco Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70611-63-126 3771413326 Hyco Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564164 3771413326 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 6-3-126-BU-SP 3771413326 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE6-3-126-BU-SP 3771413326 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
HPT63130 3771413326 Hercules Sealing Products, Hercules Bulldog Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-102-126 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-45-126 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-45G-126 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-87-126 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
SAT63DC126.00-CCDB-55.50 3771413326 Commercial / Parker Heil HPT63-130 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
